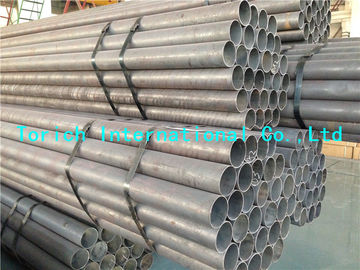

Seamless Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 For Gear Wheel / Shaft
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
TS16949
Model Number:
Alloy Steel Pipe
Trading Properties
Minimum Order Quantity:
5MT
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
6000MT/Month
Product Summary
Alloy Steel Tubes 41Cr4 40Cr DIN1.7035 Seamless Steel Tubes with alloy steel grade 41Cr440CrDIN1.7035 International equivalent: JIS: SCr440 ASTM: 5140 ISO: 41Cr4 41Cr4DIN1.7035: C:0.42 Si:0.25 Mn:0.70 Cr: 1.05 40Cr: C:0.37-0.44 Si:0.17-0.37 Mn:0.50-0.80 Cr:0.80-1.10 Seamless steel tubes with these ...
Product Details
Highlight:
alloy steel tube
,alloy steel seamless tube
Product Name::
Alloy Steel Tube
Application::
Gear Wheel , Axle , Shaft
Production Method:
Seamless Cold Drawn Or Cold Rolled
Grade:
41Cr4 40Cr DIN1.7035
Product Description
Alloy Steel Tubes 41Cr4 40Cr DIN1.7035
Seamless Steel Tubes with alloy steel grade 41Cr440CrDIN1.7035
International equivalent:
JIS: SCr440
ASTM: 5140
ISO: 41Cr4
41Cr4DIN1.7035:
C:0.42
Si:0.25
Mn:0.70
Cr: 1.05
40Cr:
C:0.37-0.44
Si:0.17-0.37
Mn:0.50-0.80
Cr:0.80-1.10
Seamless steel tubes with these steel grade could achieve good mechanical properites with quenching and tempering heat treatment (QT), could also heat treatment with annealed.
Application:
Gear wheel, axle, shaft, etc
International equivalent:
JIS: SCr440
ASTM: 5140
ISO: 41Cr4
41Cr4DIN1.7035:
C:0.42
Si:0.25
Mn:0.70
Cr: 1.05
40Cr:
C:0.37-0.44
Si:0.17-0.37
Mn:0.50-0.80
Cr:0.80-1.10
Seamless steel tubes with these steel grade could achieve good mechanical properites with quenching and tempering heat treatment (QT), could also heat treatment with annealed.
Application:
Gear wheel, axle, shaft, etc
Mechanical properties:
Tensile strength ≥980 Mpa
Yield strength ≥785 Mpa
Elongation ≥9
Hardness ≤229HBS
Tensile strength ≥980 Mpa
Yield strength ≥785 Mpa
Elongation ≥9
Hardness ≤229HBS
For Application of Shafts and Machinery Parts:
