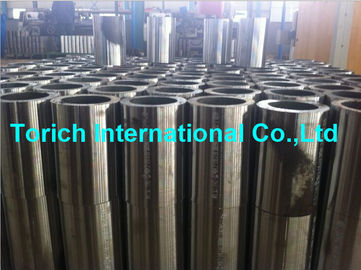

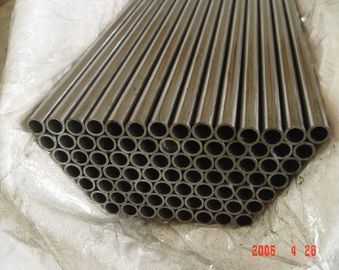

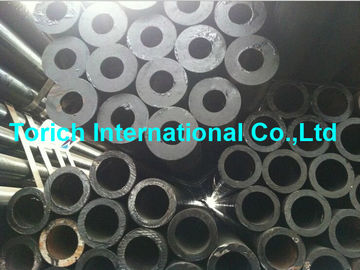

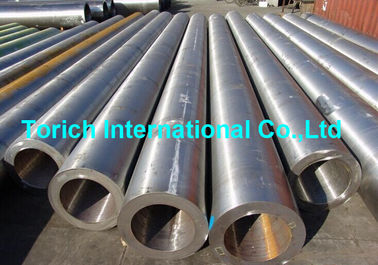

Custom Structural Alloy Steel Pipe 38CrMoAl ISO 41CrAlMo74 GB/T3077
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001:2008 , TS16949
Model Number:
Alloy Steel 38CrMoAl ISO 41CrAlMo74
Trading Properties
Minimum Order Quantity:
5MT
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
6000MT/Month
Product Summary
Alloy Steel Tube Grade GB/T3077 38CrMoAl ISO 41CrAlMo74 Structural steel tubes standard GB/T3077: 38CrMoAl ISO: 41CrAlMo74 GOST: 38X2MOA(38XMOA) DIN: 41CrAlMo7 34CrAlMo5 BS: 905M39 905M31 NF: 40CAD6.12 30CAD6.12 Chemical composition: C :0.35~0.42 Si:0.20~0.45 Mn:0.30~0.60 S :≤0.035 P :≤0.035 Cr:1.35...
Product Details
Highlight:
alloy steel tube
,seamless alloy steel pipe
Product Name::
Alloy Steel Tube
Grade::
GB/T3077 , 38CrMoAl , ISO41CrAlMo74
Material:
Alloy Steel
Production:
Hot Finished And Cold Finished
Product Description
Alloy Steel Tube Grade GB/T3077 38CrMoAl ISO 41CrAlMo74 Structural steel tubes standard
GB/T3077: 38CrMoAl
ISO: 41CrAlMo74
GOST: 38X2MOA(38XMOA)
DIN: 41CrAlMo7 34CrAlMo5
BS: 905M39 905M31
NF: 40CAD6.12 30CAD6.12
Chemical composition:
C :0.35~0.42
Si:0.20~0.45
Mn:0.30~0.60
S :≤0.035
P :≤0.035
Cr:1.35~1.65
Ni:≤0.030
Cu:≤0.030
Mo:0.15~0.25
Tensile strength: σb (MPa):≥980(100)
Yield strength:σs (MPa):≥835(85)
Elongation:δ5 (%):≥14
ψ (%):≥50
Impact: Akv (J):≥71
αkv (J/cm2):≥88(9) :
ISO: 41CrAlMo74
GOST: 38X2MOA(38XMOA)
DIN: 41CrAlMo7 34CrAlMo5
BS: 905M39 905M31
NF: 40CAD6.12 30CAD6.12
Chemical composition:
C :0.35~0.42
Si:0.20~0.45
Mn:0.30~0.60
S :≤0.035
P :≤0.035
Cr:1.35~1.65
Ni:≤0.030
Cu:≤0.030
Mo:0.15~0.25
Tensile strength: σb (MPa):≥980(100)
Yield strength:σs (MPa):≥835(85)
Elongation:δ5 (%):≥14
ψ (%):≥50
Impact: Akv (J):≥71
αkv (J/cm2):≥88(9) :
Hardness≤229HB:30mm
