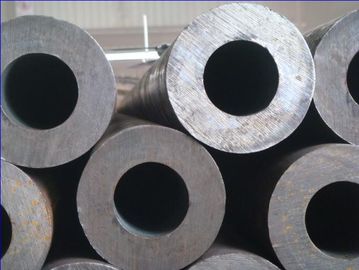

10CrMo9-10 11CrMo9-10 12CrMo9-10 Alloy Steel Seamless Pipe DIN17175
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001:2008
Trading Properties
Minimum Order Quantity:
5MT
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
7000MT/Month
Product Summary
Alloy steel 10CrMo910 11CrMo910 12CrMo910 DIN17175 EN10216-2 10CrMo9-10 11CrMo9-10 12CrMo-910 For Application of Boilers, Heat Exchangers, Steam Boilers, Pressure Vessels Alloy Steel 10CrMo910 12CrMo910 DIN17175 EN10216-2 standard 10CrMo910: C: 0.08-0.15 Si: 0.50 Mn: 0.40-0.70 P: 0.025 S: 0.020 Cr: ...
Product Details
Highlight:
alloy steel seamless tube
,seamless alloy steel pipe
Product Name::
Alloy Steel Tube
Product Method::
Hot Rolled , Cold Drawing , Cold Rolling
Application::
For Boilers , Heat Exchangers , Steam Boilers , Pressure Vessels
Standard::
DIN17175 , EN10216-2
Product Description
Alloy steel 10CrMo910 11CrMo910 12CrMo910 DIN17175 EN10216-2 10CrMo9-10 11CrMo9-10 12CrMo-910
For Application of Boilers, Heat Exchangers, Steam Boilers, Pressure Vessels
Alloy Steel 10CrMo910 12CrMo910 DIN17175 EN10216-2 standard
10CrMo910:
C: 0.08-0.15
Si: 0.50
Mn: 0.40-0.70
P: 0.025
S: 0.020
Cr: 2.0-2.5
Mo: 0.9-1.2
11CrMo910:
C: 0.08-0.15
Si: 0.15-0.40
Mn: 0.30-0.70
P: 0.025
S: 0.025
Cr: 2.0-2.5
Mo: 0.9-1.2
12CrMo910:
C: 0.10-0.15
Si: 0.30
Mn: 0.30-0.80
P: 0.015
S: 0.015
Cr: 2.0-2.5
Mo: 0.9-1.1
Production method:
1. Hot Rolled
2. Cold Drawing
3. Cold Rolling
Themal Heattreatments:
1. A-Annealed
2. N-Normalized
3. QT-Quenched and Tempered
4. SR-Stress Relieved or Finish Anneal
Production method:
1. Hot Rolled
2. Cold Drawing
3. Cold Rolling
Themal Heattreatments:
1. A-Annealed
2. N-Normalized
3. QT-Quenched and Tempered
4. SR-Stress Relieved or Finish Anneal
