ISO 9001:2008 Cold Formed Special Steel Pipe , Welded Carbon Steel Square Tube
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001:2008 , TS16949 , KR , RINA
Trading Properties
Minimum Order Quantity:
5MT
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
7000MT/Month
Product Summary
Steel Square Tubes-Steel Square Pipes , Special Steel Pipe Standard: ASTM A500 Steel Square Tubes-Steel Square Pipes Cold-Formed Welded and Seamless Carbon Structural Tubing in Rounds and Shapes Applications: for construction of bridges, and buildings, and for general strcutrual purposes Size range: ...
Product Details
Highlight:
alloy steel seamless pipe
,structural steel square tubing
Dimension::
20-20 To 500-500mm*1-24mm*12000
Application::
For Construction Of Bridges , And Buildings , And For General Strcutrual Purposes
Standard::
ASTM A500
Section Shape::
Square , Rectangle
Product Description

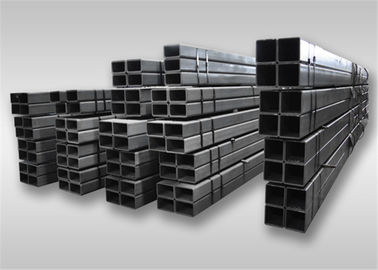

Steel Square Tubes-Steel Square Pipes , Special Steel Pipe
Standard: ASTM A500 Steel Square Tubes-Steel Square Pipes
Cold-Formed Welded and Seamless Carbon Structural Tubing in Rounds and Shapes
Applications: for construction of bridges, and buildings, and for general strcutrual purposes
Size range:
Square tubes O.D. :20-20 to 500-500mm W.T.:1-24mm L:max12000mm
Rectangle tubes O.D. :20-30 to 400-600mm W.T.:1-24mm L:max12000mm
| Tensil requirements | ||||
| Round Structural Tubing | ||||
| GradeA | Grade B | Grade C | Grade D | |
| Tensil strengths,min,psi(Mpa) | 45 (310) | 58(400) | 62(425) | 58(400) |
| Yield strength,min,psi(Mpa) | 33(230) | 42(290) | 46(315) | 36(250) |
| Elongation in 2 in.(50mm) min,% | 25 | 23 | 21 | 23 |
| Shaped Structural Tubing | ||||
| GradeA | Grade B | Grade C | Grade D | |
| Tensil strengths,min,psi(Mpa) | 45 (310) | 58(400) | 62(425) | 58 |
| Yield strength,min,psi(Mpa) | 39(270) | 46(315) | 50(315) | 36(250) |
| Elongation in 2 in.(50mm) min,% | 25 | 23 | 21 | 23 |
