ASTM A519 1035 Seamless Carbon And Alloy Steel Mechanical Tubing For Hydraulic
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5 Ton | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | Packing in wooden, hexagonal box or other seaworthy ways | Delivery Time : | 30 days |
| Payment Terms : | T/T L/C D/P D/A WesternUnion MoneyGram Others | Supply Ability : | 60000 Ton/Year |
| Place of Origin: | China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001 ISO 14001 EN 10204.3.1 TS 16949 DNV CCS | Model Number: | BS6323-1 |
|
Detail Information |
|||
| Applications: | For Auto Industry / For Machinery Use/mechanical And General Engineering Purposes | Outside Diameter: | 6-350mm |
|---|---|---|---|
| Wall Thickness: | 1-50mm | Length: | 12000mm Below |
| High Light: | precision stainless steel tubing,seamless carbon steel tube |
||
Product Description

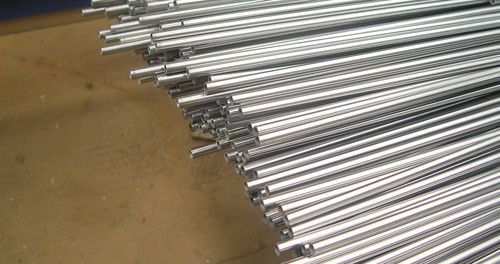

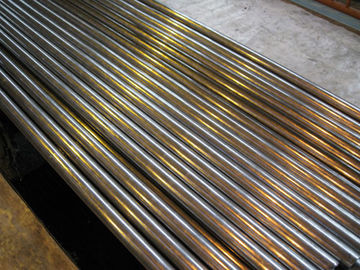

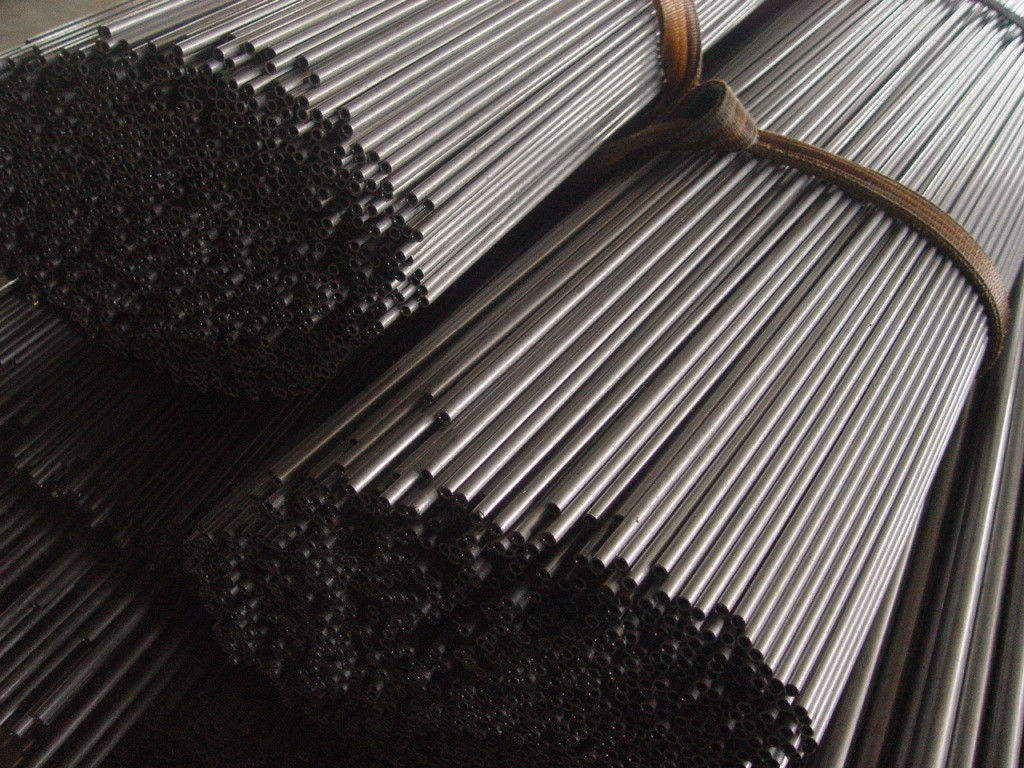

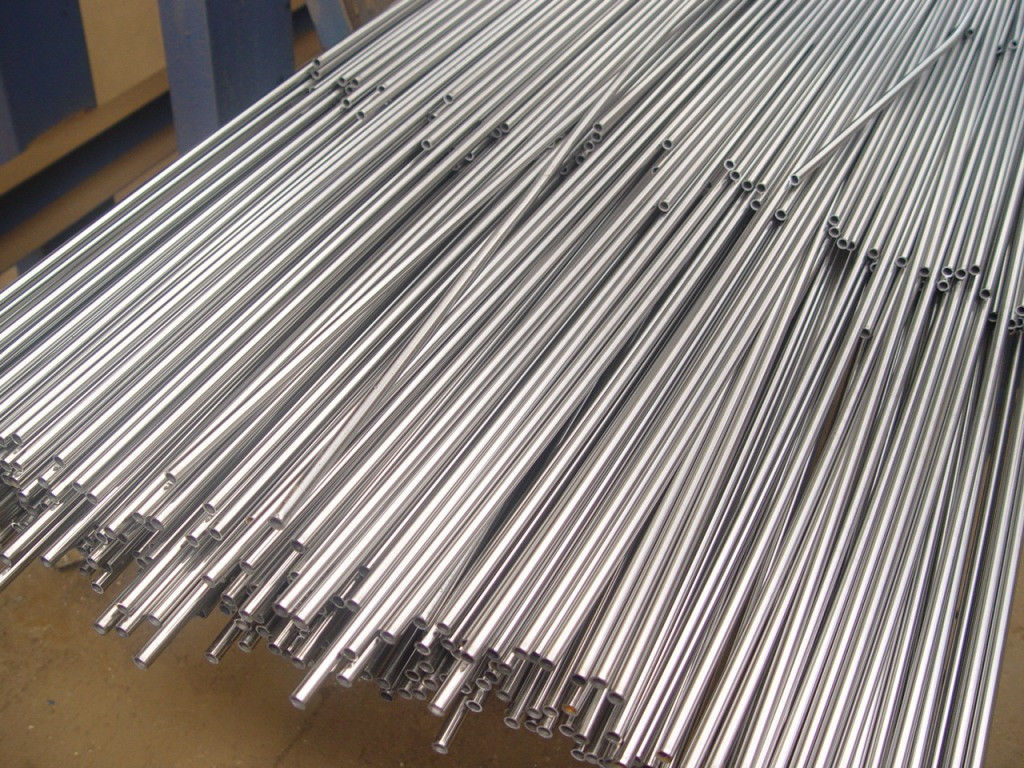

BS6323-1 Seamless Steel Tubes - Welded Steel Tubes
Applications: for Auto Industry / for Machinery Use/Mechanical and General Engineering Purposes
Size range: O.D.:6-350mm W.T.:1-50mm L:max12000mm
Steel Grade and Chemical Compositions:
| chemical element | Mn | P | S | Cr | Mo |
| steel grade | max | max | max | ||
| HFW2 | 0.7 | 0.05 | 0.05 | ||
| HFW3 | 0.9 | 0.05 | 0.05 | ||
| HFW4 | 1.2 | 0.05 | 0.05 | ||
| HFW5 | 1.5 | 0.05 | 0.05 | ||
| HFS3 | 0.9 | 0.05 | 0.05 | ||
| HFS4 | 1.2 | 0.05 | 0.05 | ||
| HFS5 | 1.5 | 0.05 | 0.05 | ||
| HFS8 | 0.5-0.9 | 0.05 | 0.05 | ||
| CFS 3 | 0.9 | 0.05 | 0.05 | ||
| CFS 3A | 0.6-1.00 | 0.05 | 0.05 | ||
| CFS 4 | 1.2 | 0.05 | 0.05 | ||
| CFS 5 | 1.5 | 0.05 | 0.05 | ||
| CFS 6 | 0.5-0.9 | 0.05 | 0.05 | ||
| CFS 7 | 1.2-1.5 | 0.05 | 0.05 | ||
| CFS 8 | 0.5-0.9 | 0.05 | 0.05 | ||
| CFS 9 | 1.5 | 0.05 | 0.05 | 0.15-0.25 | |
| CFS 10 | 0.8 | 0.05 | 0.05 | 0.80-1.2 | 0.15-0.3 |
| CFS 11 | 1 | 0.05 | 0.05 | 0.80-1.2 | 0.15-0.3 |
Mechanical properties at room temperature
| steel grade | HF | BKW | BKS | (+N)NBK | BKW | ||||||||||
| Re min Mpa | Rm min Mpa | A% | Re min Mpa | Rm min Mpa | A% | Re min Mpa | Rm min Mpa | A% | Re min Mpa | Rm min Mpa | A% | Re min Mpa | Rm min Mpa | A% | |
| HFW2 | 195 | 320 | 25 | ||||||||||||
| HFW3 | 215 | 360 | 24 | ||||||||||||
| HFW4 | 235 | 410 | 22 | ||||||||||||
| HFW5 | 340 | 490 | 20 | ||||||||||||
| HFS3 | 215 | 360 | 24 | ||||||||||||
| HFS4 | 235 | 410 | 22 | ||||||||||||
| HFS5 | 340 | 490 | 20 | ||||||||||||
| HFS8 | 340 | 540 | 18 | ||||||||||||
| CFS 3 | 360 | 450 | 6 | 280 | 400 | 9 | 170 | 340 | 26 | 215 | 360 | 24 | |||
| CFS 3A | 360 | 450 | 6 | 280 | 400 | 9 | 170 | 340 | 26 | 215 | 360 | 24 | |||
| CFS 4 | 415 | 520 | 5 | 315 | 450 | 8 | 200 | 400 | 24 | 235 | 410 | 22 | |||
| CFS 5 | 480 | 600 | 4 | 385 | 550 | 6 | 340 | 490 | 20 | ||||||
| CFS 6 | 470 | 590 | 5 | 350 | 540 | 7 | 300 | 440 | 22 | 280 | 460 | 21 | |||
| CFS 7 | 560 | 700 | 4 | 460 | 650 | 7 | |||||||||
| CFS 8 | 575 | 720 | 4 | 470 | 670 | 6 | 300 | 510 | 20 | 340 | 540 | 18 | |||
| CFS 9 | 575 | 720 | 4 | 470 | 670 | 6 | |||||||||
| CFS 10 | 575 | 720 | 4 | 470 | 670 | 6 | |||||||||
| CFS 11 | 575 | 720 | 4 | - | 670 | 6 | |||||||||
Note: Special steel grade is also available, according to customer request.
