Railway Constructions Cold Formed Seamless Steel Square Tubing ASTM A500

Basic Properties
Place of Origin: China
Brand Name: Torich
Certification: ISO 9001:2008 , TS16949 , ABS , CCS , DNV , GL
Model Number: Seamless Square and Rectangle
Trading Properties
Minimum Order Quantity: 5MT
Price: negotiable
Payment Terms: L/C, T/T
Supply Ability: 7000MT/Month
Tags

alloy steel seamless pipe

rectangular steel pipe

structural steel square tubing
Product Summary
Seamless Steel Square Tubing for Railway Constructions , Special Steel Pipe Standard: ASTM A500 Steel Rectangle Tubing Cold-Formed Welded and Seamless Carbon Structural Tubes in Rounds and Shapes Applications: for construction of bridges, and buildings, and for general strcutrual purposes Size range...

Product Details

Highlight:

structural steel square tubing

,

rectangular steel pipe
Dimension:: 20-20 To 500-500mm*1-24mm*12000mm
Steel Grade:: GradeA , GradeB , GradeC , GradeD
Application:: For Construction Of Bridges, And Buildings, And For General Strcutrual Purposes
Standard:: ASTM A500
Product Description

Seamless Steel Square Tubing for Railway Constructions , Special Steel Pipe





Standard: ASTM A500  Steel Rectangle Tubing
Cold-Formed Welded and Seamless Carbon Structural Tubes in Rounds and Shapes

Applications:

for construction of bridges, and buildings, and for general strcutrual purposes

Size range:

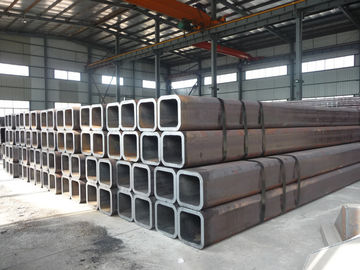

Square tubes  O.D. :20-20 to 500-500mm    W.T.:1-24mm      L:max12000mm
Rectangle tubes  O.D. :20-30 to 400-600mm    W.T.:1-24mm      L:max12000mm



Tensil requirements
                                                        Round Structural Tubing
  GradeA Grade B Grade C Grade D
Tensil strengths,min,psi(Mpa) 45 (310) 58(400) 62(425) 58(400)
Yield strength,min,psi(Mpa) 33(230) 42(290) 46(315) 36(250)
Elongation in 2 in.(50mm) min,% 25 23 21 23

                                                       Shaped Structural Tubing
  GradeA Grade B Grade C Grade D
Tensil strengths,min,psi(Mpa) 45 (310) 58(400) 62(425) 58
Yield strength,min,psi(Mpa) 39(270) 46(315) 50(315) 36(250)
Elongation in 2 in.(50mm) min,% 25 23 21 23
