ASTM A519 +N , +SRA , Seamless Carbon Steel Pipe with High Precision SSID

ASTM A519 +N , +SRA , Seamless Carbon Steel Pipe with High Precision SSID

Brand Name: TORICH
Model Number: ASTM A519
MOQ: 5 Ton
Price: negotiable
Payment Terms: T/T L/C D/P D/A WesternUnion MoneyGram Others
Supply Ability: 60000 Ton/Year
Detail Information
Place of Origin:
China
Certification:
ISO 9001-2008 ISO 14001 TS 16949 TUV CCS
Material:
Carbon And Alloy Steel
Steel Grade:
1008 1010 1018 1026 Etc
Size Range:
O.D.:6-350mm W.T.:1-50mm L:max12000mm
Applications:
For Machinery, Mechanical Engineer
Shape:
Round
Manufacture Technique:
Seamless Cold Drawn And Cold Rolling
Deliver Condition:
A.W.H.R. A.W.C.R. S.D.C.R. M.D. S.S.I.D.
Characteristic:
Mechanical Tubing
Packaging Details:
Packing in wooden, hexagonal box or other seaworthy ways
Supply Ability:
60000 Ton/Year
Highlight:

seamless steel pipe

,

seamless carbon steel tube

Product Description

Seamless Carbon and Alloy Steel Mechanical Tubing ASTM A519


Size range: O.D.:6-350mm W.T.:1-50mm L:max12000mm



Standard: ASTM A519


Applications: for Machinery, Mechanical engineer



                                       Steel Grade and Chemical Compositions:
Steel C Mn P S Si Cr Mo
Grade max   max max max min
1008 0.10 0.30-0.50 0.040 0.050
1010 0.08-0.13 0.30-0.60 0.040 0.050
1018 0.15-0.20 0.60-0.90 0.040 0.050
1020 0.18-0.23 0.30-0.60 0.040 0.050
1026 0.22-0.28 0.60-0.90 0.040 0.050
1035 0.32-0.38 0.60-0.90 0.040 0.050
1045 0.43-0.50 0.60-0.90 0.040 0.050
4130 0.28-0.33 0.40-0.60 0.040 0.040 0.15-0.35 0.80-1.10 0.15-0.25
4140 0.38-0.43 0.75-1.00 0.040 0.040 0.15-0.35 0.80-1.10 0.15-0.25



Grade condition Ultimat Yield Elongation Rockwell
    Strength Strength   Hardness
    ksi      Mpa ksi      Mpa % B Scale
1020 HR 50        345 32        221 25 55
  CW 70        483 60        414 5 75
  SR 65        448 50        345 10 72
  A 48        331 28        193 30 50
  N 55        379 34        234 22 60
1025 HR 55        379 35        241 25 60
  CW 75        517 65        448 5 80
  SR 70        483 55        379 8 75
  A 53        365 30        207 25 57
  N 55        379 36        248 22 60
1035 HR 65        448 40        276 20 72
  CW 85        586 75        517 5 88
  SR 75        517 65        448 8 80
  A 60        414 33        228 25 67
  N 65       448 40        276 20 72
1045 HR 75        517 45        310 15 80
  CW 90        621 80        552 5 90
  SR 80        552 70        483 8 85
  A 65        448 35        241 20 72
  N 75       517 48        331 15 80
4130 HR 90         621 70        483 20 89
  SR 105        724 85        586 10 95
  A 75        517 55        379 30 81
  N 90        621 60       414 20 89
4140 HR 120        855 90        310 15 100
  SR 120        855 100        689 10 100
  A 80        552 60        414 25 85
  N 120       855 90        621 20 100


Deliver condition:

1. A.W.H.R.    "as welded" from hot-rolled steel
2. A.W.C.R.      "as welded" from cold-rolled steel
3. S.D.C.R.       "sink-drawn", cold-rolled steel
5. M.D.              mandrel drawn
6. S.S.I.D.          special smooth inside diameter

Please specify the delivery condition and heat treatment requirement when sending the enquiry.

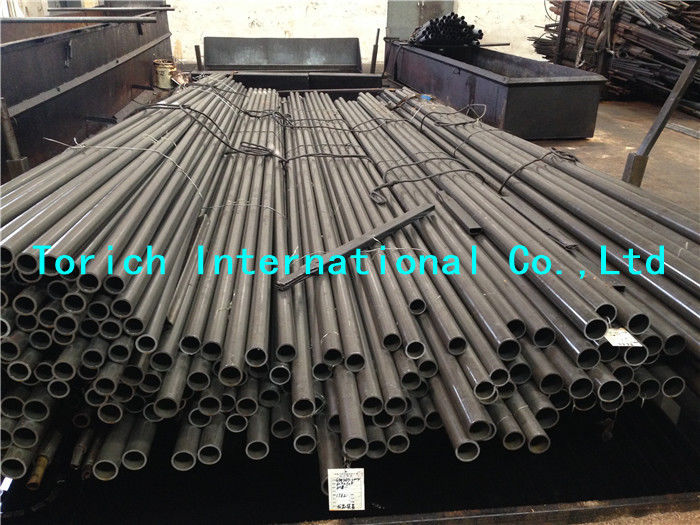

ASTM A519 +N , +SRA , Seamless Carbon Steel Pipe with High Precision SSID 0  ASTM A519 +N , +SRA , Seamless Carbon Steel Pipe with High Precision SSID 1

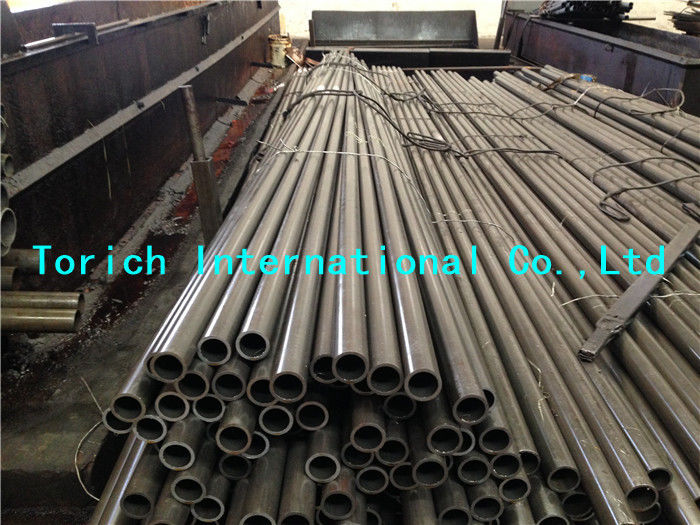

ASTM A519 +N , +SRA , Seamless Carbon Steel Pipe with High Precision SSID 2 ASTM A519 +N , +SRA , Seamless Carbon Steel Pipe with High Precision SSID 3
