Cold Drawn Precision Seamless Steel Tubes GOST9567 10 , 20 , 35 , 45 , 40x
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
TS16949 , KR , RINA , DNV , GL , PED
Model Number:
GOST 9567
Trading Properties
Minimum Order Quantity:
5MT
Price:
USD 600-900
Supply Ability:
6000MT/Month
Product Summary
Cold Drawn Precision Seamless Steel Tubes GOST9567 10 , 20 , 35 , 45 , 40x GOST9567 Precision steel tubes Precision Seamless Steel Pipe Size range: O.D.:6-168mm W.T.:1-15mm L:max12000mm Precision Seamless Steel Tube Applications: Automobile, Machinery Engineering, Autoparts etc. Chemical composition...
Product Details
Highlight:
precision seamless pipe
,precision pipes and tubes
Dimension::
6-168mm*1-15mm*12000mm
Application::
Automobile, Machinery Engineering, Autoparts Etc.
Grade::
10 , 20 , 35 , 45 , 40x
Section Shape::
Round
Product Description
Cold Drawn Precision Seamless Steel Tubes
GOST9567 10 , 20 , 35 , 45 , 40x
GOST9567 Precision steel tubes
Precision Seamless Steel Pipe Size range:
O.D.:6-168mm W.T.:1-15mm L:max12000mm
Precision Seamless Steel Tube Applications:
Automobile,
Machinery Engineering,
Autoparts etc.
Chemical composition(%,max)
| Steel Grade | C | Si | Mn | Cr | Ni | Mo | S | P | Cu |
| 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | 0.15 | 0.3 | - | - | - | - |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.25 | 0.25 | - | 0.03 | 0.025 | 0.3 |
| 35 | 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | 0.25 | 0.3 | - | 0.04 | 0.035 | 0.3 |
| 45 | 0.42--0.45 | 0.17-0.37 | 0.50-0.80 | 0.25 | - | - | - | - | - |
| 40X | 0.36-0.44 | 0.17-0.37 | 0.50-0.80 | 0.80-1.10 | 0.3 | - | 0.035 | 0.035 | 0.3 |
| 30ХГСА | 0.28-0.34 | 0.90-1.20 | 0.80-1.10 | 0.80-1.10 | 0.3 | - | 0.005 | 0.025 | - |
Mechanical composition:
| Steel grade | Tensile strength, N/mm2 (min) | Yield strength, N/mm 2 (min) | Elongation, %(min) |
| 10 | 343 | 206 | 24 |
| 20 | 412 | 245 | 21 |
| 35 | 510 | 294 | 17 |
| 45 | 589 | 323 | 14 |
| 40X | 618 | - | 14 |
| 30ХГСА | 491 | - | 18 |

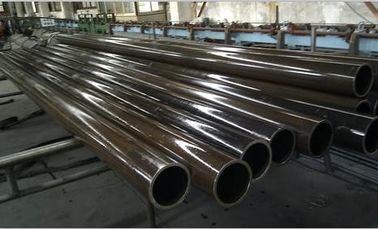

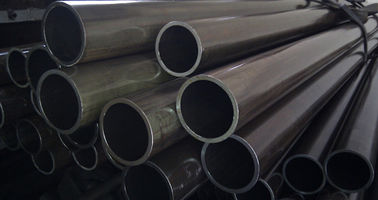

Carbon Steel Precision Tubes Under Measure Inspection, Surface Inspection and Packing:

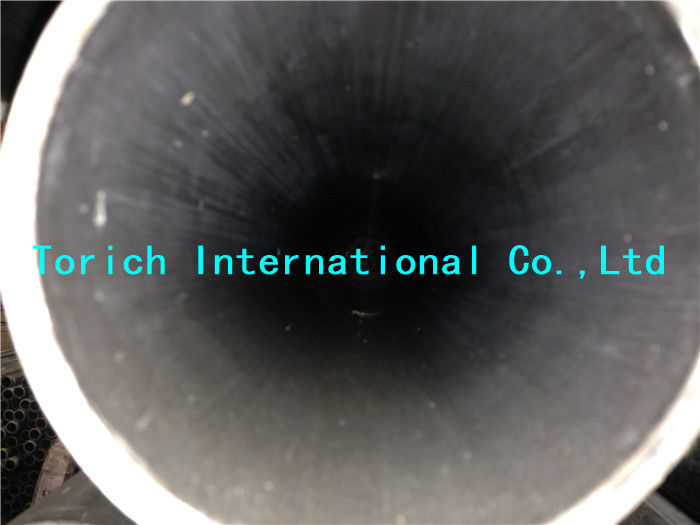

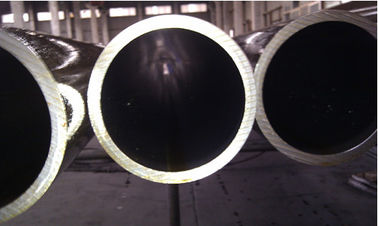

High Precision Seamless Steel Pipe with very high ID tolerance and ID smoothness:
Packing and Delivery for precision seamless steel tube:
