Electric Resistance Welded Steel Tube ASTM A513 , Drawn Over Mandrel Steel Tubing

Basic Information
Place of Origin: China
Brand Name: TORICH
Certification: ISO 9001-2008 ISO 14001 EN 10204.3.1 DNV
Model Number: ASTM A513
Minimum Order Quantity: 5 TONS
Price: 600-1200USD/TONS
Packaging Details: Antirust Oil in cartons with pallet
Delivery Time: 35-60 work days
Supply Ability: 20000 tons per year
Detail Information
Material: Carbon And Alloy Steel Steel Grade: 1010 1020 4130 4140 Etc
Standard: ASTM A513 Size Range: O.D.:6-350mm W.T.:1-12.5mm L:max12000mm
Applications: Machinery, Mechanical Engineer, Automotive Parts Production Method: Drawn Over A Mandrel (DOM)
Delivery Condition: No Annealed, Stress Relieved Annealed , Normalized Or Annealed
High Light:

welded steel pipe

,

welding steel tubing


Product Description

Welded Steel Tube ASTM A513 DOM Steel Tubing Cutting to Short Lengths





Standard: ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing
Applications: for Machinery, Mechanical engineer, Automotive Parts


Size range: O.D.:6-350mm     W.T.:1-12.5mm      L:max12000mm



Cutting and Chamfering:

Cutting and chamfering to specified lengths according to Customers requirement and drawings.



Packing:

Anti-rust oil protection, In Cartons with pallet loading.



                                       Steel Grade and Chemical Compositions:
Steel  Grade C Mn P S Si Cr Mo
max   max max max min
1008 0.10  0.5 0.035  0.035
1010 0.08-0.13 0.30-0.60 0.035  0.035
1018 0.14-0.20 0.30-0.60 0.035  0.035
1020 0.17-0.23 0.30-0.60 0.035  0.035
1026 0.22-0.28 0.60-0.90 0.035  0.035
1035 0.31-0.38 0.60-0.90 0.035  0.035
4130 0.28-0.33 0.40-0.60 0.035  0.035  0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035  0.035  0.15-0.35 0.80-1.10 0.15-0.25



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    As-Welded Tubing
1008 30     207 42     290 15 50
1010 32     221 45     310 15 55
1020 38     262 52     359 12 62
1026 45     310 62     427 12 68
1035 50     345 66     455 10 75
4130 55     379 72     496 10 80
4140 70     485 90     621 10 85



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    Sink-Drawn Tubing
1008 38     262 48     331 8 65
1010 40     276 50     345 8 65
1020 50     345 60     414 8 70
1026 55     379 70     483 7 77
1035 70     483 80     552 7 82
4130 50     345 70     483 20 100
4140 65     448 90     621 20 105



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    Normalizing Tubing
1008 23     159 38     262 30   65
1010 25     172 40     276 30   65
1020 35     207 50     345 25   75
1026 40     276 60     414 25   80
1035 45     310 65     448 20   85



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    Mandrel-Drawn Tubing
1008 50     345 60     414 5   73
1010 50     345 60     414 5   73
1020 60     414 70     483 5   80
1026 70     483 80     552 5   85
1035 80     552 90     621 5   90
4130 85     586 95     655 5   90
4140 100    690 110     758 5   90



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    Mandrel-Drawn Stress-Relieved Tubing
1008 45     310 55     379 12   68
1010 45     310 55     379 12   68
1020 55     379 65    448 10   75
1026 65     448 75    517 10   80
1035 75     517 85    586 10   85
4130 80     552 90     621 10   87
4140 95     655 105     724 10   90

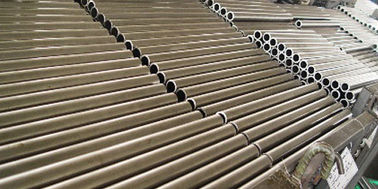

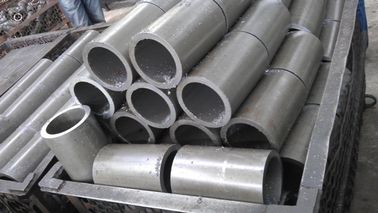

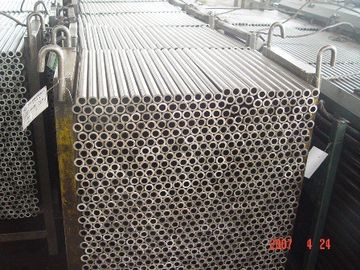

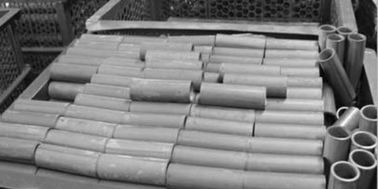

Packing and Shipment.

Electric Resistance Welded Steel Tube ASTM A513 , Drawn Over Mandrel Steel Tubing 0  Electric Resistance Welded Steel Tube ASTM A513 , Drawn Over Mandrel Steel Tubing 1



Electric Resistance Welded Steel Tube ASTM A513 , Drawn Over Mandrel Steel Tubing 2  Electric Resistance Welded Steel Tube ASTM A513 , Drawn Over Mandrel Steel Tubing 3



SUPPLEMENTARY REQUIREMENTS:

Tubes for Cylinders

Cleanup by Centerless Grinding

Cleanup by Machining

Special Smooth Inside Surface.

Hardness and Tensile requirement

Destructive Weld Tests

Hydrostatic Test Round Tubing

Nondestructive Electric Test



Reference documents:

ASTM Standards:



ASTM A 370   Test Methods and Definitions for Mechanical Testing of Steel Products



E 1806            Practice for SampIing Steel and Iron for Determination of Chemical Composition



E 213              Practice for Ultrasonic Examination of Metal Pipe and Tubing



E 273              Practice for Ultrasonic Examination of Longitudinal Welded Pipe and Tubing



E309               Practice for Eddy-Current Examination of Steel Tubular Products Using Magnetic

                       Saturation



E570               Practice for Flux Leakage Examination of Ferromagnetic Steel Tubular Products



Milliltary Standards:

MIL- STD-129  Marking for Shipment and Storage

MIL- STD-163  Steel Mill Products Preparation for Shipment and Storage
