Mechanical Cold Drawn Welded Steel Tube , ASTM A513 DOM Seamless Carbon Steel Tube

Basic Properties
Place of Origin: China
Brand Name: TORICH
Certification: ISO 9001-2008 , TS 16949 , EN 10204.3.1 , DNV etc
Model Number: ASTM A513
Trading Properties
Minimum Order Quantity: 5 tons
Price: 600-1200USD per ton
Supply Ability: 60000tons annually
Tags

electric resistance welded steel tube

welded steel pipe

welding steel tubing
Product Summary
Welded Steel Pipes Tubes , ASTM A513 DOM tubing , Cutting Length Standard: ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Cutting to specified length by customer. Applications: for Machinery, Mechanical Engineer, Automotive Parts Size range: O.D.:6-350mm W.T.:1-12.5mm ...

Product Details

Highlight:

welded steel pipe

,

electric resistance welded steel tube
Steel Grade: 1010 1080 1020 Etc
Dimension: 6-350mm*1-12.5mm *1200mm （max）
Applications: For Machinery, Automotive Parts Industry
Material: Carbon And Alloy
Production Method: Electric-Resistance-Welded And Cold Drawn
Shap: Round
Delivery Condition: Sink-drawn, Normalizing,mandrel-drawn
Product Description

Welded Steel Pipes Tubes , ASTM A513 DOM tubing  ,  Cutting Length





Standard: ASTM A513

Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing

Cutting to specified length by customer.


Applications: for Machinery, Mechanical Engineer, Automotive Parts


Size range: O.D.:6-350mm     W.T.:1-12.5mm      L:max12000mm



Advantage:

Cutting For Customer

Good Packing with Pallet

Better Concentricity





                                       Steel Grade and Chemical Compositions:
Steel  Grade C Mn P S Si Cr Mo
max   max max max min
1008 0.10  0.5 0.035  0.035
1010 0.08-0.13 0.30-0.60 0.035  0.035
1018 0.14-0.20 0.30-0.60 0.035  0.035
1020 0.17-0.23 0.30-0.60 0.035  0.035
1026 0.22-0.28 0.60-0.90 0.035  0.035
1035 0.31-0.38 0.60-0.90 0.035  0.035
4130 0.28-0.33 0.40-0.60 0.035  0.035  0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035  0.035  0.15-0.35 0.80-1.10 0.15-0.25



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    As-Welded Tubing
1008 30     207 42     290 15 50
1010 32     221 45     310 15 55
1020 38     262 52     359 12 62
1026 45     310 62     427 12 68
1035 50     345 66     455 10 75
4130 55     379 72     496 10 80
4140 70     485 90     621 10 85



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    Sink-Drawn Tubing
1008 38     262 48     331 8 65
1010 40     276 50     345 8 65
1020 50     345 60     414 8 70
1026 55     379 70     483 7 77
1035 70     483 80     552 7 82
4130 50     345 70     483 20 100
4140 65     448 90     621 20 105



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    Normalizing Tubing
1008 23     159 38     262 30   65
1010 25     172 40     276 30   65
1020 35     207 50     345 25   75
1026 40     276 60     414 25   80
1035 45     310 65     448 20   85



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    Mandrel-Drawn Tubing
1008 50     345 60     414 5   73
1010 50     345 60     414 5   73
1020 60     414 70     483 5   80
1026 70     483 80     552 5   85
1035 80     552 90     621 5   90
4130 85     586 95     655 5   90
4140 100    690 110     758 5   90



Steel  Grade Yield Ulitmate Elongation RB RB
Strength Strength % min max
  ksi Mpa ksi Mpa
    Mandrel-Drawn Stress-Relieved Tubing
1008 45     310 55     379 12   68
1010 45     310 55     379 12   68
1020 55     379 65    448 10   75
1026 65     448 75    517 10   80
1035 75     517 85    586 10   85
4130 80     552 90     621 10   87
4140 95     655 105     724 10   90

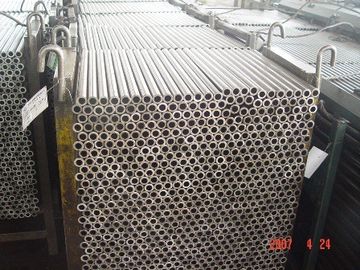

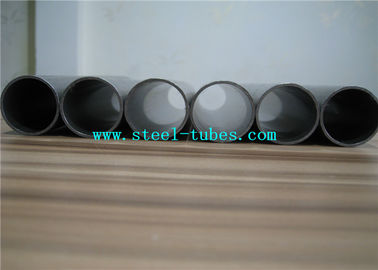

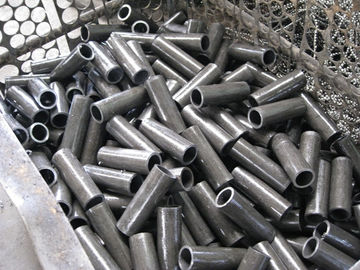

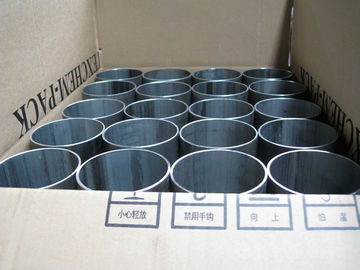

Cutting and Carton Packing:

Mechanical Cold Drawn Welded Steel Tube , ASTM A513 DOM Seamless Carbon Steel Tube 0Mechanical Cold Drawn Welded Steel Tube , ASTM A513 DOM Seamless Carbon Steel Tube 1























Mechanical Cold Drawn Welded Steel Tube , ASTM A513 DOM Seamless Carbon Steel Tube 2





Deliver condition:

1. A.W.H.R.    "as welded" from hot-rolled steel
2. A.W.C.R.      "as welded" from cold-rolled steel
3. S.D.C.R.       "sink-drawn", cold-rolled steel
5. M.D.              mandrel drawn
6. S.S.I.D.          special smooth inside diameter
