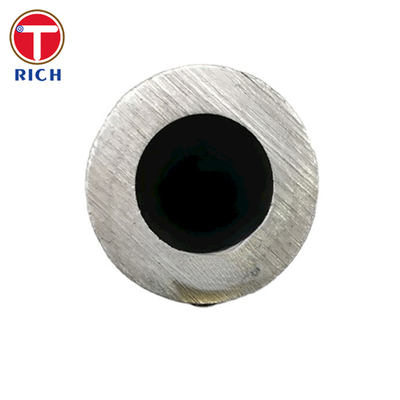

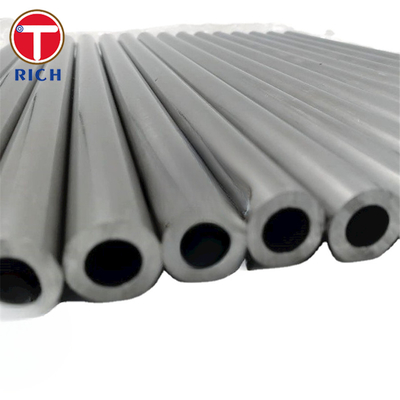

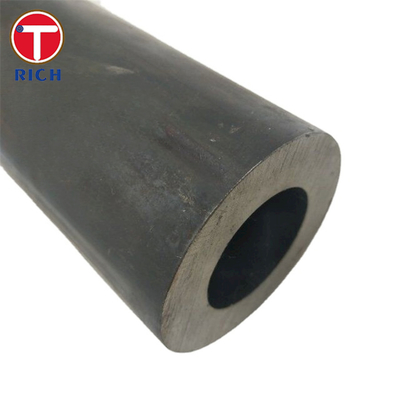

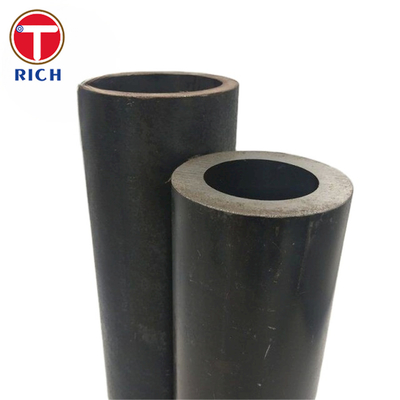

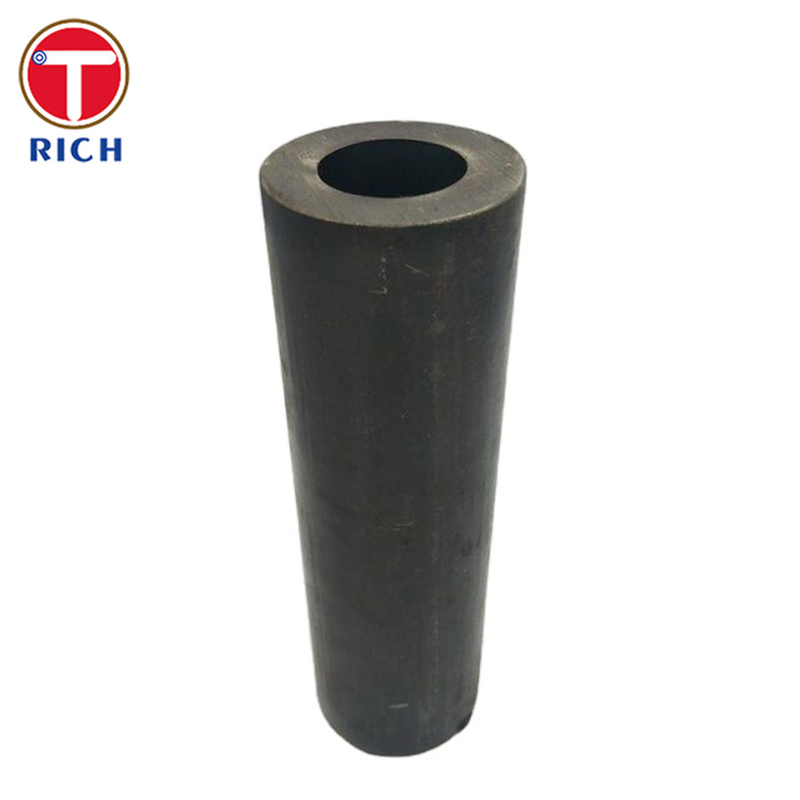

Cold Drawn Thick Wall Seamless Stainless Steel Tube EN10216-1 For Pressure Purposes
Product Details
EN10216-1 Seamless Steel Tube
,Cold Drawn Thick Wall Steel Tube
,Pressure Seamless Stainless Steel Tube
Seamless Stainless Steel Tube Cold Drawn Thick Wall Steel Tube EN10216-1 For Pressure Purposes
Material
The seamless stainless steel tube discussed in this article is made of high-quality stainless steel.
Specification
The tube conforms to the specification EN10216-1, which is specifically designed for pressure purposes. It ensures the tube's suitability for applications requiring high-pressure resistance.
Chemical Composition
The chemical composition of the seamless stainless steel tube, expressed as a percentage of the weight, is as follows:
| Element | Composition (%) |
|---|---|
| Carbon | 0.08 |
| Silicon | 1.00 |
| Manganese | 2.00 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Chromium | 16.0-18.0 |
| Nickel | 10.0-14.0 |
| Nitrogen | 0.10 |
Mechanical Properties
The seamless stainless steel tube exhibits excellent mechanical properties, making it suitable for high-pressure applications. The following table presents the mechanical properties of the tube:
| Property | Value |
|---|---|
| Tensile Strength | 550 MPa |
| Yield Strength | 250 MPa |
| Elongation | 35% |
| Hardness (Rockwell B) | 85 |
Steel Grade
The seamless stainless steel tube belongs to the steel grade specified in EN10216-1.
Application
Due to its thick wall and excellent pressure resistance, the seamless stainless steel tube is widely used in various applications. Some common applications include:
- Petrochemical industry: The tube is suitable for transporting corrosive fluids, such as acids and alkalis, in refineries and chemical plants.
- Power generation: It finds application in power plants for high-pressure steam and gas transportation.
- Oil and gas industry: The tube is utilized in pipelines for the transmission of oil, gas, and other hydrocarbon products.
- Boiler and heat exchanger systems: It is an integral component in boiler systems and heat exchangers due to its ability to withstand high temperatures and pressures.
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
