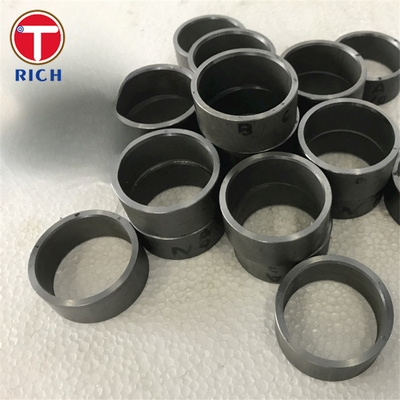

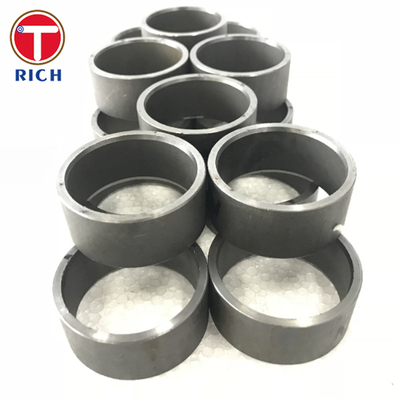

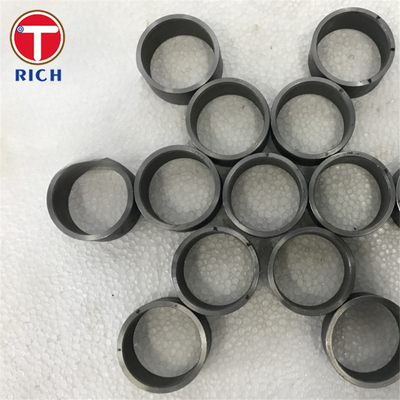

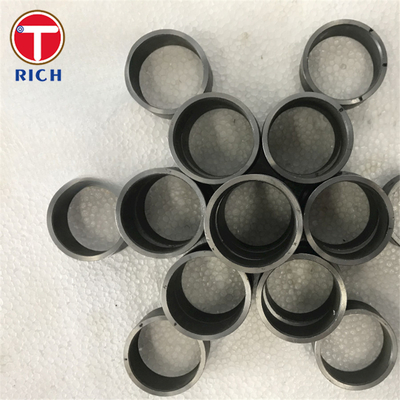

GB 8713 Precision Seamless Steel Tubes For Hydraulic And Pneumatic Cylinders
Product Details
Precision Seamless Steel Tubes
,GB 8713 Seamless Steel Tubes
,Pneumatic Cylinders Precision Steel Tube
GB 8713 Precision Inner Diameter Seamless Steel Tubes For Hydraulic And Pneumatic Cylinders
GB 8713 is a standard that specifies the technical requirements, dimensions, and tolerances of precision inner diameter seamless steel tubes used for hydraulic and pneumatic cylinders. These tubes are used in applications where high accuracy and smooth surface finish are required. In this article, we will discuss the material, specification, chemical composition, mechanical properties, steel grade, and application of GB 8713 steel tubes.
Material
GB 8713 precision inner diameter seamless steel tubes are made of high-quality carbon structural steel and alloy structural steel. The materials used for these tubes should be consistent with the relevant national standards.
Specification
The specification of GB 8713 steel tubes is as follows:
- Outside diameter: 4-120mm
- Wall thickness: 0.5-12mm
- Inside diameter accuracy: H7, H8, H9, H10
- Straightness: 0.5mm/1000mm
- Surface roughness: Ra0.2-0.8μm
Chemical Composition
The chemical composition of GB 8713 steel tubes is shown in the following table:
| Material | C | Si | Mn | P | S |
|---|---|---|---|---|---|
| 10 | 0.07-0.13 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 |
| 35 | 0.32-0.39 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 |
| Q345B | 0.12-0.20 | 0.20-0.55 | 1.20-1.60 | ≤0.035 | ≤0.035 |
Mechanical Properties
The mechanical properties of GB 8713 steel tubes vary depending on the steel grade. The following table shows the mechanical properties of different steel grades:
| Steel Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| 10 | ≥335 | ≥205 | ≥24 | ≤100 |
| 20 | ≥410 | ≥245 | ≥20 | ≤100 |
| 35 | ≥510 | ≥305 | ≥17 | ≤100 |
| 45 | ≥590 | ≥335 | ≥14 | ≤100 |
| Q345B | ≥490 | ≥345 | ≥21 | ≤187 |
Steel Grade
The steel grade of GB 8713 steel tubes is indicated by the grade number, which represents the minimum yield strength of the steel. The commonly used steel grades are 10, 20, 35, 45, and Q345B.
Application
GB 8713 precision inner diameter seamless steel tubes are mainly used in hydraulic and pneumatic cylinders, as well as in the manufacturing of machinery, automobiles, and other mechanical components that require high precision and smooth surface
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
