ASTM A511 TP316 304 Thick Wall Seamless Stainless Steel Pipe For Mechanical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
|Minimum Order Quantity :||1000kg||Price :||negotiable|
|Packaging Details :||In bundles in wooden box||Delivery Time :||3-4 weeks|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union||Supply Ability :||5000tons per year|
|Place of Origin:||China||Brand Name:||Torich|
|Certification:||ISO9001||Model Number:||ASTM A511|
|Standard:||ASTM A511||Grade:||TP316 304|
|Production:||Cold Drawn||Delivery Condition:||Pickled And Annealed|
|Application:||Mechanical||Type:||Stainless Steel Tube|
TP316 Seamless Stainless Tube,
Thick Wall Seamless Stainless Steel Tube,
Mechanical Seamless Stainless Tube

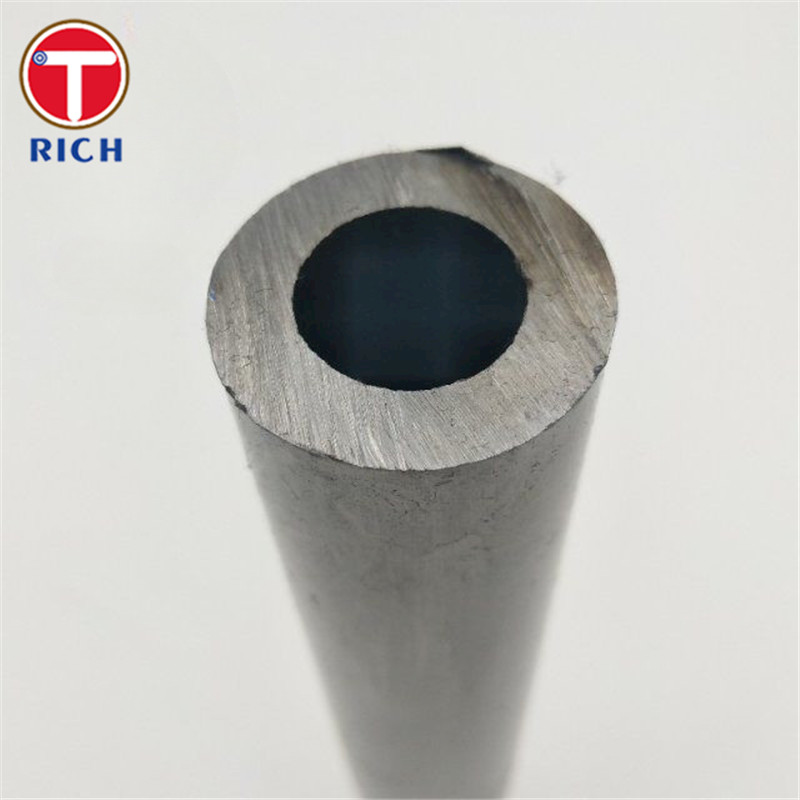

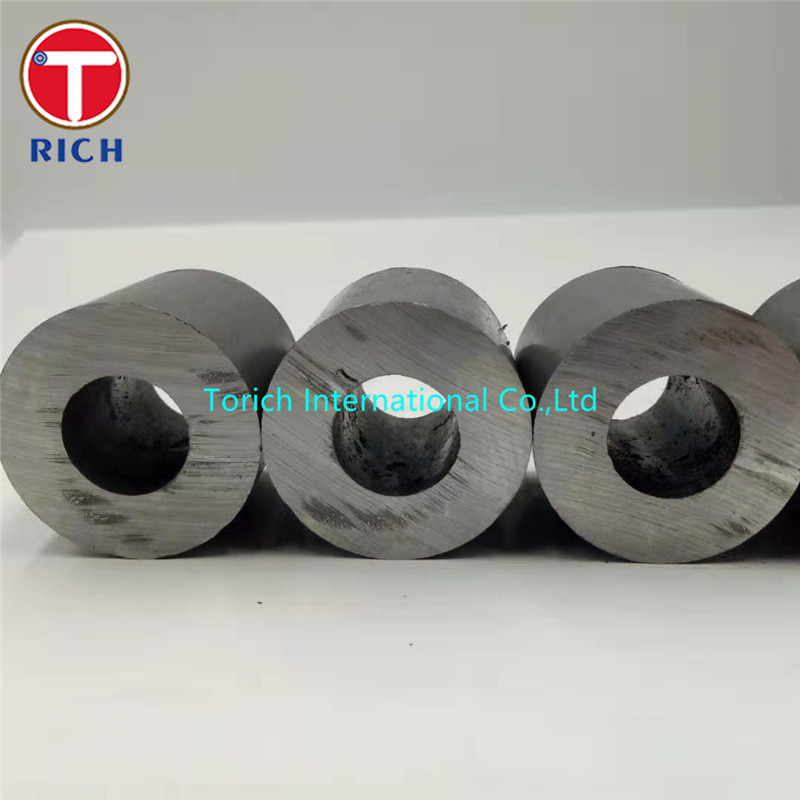

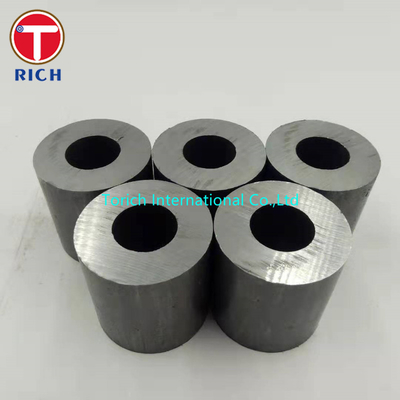

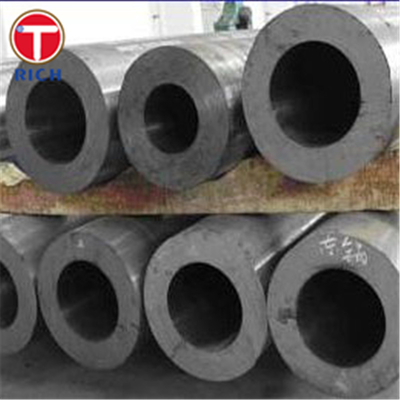

Thick Wall Stainless Steel Tube For Mechanical ASTM A511 TP316 304 Seamless Stainless Tube
Covering seamless stainless tubing foruse in mechanical applications where corrosion-resistant orhigh temperature strength is needed.
Covering seamless cold-finished me-chanical tubing and seamless hot-finis hed mech anical tubing insizes up to 123/4 in.[ 325 mm] in outside nominal diameter (forround tubing) with wall thicknesses as required.
1.Round seamless stain le ss mechanical tubing is generallysupplied in the cold-worked and annealed condition (see 5.2through 5.4). Square, rectangular, or other shapes of tubing aregenerally supplied annealed prior to final cold shaping. If someother condition is desired, details shall be included in the order.
2.The thermal treatment for ferritic and martensitic steelsshall be performed by a method and at a temperature se lectedby the manufacturer unless otherwise specified by the pur-chaser.
3.Unless otherwise specified. all austenitic tubes shall befurnished in the annealed condition. The anneal shall consist ofheating the material to a minimum temperature of 1900 F
Tolerance for seamless stainless tube:
|Cold Drawn(Cold Rolled)||OD||8~30||±0.20mm|
The length or general steel tube:
Hot Rolling(Extrusion) tube: 3~12 m
Cold Drawn(Cold Rolled) tube: 3~8 m
The length for water pipe & boiler steel pipe:
Hot Rolling(Extrusion) tube: 4~12 m
Cold Drawn(Cold Rolled) tube: 4~8 m
Both ends of the pipe should be cut at right angles, and remove burrs
Heat treatment of longitudinal mechanical properties of steel pipe shall according to the standard.
Tensile strength MPa
Yield Strength MPa
For the tubes which W.T. ≥2 mm, Rockwell hardness tests should be taken.
Tests of the seamless boiler tubes:
The tubes should take the bending test when OD ≤22mm. The bending angle is 90 degrees, and the bending radius is 6 times the outer diameter of the steel tube.
2. Hydraulic test;
Eddy current testing, ultrasonic testing can be used instead of hydraulic tests. When eddy current testing, GB/T 7735-1995 Gr. A should be followed; when ultrasonic testing, GB/T 5777-1996 Gr. C8 should be followed.
3. Flattening test
4. Flanging test
5. Expand test
|Type||Tensile Strength (MPa)||Yield Strength (MPa)||Elongation (%)||Hardness (HB)|
What is your Guarantee?
1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.
Do you have agent or distributor in our country?
1.We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
