ASTM A501 Gr.A Hot Formed Structural Tubing Seamless Carbon Steel Tube For Construction
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5 tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | Anti rust oil protection in bundles or in wooden box | Delivery Time : | 4-5 weeks |
Payment Terms : | L/C, T/T | Supply Ability : | 2000 tons per month |
Place of Origin: | China | Brand Name: | Torich |
---|---|---|---|
Certification: | ISO9001:2008, ISO14001:2008, TS16949 | Model Number: | ASTM A519 |
Detail Information |
|||
Material: | Carbon And Alloy Steel | Grade: | 1010,1020,4130,4140,25CrMo,30CrMo,34CrMo4 |
---|---|---|---|
Type: | Seamless | Production: | Cold Drawn |
High Light: | cold drawn seamless tube,cold drawn tubes |
Product Description
Cold Drawn Seamless Carbon and Alloy Steel Mechanical Tubing with Carbon and Alloy Steel Grade

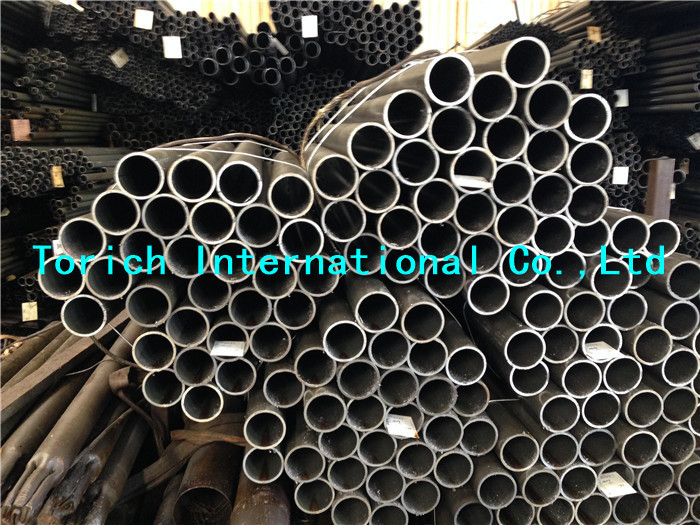

Cold Drawn Seamless Carbon and Alloy Steel Mechanical Tubing
Size range: O.D.:6-450mm W.T.:1-50mm L:max12000mm
Grade:
1010,1020,4130,4140,25CrMo,30CrMo,34CrMo4
Steel Grade and Chemical Compositions: | |||||||
Steel | C | Mn | P | S | Si | Cr | Mo |
Grade | max | max | max | max | min | ||
1008 | 0.10 | 0.30-0.50 | 0.040 | 0.050 | |||
1010 | 0.08-0.13 | 0.30-0.60 | 0.040 | 0.050 | |||
1018 | 0.15-0.20 | 0.60-0.90 | 0.040 | 0.050 | |||
1020 | 0.18-0.23 | 0.30-0.60 | 0.040 | 0.050 | |||
1026 | 0.22-0.28 | 0.60-0.90 | 0.040 | 0.050 | |||
1035 | 0.32-0.38 | 0.60-0.90 | 0.040 | 0.050 | |||
1045 | 0.43-0.50 | 0.60-0.90 | 0.040 | 0.050 | |||
4130 | 0.28-0.33 | 0.40-0.60 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
4140 | 0.38-0.43 | 0.75-1.00 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
Grade | condition | Ultimat | Yield | Elongation | Rockwell |
Strength | Strength | Hardness | |||
ksi Mpa | ksi Mpa | % | B Scale | ||
1020 | HR | 50 345 | 32 221 | 25 | 55 |
CW | 70 483 | 60 414 | 5 | 75 | |
SR | 65 448 | 50 345 | 10 | 72 | |
A | 48 331 | 28 193 | 30 | 50 | |
N | 55 379 | 34 234 | 22 | 60 | |
1035 | HR | 65 448 | 40 276 | 20 | 72 |
CW | 85 586 | 75 517 | 5 | 88 | |
SR | 75 517 | 65 448 | 8 | 80 | |
A | 60 414 | 33 228 | 25 | 67 | |
N | 65 448 | 40 276 | 20 | 72 | |
1045 | HR | 75 517 | 45 310 | 15 | 80 |
CW | 90 621 | 80 552 | 5 | 90 | |
SR | 80 552 | 70 483 | 8 | 85 | |
A | 65 448 | 35 241 | 20 | 72 | |
N | 75 517 | 48 331 | 15 | 80 | |
4130 | HR | 90 621 | 70 483 | 20 | 89 |
SR | 105 724 | 85 586 | 10 | 95 | |
A | 75 517 | 55 379 | 30 | 81 | |
N | 90 621 | 60 414 | 20 | 89 | |
4140 | HR | 120 855 | 90 310 | 15 | 100 |
SR | 120 855 | 100 689 | 10 | 100 | |
A | 80 552 | 60 414 | 25 | 85 | |
N | 120 855 | 90 621 | 20 | 100 |
Applications: for mechinery, mechanical engineer
