Stainless Steel tubes for Heat Exchangers / Condensers , Round U Bend Tubes
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
GB/T 19001-2008 , ISO 9001:2008 , TS16949
Model Number:
ASTM B161
Trading Properties
Minimum Order Quantity:
1 tons
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
800 tons montly
Product Summary
ASTM B161 Nickel Seamless Pipe and Tube Steel tubes for Heat Exchangers and Condensers Grade: UNS N02200, UNS N02201 Production: Cold worked, Hot worked Size range: O.D.:6-127mm W.T.:1-30mm L: according to Customer requirement TABLE 2 Chemical Requirements Chemical Compostion Composition, % Element ...
Product Details
Highlight:
stainless steel round tube
,large diameter stainless steel tube
Standard:
ASTM B161
Material:
Stainless Nickel Alloy
Application:
Heat Exchangers And Condensers
Shape:
Round, U Bending Tubes
Product Description

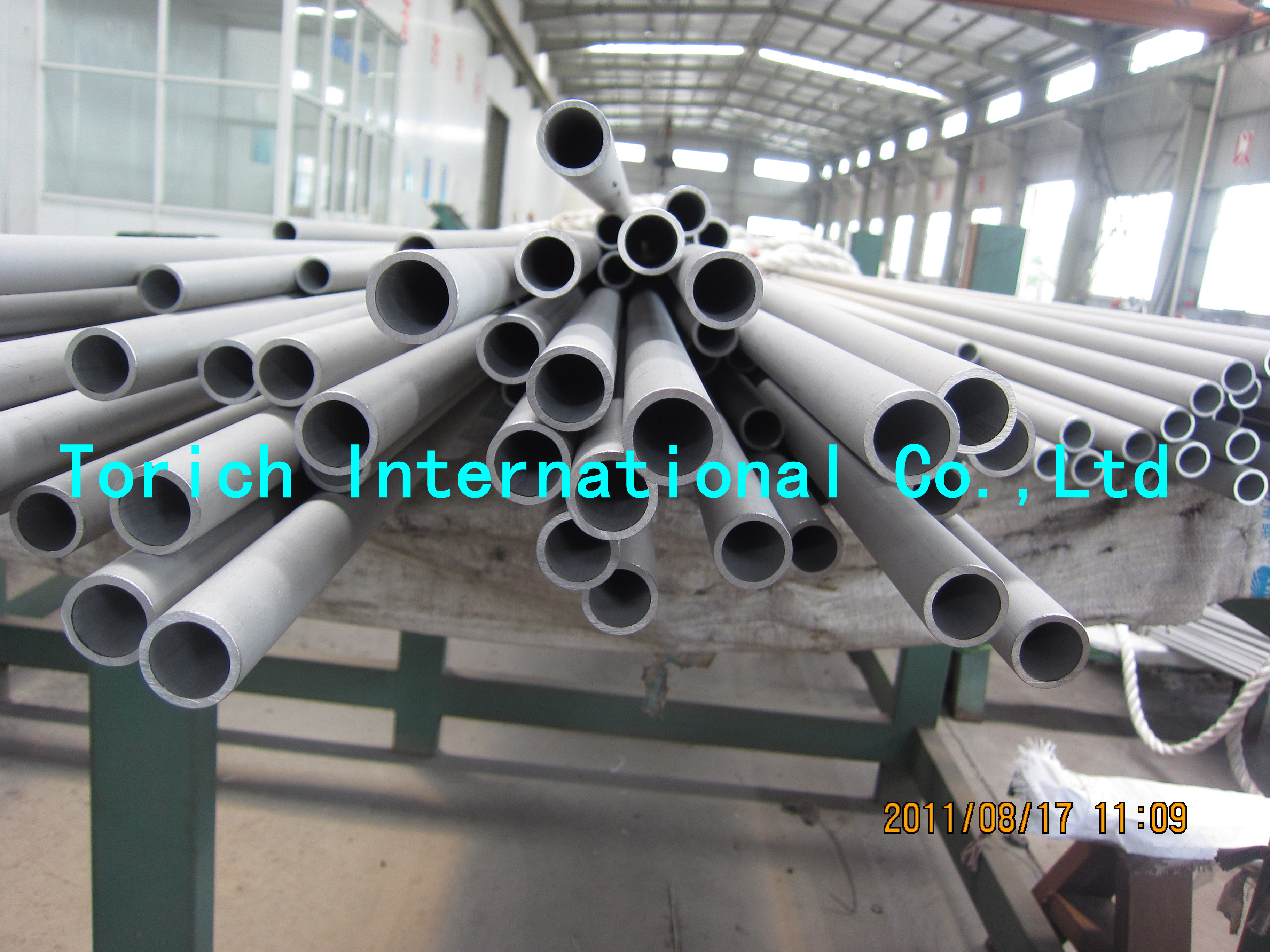

ASTM B161 Nickel Seamless Pipe and Tube Steel tubes for Heat Exchangers and Condensers
Grade: UNS N02200, UNS N02201
Production: Cold worked, Hot worked
Size range: O.D.:6-127mm W.T.:1-30mm L: according to Customer requirement
| TABLE 2 Chemical Requirements | ||||||||||||
| Chemical Compostion | Composition, % | |||||||||||
| Element | Nicel (UNS N02200) | Low-Carbon Nickel (UNS N02201) | ||||||||||
| Ni,A min | 99.00 | 99.00 | ||||||||||
| Cu | 0.25 | 0.25 | ||||||||||
| Fe | 0.40 | 0.40 | ||||||||||
| Mn, max | 0.35 | 0.35 | ||||||||||
| C,max | 0.15 | 0.02 | ||||||||||
| Si,max | 0.35 | 0.35 | ||||||||||
| S,max | 0.01 | 0.01 | ||||||||||
Applications: Steel tubes for Heat Exchangers and Condensers
Mechanical and Inspection:
Tension Test
Tensile Properties
Hydrastatic Test or Non Destructive Electric Test
Chemical Analysis
