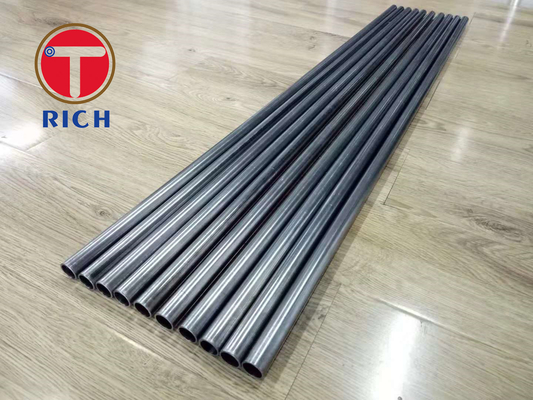

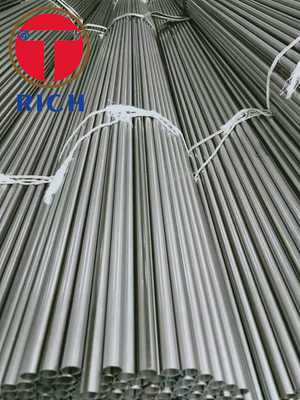

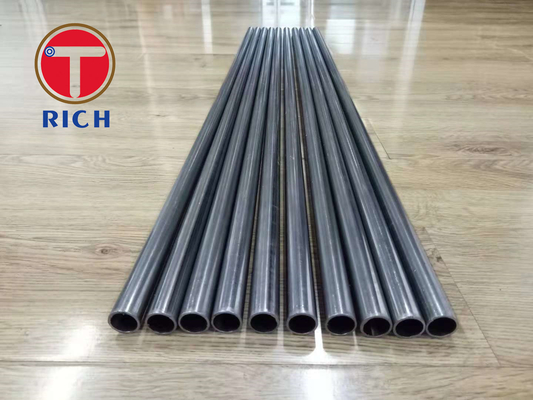

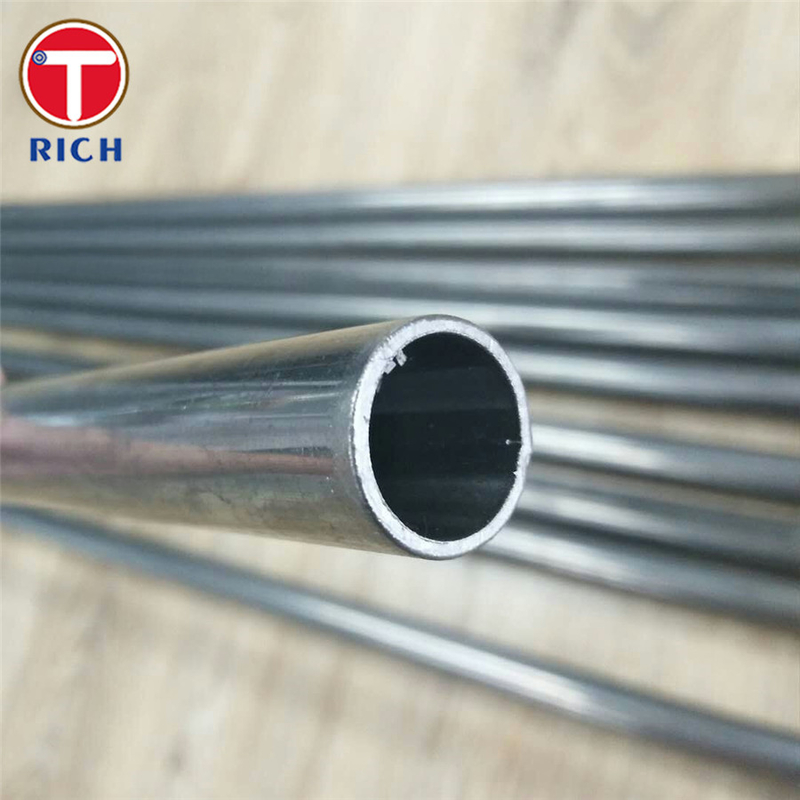

SA513 ERW Precision Steel Tube For Automotive Shock Absorber

Name: SA513 ERW Precision Steel Tube For Automotive Shock Absorber
Brand: TORICH INTERNATIONAL LIMITED
SKU: ASTM A513
Price: 1,150.00 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	ASTM A513
MOQ:	5Tons
Price:	800-1500USD/TON
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	60000 Tons Per year

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJIANG, CHINA

Certification:

ISO9001, ISO14001, TS16949

Product Name:

SA513 ERW Precision Steel Tubes

Keyword:

ERW Precision Steel Tubes

Technique:

ERW(Electric Resistance Welded)

Material:

1010,1020,1045,4130,4140

Application:

For Automotive Shock Absorber,engine Application

OD:

5-420mm

WT:

0.5-50mm

Length:

Max12000mm

Packaging Details:

packing in standard marine package

Supply Ability:

60000 Tons Per year

Highlight:

Automotive Shock Absorber Precision Steel Tube

ERW Precision Stainless Steel Tubing

SA513 Precision Steel Pipe

Product Description

SA513 ERW Precision Steel Tubes

Torich International Limited is a professional manufacturer and exporter of steel pipes materials.

Our main products are ERW Precision Steel Tubes,The material of ERW Precision Steel Tubes we usually use for producing precision seamless steel tube is 1010,1020,1045,4130,4140

Applications:for mechinery,mechanical engineer

Standard: ASTM A513 cold rolling welded precision steel tubes

Size range:
O.D.:6-350mm

W.T.:1-15mm

L:max12000mm

Steel Grade: SAE1010, SAE1020, SPCC,SPHC,other materials upon agreement with customers.

Technique:Electric Resistance Welded

Packing: In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing

Delivery condition:

1. A.W.H.R. "as welded" from hot-rolled steel

2. A.W.C.R. "as welded" from cold-rolled steel

3. S.D.C.R. "sink-drawn", cold-rolled steel

5. M.D. mandrel drawn

6. S.S.I.D. special smooth inside diameter

Thermal condition:
1. No final thermal treatment
2. Stress relieved
3. Annealed
4. Normalized

STEEL GRADE AND CHEMICAL COMPOSITION FOR PRECISION STEEL TUBE

Steel	C	Mn	P	S	Si	Cr	Mo
Grade	max		max	max	max	min
1010	0.08-0.13	0.30-0.60	0.035	0.035
1020	0.18-0.23	0.30-0.60	0.035	0.035
1026	0.22-0.28	0.60-0.90	0.035	0.035
1035	0.32-0.38	0.60-0.90	0.035	0.035
4130	0.28-0.33	0.40-0.60	0.035	0.035	0.15-0.35	0.80-1.10	0.15-0.25
4140	0.38-0.43	0.75-1.00	0.035	0.035	0.15-0.35	0.80-1.10	0.15-0.25
