DIN 2391 EN 10305 68X7 Case Hardening Precision Steel Tube For Automotive
Product Details
16MnCr5 Case Hardening Steel Tubes
,Cold Drawn Automotive Precision Steel Tube
,0.1mm Precision Steel Tube
DIN 2391 EN 10305 20NiCrMo2-2 16MnCr5 68X7 Case Hardening Steel Tubes For Automotive
TORICH is a professional Case Hardening Steel Tubes manufacturer of precision steel tubes for general purpose,
which is equipped with 20 lines of pipe production.Case Hardening Steel Tubes , is usually produced by 20NiCrMo2-2 16MnCr5,
production method can be cold drawning or cold rolled.
68X7 Case Hardening Steel Tubes is usually based on technical standard DIN 2391 EN 10305 etc .
TORICH Case Hardening Steel Tubes is usually produced based on the following technical standard
and Grade:
Standards: DIN 2391 EN 10305 or similar technical standard.
Steel Grade: 20NiCrMo2-2 16MnCr5 1.7131 8620 etc
TORICH Special Alloy grade tubes can produce 20NiCrMo2-2 16MnCr5 Sizes Range:
OD: 10-120 mm
WT:1.2-20mm
Wall Thickness: can be by mutual agreement with customer.
Main Features for 16MnCr5 bearing steel tubes :
High accuracy on tolerance
Thick pipe
Good Concentricity
Production Process for 16MnCr5 cold drawn steel tubes:
Raw material storage
Raw material inspection
cutting by saw machine
Hot perforation
Squeeze head
Raw Tube Quantity Inspestion
Cycling Pickling
Cycling Cold drawing/rolling
Cycling annealing
Straightening
Head&tail cutting
Eddy current inspection
Finished product inspection
Packing
8620 Case hardening steel tubes are usually used in the following scope:
-
Automobile steel pipe

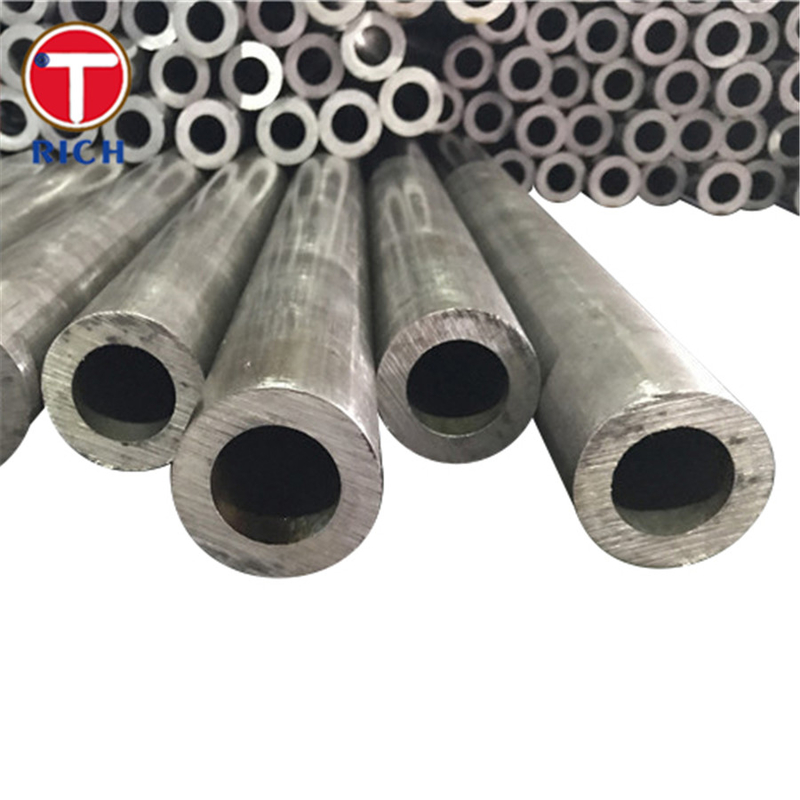

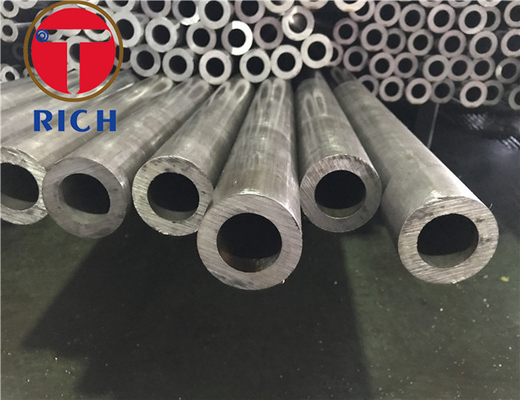

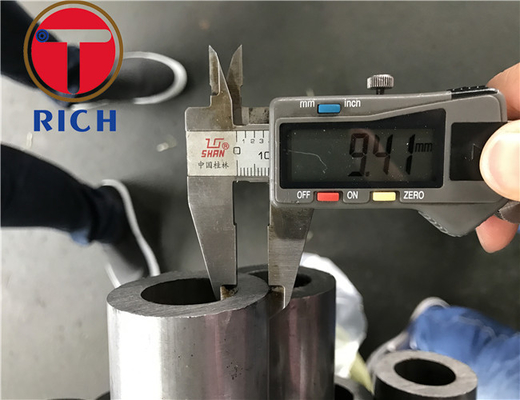

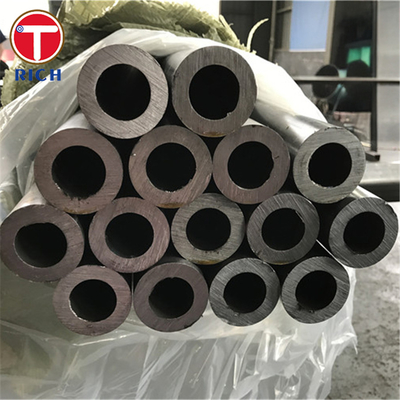

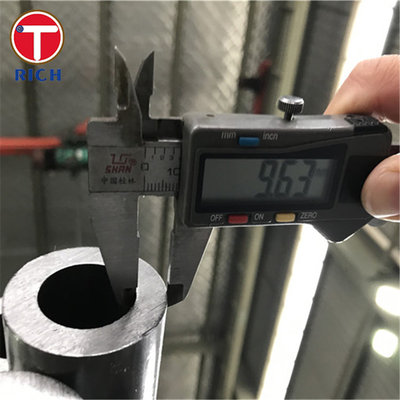

Product show:
-
