Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Product Details
SS304 Medical Capillary Tube
,Mild Steel Capillary Tube
,Cold Drawn Capillary Mild Steel Tube
Capillary Tube Mild Steel SS304 Capillary Tube
Standard: ASTM, ASME,EN, JIS, DIN,GB/T etc
Steel grade: 304(0Cr18Ni9), 304L(00Cr18Ni10), 316(0Cr17Ni12Mo2), 316L(0Cr17Ni14Mo2), 321, 409, 409L, 430
Size: OD 0.28-10mm WT 0.08-1mm Length≤500mm Or in coil
Tolerance: OD+/- 0.01mm,WT+/- 0.01mm,L +/- 0.1mm
Surface Treatment: Polishing,Annealing, Mirro surface, Bright, Picklin
Application: medical treatment, petroleum, aerospace, medical equipment, air conditioning, chemical industry, electronics, accessories, food machinery, power generation, pharmaceutical and other fields.
| 201 | 202 | 304 | 316 | S31803 | S32750 | ||
| Chemical Composition(%) | C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.030 | ≤0.030 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤0.80 | |
| Mn | 5.5-7.5 | 7.5-10.0 | ≤2.00 | ≤2.00 | ≤2.00 | ≤1.20 | |
| P | ≤0.060 | ≤0.060 | ≤0.045 | ≤0.045 | ≤0.030 | ≤0.035 | |
| S | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.020 | ≤0.020 | |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | |
| Ni | 3.5-5.5 | 4.0-6.0 | 8.0-10.5 | 16.0-18.5 | 4.5-6.5 | 6.0-8.0 | |
| Mo |
|
|
| 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | |
| N | ≤0.25 | ≤0.25 |
|
| 0.08-0.2 | 0.24-0.32 | |
| Cu |
|
|
|
|
| ≤0.50 | |
| Mechanical Property | Tensile Strength(MPa) | ≥655 | ≥620 | ≥515 | ≥515 | ≥620 | ≥800 |
| Yeild Strength(MPa) | ≥260 | ≥310 | ≥205 | ≥205 | ≥450 | ≥550 | |
| Elongation(%) | ≥35 | ≥35 | ≥35 | ≥35 | ≥25 | ≥15 | |
| Hardness(HV) | ≤230 | ≤230 | ≤200 | ≤200 | ≤303 | ≤323 | |

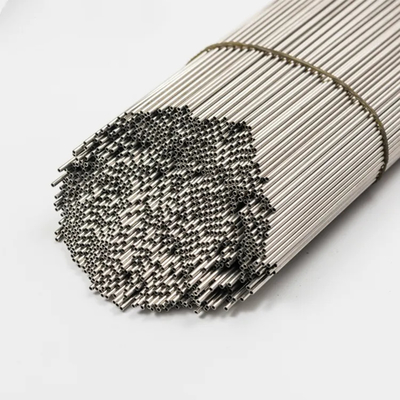

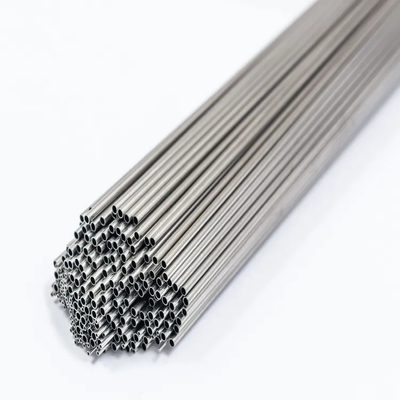

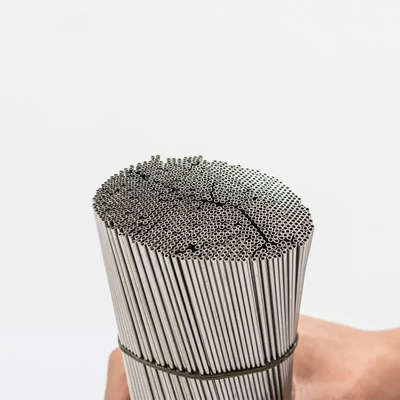

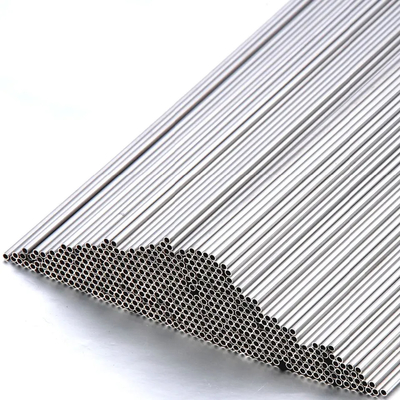

Product pictures
Stainless steel welded pipe production process:
Raw material - silting - welding pipe - trimming - polishing - inspection (spray printing) - packaging - shipping (warehouse) (decorative welded pipe). Raw material - Slitting - Welding pipe Heat treatment - Correction - Straightening - End trimming - Pickling - Water pressure test - Inspection (printing) - Packaging - Shipping (warehouse) (Pipe for industrial piping of welded pipe).

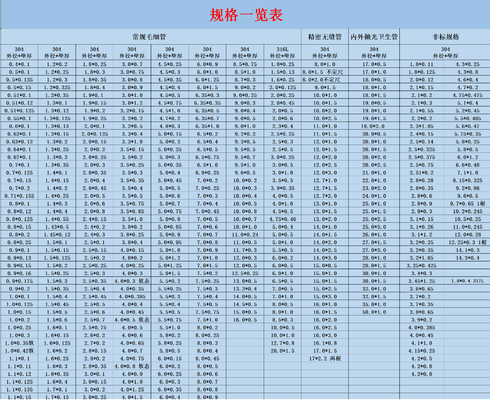

Regular sizes we can supply
Certificate
Customer's praise
