304 316 Stainless Steel Capillary Tube Seamless 0.28 - 10mm OD
Basic Properties
Place of Origin:
Zhejiang,China
Brand Name:
TORICH
Certification:
ISO9001,ISO14001,TS16949
Model Number:
ASTM A213/ASTM A269/ASTM A249
Trading Properties
Minimum Order Quantity:
1kg
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
20000 ton per year
Product Summary
304 316 Stainless Steel Capillary Tube TORICH is a professional steel tubes supplier from China with over 23 years experience. We have NICE quality of Stainless Steel Capillary Tube,have exported 304 316 Stainless Steel Capillary Tube to India,UAE,Australia,Poland,etc Standard: ASTM, ASME,EN, JIS, ...
Product Details
Highlight:
10mm Stainless Steel Capillary Tube
,SS316 Capillary Tube
,Capillary Stainless Steel Seamless Pipe
Product Name:
304 316 Stainless Steel Capillary Tube
Keyword:
Stainless Steel Capillary Tube
Material:
201,304,310,316,etc
Usage:
Medical Application
Shape:
Shape
Technique:
Cold Drawn
Surface:
Customized
Length:
Max12000mm
OD:
0.28-10mm
WT:
0.08-1mm
Product Description
304 316 Stainless Steel Capillary Tube
TORICH is a professional steel tubes supplier from China with over 23 years experience.
We have NICE quality of Stainless Steel Capillary Tube,have exported 304 316 Stainless Steel Capillary Tube to India,UAE,Australia,Poland,etc
Standard: ASTM, ASME,EN, JIS, DIN,GB/T etc
Steel grade: 304(0Cr18Ni9), 304L(00Cr18Ni10), 316(0Cr17Ni12Mo2), 316L(0Cr17Ni14Mo2), 321, 409, 409L, 430
Size: OD 0.28-10mm WT 0.08-1mm
Production Process: Cold Drawn Bright Anneal etc
Type : Seamless,welded
Surface: Pickling, Bright
| 201 | 202 | 304 | 316 | S31803 | S32750 | ||
| Chemical Composition(%) | C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.030 | ≤0.030 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤0.80 | |
| Mn | 5.5-7.5 | 7.5-10.0 | ≤2.00 | ≤2.00 | ≤2.00 | ≤1.20 | |
| P | ≤0.060 | ≤0.060 | ≤0.045 | ≤0.045 | ≤0.030 | ≤0.035 | |
| S | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.020 | ≤0.020 | |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | |
| Ni | 3.5-5.5 | 4.0-6.0 | 8.0-10.5 | 16.0-18.5 | 4.5-6.5 | 6.0-8.0 | |
| Mo |
|
|
| 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | |
| N | ≤0.25 | ≤0.25 |
|
| 0.08-0.2 | 0.24-0.32 | |
| Cu |
|
|
|
|
| ≤0.50 | |
| Mechanical Property | Tensile Strength(MPa) | ≥655 | ≥620 | ≥515 | ≥515 | ≥620 | ≥800 |
| Yeild Strength(MPa) | ≥260 | ≥310 | ≥205 | ≥205 | ≥450 | ≥550 | |
| Elongation(%) | ≥35 | ≥35 | ≥35 | ≥35 | ≥25 | ≥15 | |
| Hardness(HV) | ≤230 | ≤230 | ≤200 | ≤200 | ≤303 | ≤323 | |
|
Application
| Architectural/Civil Engineer | Door and window fittings, steel furniture, structural sections etc. | ||
| Transport | Exhaust systems, car trim, road tankers, ship containers, ships chemical tankers etc. | |||
| Chemical/Pharmaceutical | Pressure vessels, process piping etc. | |||
| Oil & Gas | Platform accomodation, cable trys, subsea pipelines etc. | |||
| Water | Water and sewage treatment, water tubing, hot water tankers etc. | |||
| Medical | Surgical instruments, surgical implanets, MRI scanners etc. | |||
| Food & Drink | Catering equipment, brewing, food processing etc. | |||

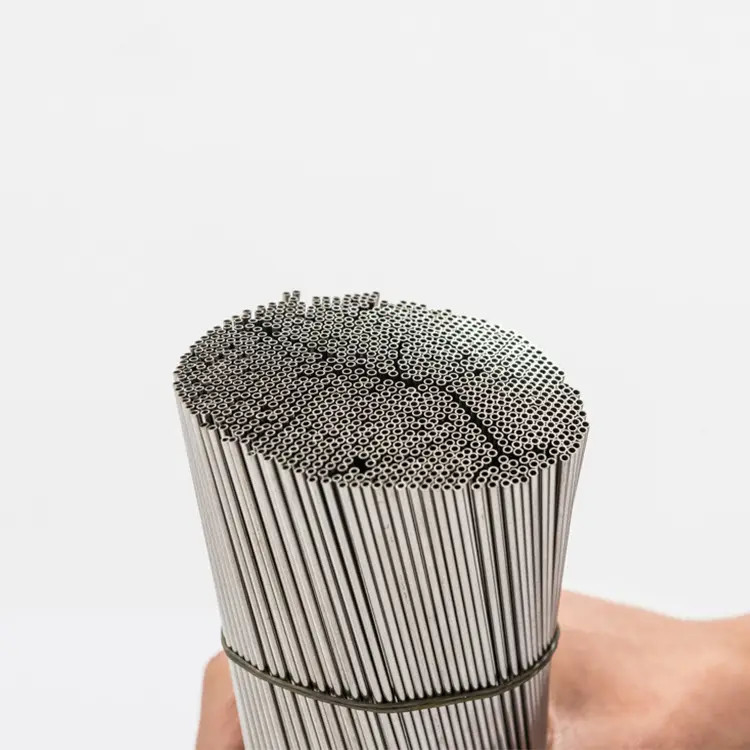

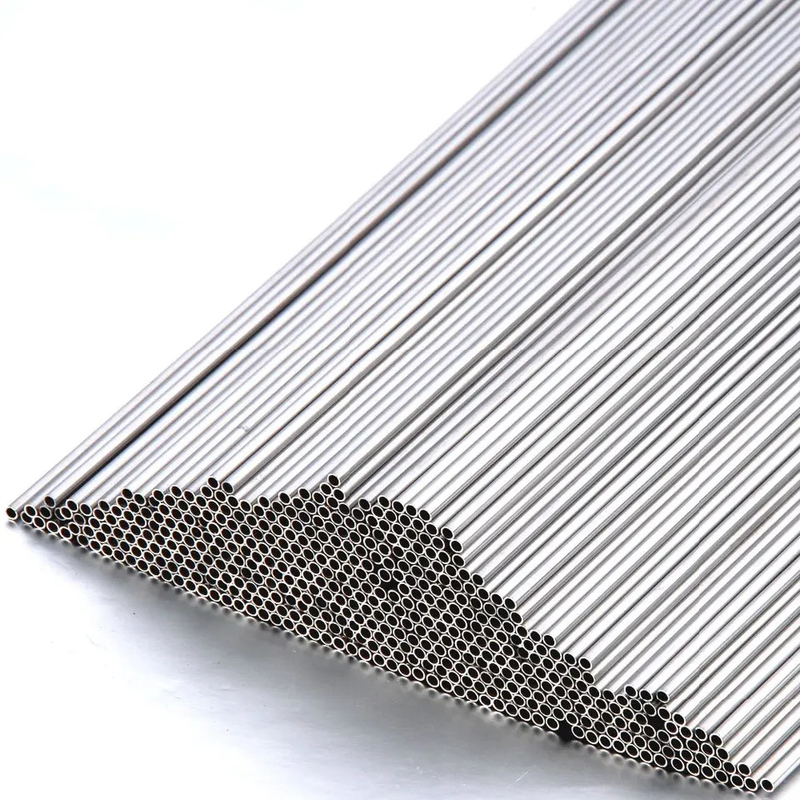

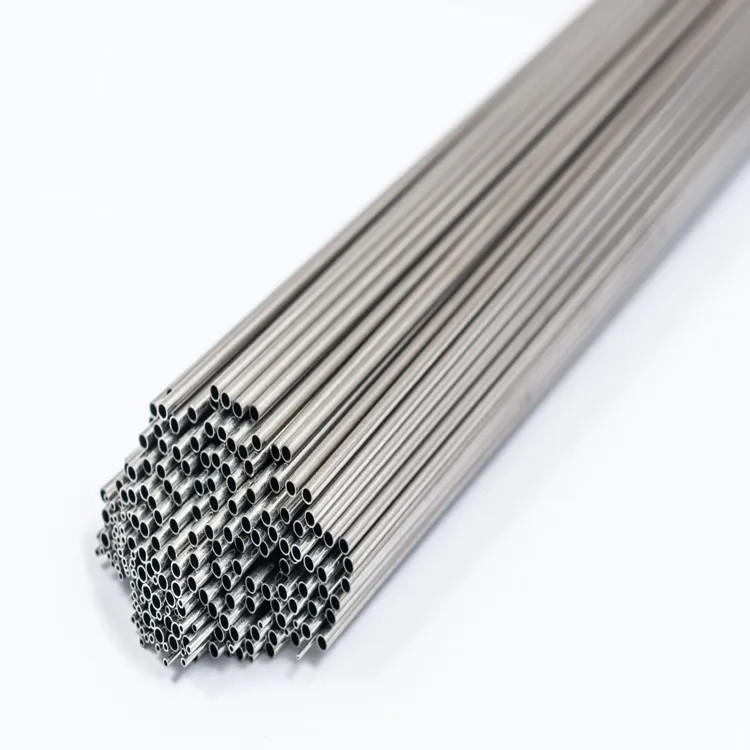

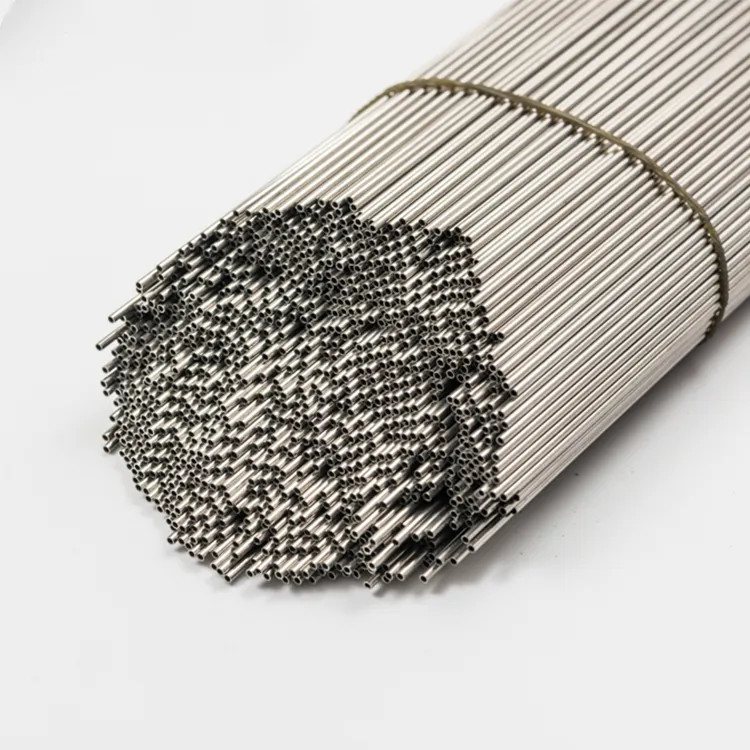

Product pictures
Regular sizes we can supply
Certificate
Customer's praise

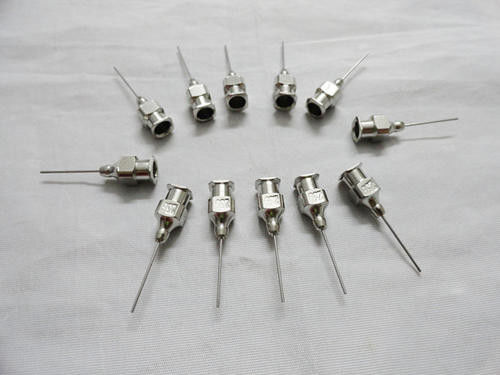

1.0*0.1 and 0.8*0.1 Super Small Diameter Capillary Tube for Medical Purposes
