Home ProductsPrecision Steel TubeWelded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355

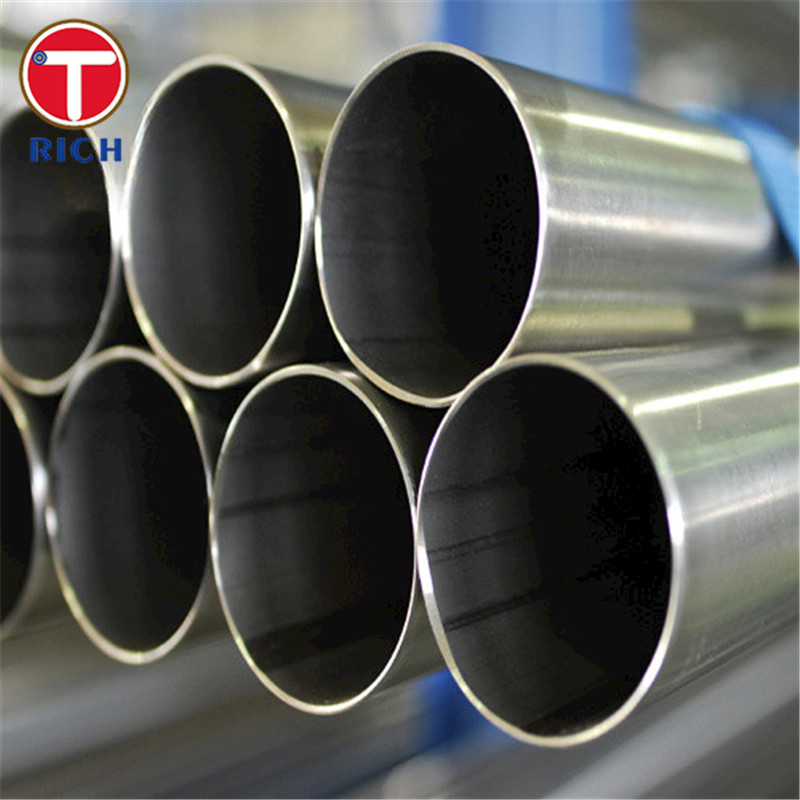

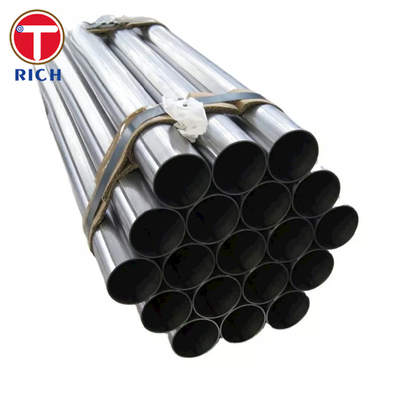

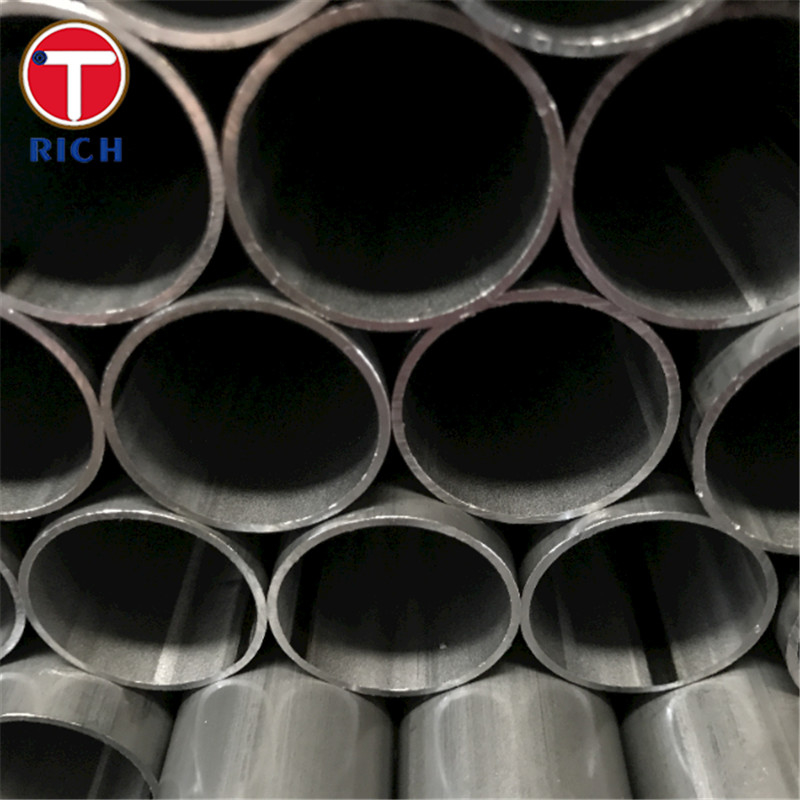

Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355
Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355
Contact Now

Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355

Minimum Order Quantity : 1ton Price : 800-1500USD/TON
Packaging Details : in bundles or in wooden box Delivery Time : 10-15days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 60000 Tons Per year
Place of Origin: ZHEJIANG, CHINA Brand Name: TORICH
Certification: CE,ISO Model Number: EN10305-2

Detail Information
Standard: EN10305-2 OD: 5-420mm
WT: 0.5-50mm Length: Max12000mm
Material: E215 E235 E355 Technique: Cold Drawn
Application: Shock Absorber，oil Cylinder Tube，machinery Use Alloy Or Not Alloy: Not Alloy
High Light:

E355 Precision Steel Tubes

,

Cold Drawn Precision Steel Tubes

,

50mm Stainless Steel Welded Tube

Product Description

EN10305-2 E235 E355 Welded Cold Drawn Precision Steel Tubes



Torich International Limited is a professional manufacturer and exporter of steel tubes.

It is an international marketing and sales company specialized in steel tubes, which holds the factories of Steel Tubes.

Our main products are precision cold drawn tubes, the material we usually use for precision steel tubes is E215 E235 E355.We have many years export experience of Welded Cold Drawn Precision Steel Tubes.



Size range of precision steel tubes:

OD:5-420MM

WT:0.5-50MM

Length:≤12000MM



Steel grade: E215,E235,E355,E155,E195...



Technical:welded cold drawn



Application:

for precision applications

auto industy

for machinery use

oil cylinder tube

motorcycles shock absorber





Steel grade and chemical compositions:

Steel Grade C Si Mn P S
Steel name Steel number max max max max max
E215 1.0033 0.11 0.35 0.7 0.03 0.025
E235 1.0034 0.15 0.35 0.7 0.03 0.025
E355 1.0308 0.17 0.35 1.2 0.03 0.025
E235 1.0225 0.21 0.35 1.4 0.03 0.025
E355 1.0580 0.22 0.35 1.6 0.03 0.025







Delivery conditions:

Designation Symbola Description
Cold drawn/hard +C No final heat treatment after final cold drawing
Cold drawn/soft +LC Final heat treatment is followed by a suitable drawing pass(limited reduction of area)
Cold drawn and stress relieved +SR After final cold drawing the tubes are stress relieved in a controlled atmosphere
Soft annealed +A After final cold drawing the tubes are annealed in a controlled atmosphere
Normalized +N After final cold drawing the tubes are normalized in a controlled atmosphere
a In accordance with EN10027-1





Workshop for Welded Cold Drawn Precision Steel Tubes:

Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 0Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 1Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 2

Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 3

Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 4

Certification for Welded Cold Drawn Precision Steel Tubes

Welded Cold Drawn Precision Steel Tubes EN10305-2 E235 E355 5



FAQ:

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.



Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-45 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples?

A: Yes, we could offer the sample



Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
