89X6 Wireline Geological Seamless Mining Oil Drill Steel Pipe 4130 4140 30CrMnSiA 45MnMoB
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001
Model Number:
4130 4140 40MnVB 40MnMoB
Trading Properties
Minimum Order Quantity:
5 tons
Price:
negotiable
Payment Terms:
T/T, L/C
Supply Ability:
1000 tons per year
Product Summary
4130 4140 30CrMnSiA 45MnMoB 89X6 Wireline Geological Seamless Mining Dilling Oil Steel Tubes NT HT QT Torich Interational Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the ...
Product Details
Highlight:
Seamless Mining Oil Drill Steel Pipe
,30CrMnSiA Drill Steel Pipe
,Wireline Geological Round Steel Pipe
Production Name:
Geological Seamless Mining Dilling Oil Steel Tubes
Material:
4130 4140 40MnVB 40MnMoB
Length:
As Per Customer Requests
Origin:
China
Certificate:
En10304.3.1
Product Description
4130 4140 30CrMnSiA 45MnMoB 89X6 Wireline Geological Seamless Mining Dilling Oil Steel Tubes NT HT QT
Torich Interational Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and
sales company specialized in steel tubes, which holds the factories ofSeamless Mining Dilling Oil Steel Tubes with material
40MnVB 40MnMoB for Wireline Geological uasge.

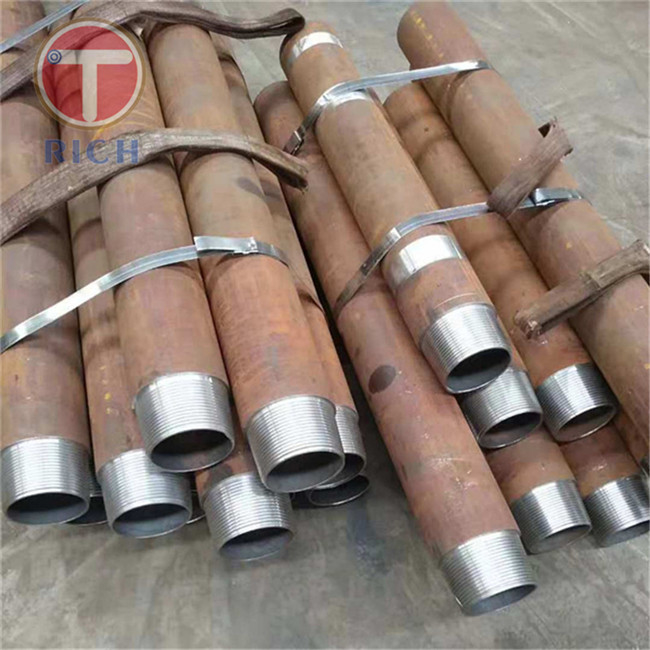

1. Product Name:Geological Drill Pipes for Wire-line drilling rods Core Tubes
2. The Steel Tube Materials: SAE1541,AISI4130,4130,St52,45MnMoB,BL850/XJY850
3. The Steel Pipes can be finished as Stress relieved or Quenching and Tempering process
4. Protective Atmosphere Heat Treatment, Surface is clean and smooth, without oxide scale
5. Tubing Produced as DCDMA,ISO10097-1 Wireline Diamond Drilling and Core Barrel
| Steel Name | Steel class | Tensile Strength Min.MPA | Yield Strength Min.MPA | Elongation Min % | Hardness HRC | Heat-treatment Condition | Residual hoop stress Max.MPA | Grain Size Min class |
| 45MnMoB | XJY600 | 790 | 600 | 14 | 21-25 | +N | / | 8 |
| 30CrMnSiA | XJY750 | 850 | 750 | 15 | 26-31 | Q+T | / | 8 |
| 42CrMo | XJY850 | 950 | 850 | 15 | 28-33 | Q+T | / | 8 |
| Deviation from straightness | Not more than 0,3 mm per 1 meter of length,total 1/6000 | |||
| Deviation from straightness | Not more than 0,25 mm per 0.2 meter of length from each of the end of pipe | |||
| Tolerance for BQ mother pipe | Deviation of the diameter is 55.75+0,2/-0,2mm, 46.15 +0,2/-0,2mm | |||
| Tolerance for NQ mother pipe | Deviation of the diameter is 70.1+0,15/-0,2mm, 60.4-0,3mm | |||
| Tolerance for HQ mother pipe | Deviation of the diameter is 89+0,38/-0,1mm, 78.1-0,48mm | |||
| Tolerance for PQ mother pipe | Deviation of the diameter is 114.3+0,50, 103.2-0,5mm | |||
| Eccentricity | Not more than 7% | |||
