ASTM A519 Precision Seamless Steel Tube For Hydraulic System
Basic Properties
Place of Origin:
ZHEJIANG, CHINA
Brand Name:
TORICH
Certification:
ISO9001 TS16949
Model Number:
ASTM A 519
Trading Properties
Minimum Order Quantity:
1ton
Price:
USD1000-2000/ton
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
5000 Tons Per Month
Product Summary
ASTM A519 Precision Seamless Steel Tube Torich International Limited is a professional manufacturer and exporter of steel pipes materials. Our main products are precision seamless steel tube,carbon seamless steel tube,The material we usually use for producing precision seamless steel tube is10#,20#...
Product Details
Highlight:
Hydraulic System Seamless Steel Tube
,A519 Precision Seamless Steel Tube
,Automotive Precision Steel Tube
Product Name:
A519 Precision Seamless Steel Tube
Keyword:
Precision Seamless Steel Tube
Application:
Hydraulic System , Automobile
Surface:
Galvanized , Zinc Coated , Polished
Technique:
Seamless， Cold Drawn
Model No:
A519
Place Of Origin:
China
Steel Grade:
10#,20#,1010,1020,1026
Product Description
ASTM A519 Precision Seamless Steel Tube
Torich International Limited is a professional manufacturer and exporter of steel pipes materials.
Our main products are precision seamless steel tube,carbon seamless steel tube,The material we usually use for producing precision seamless steel tube is10#,20#,1010,1020,1026,ST37,ST44,E235,E215,E355.
Delivery condition:
| Designation | Symbol | Description |
| Cold finished (hard) | BK(+C) | Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation |
| Cold finished (Soft) | BKW (+LC) | The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding) |
| Cold finished and stress-relieved | BKS(+SR) | Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
| Annealed | GBK(+A) | The last Cold forming process is followed by annealing in a controlled atmosphere. |
| Normalized | NBK(+N) | The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
Chemical Requirements of Carbon Steels:
| Grade Designation
| Chemical Composition Limits, %A | |||
| Carbon | Manganese | Phosphorus, max | Sulfur, max | |
| 1010 | 0.08–0.13 | 0.30–0.60 | 0.040 | 0.050 |
| 1020 | 0.18–0.23 | 0.30–0.60 | 0.040 | 0.050 |
| 1026 | 0.22–0.28 | 0.60–0.90 | 0.040 | 0.050 |
| 4040 | 0.38–0.43 | 0.75–1.00 | 0.040 | 0.040 |
Application:
Hydraulic system
Automobile
Surface:
Galvanization/Galvanized/Zinc Coated
Surface quality:
Without oxidization
No crack
No fold
No rolling fold
No scar
No laminar defect

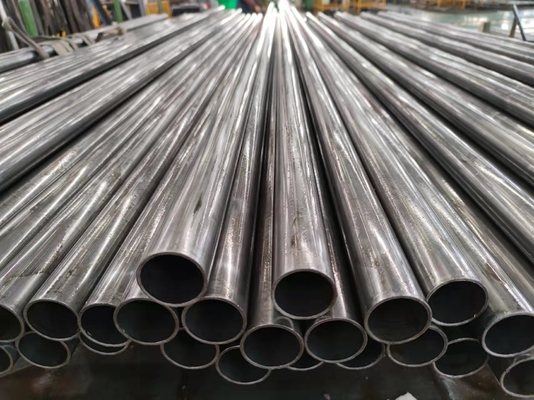

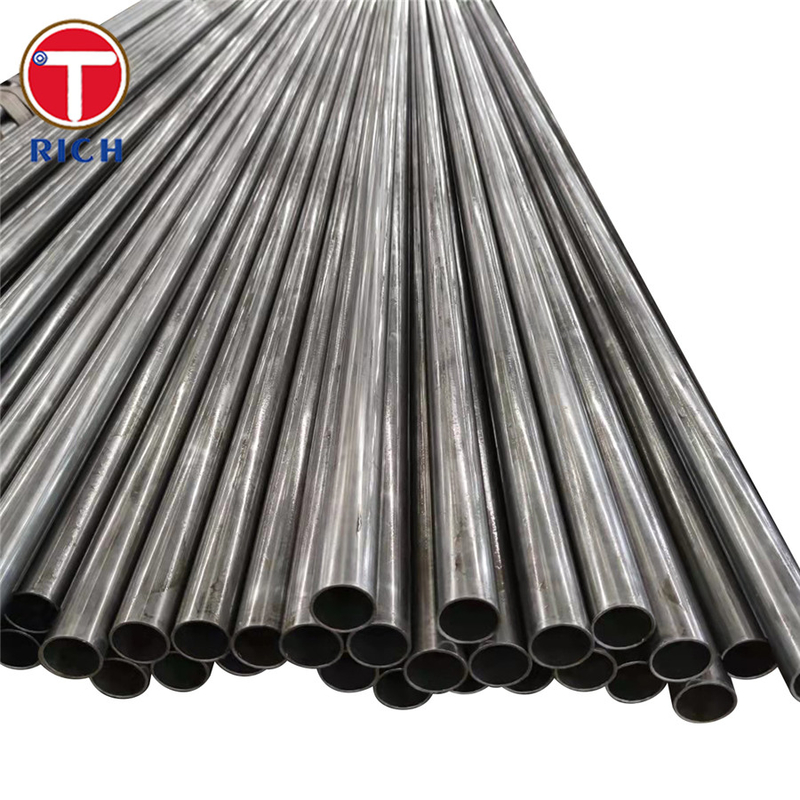

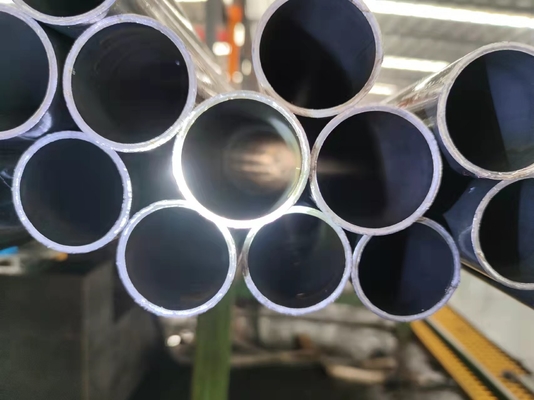

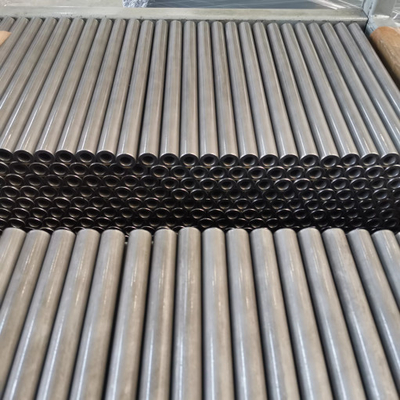

Product show for Precision Seamless Steel Tube:
Work flow for Precision Seamless Steel Tube:
Workshop for Precision Seamless Steel Tube:
Certification for Precision Seamless Steel Tube:
FAQ:
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
