ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5MT | Price : | negotiable |
---|---|---|---|
Packaging Details : | In strong bundles or in wooden box | Delivery Time : | 30~40days |
Payment Terms : | L/C, T/T | Supply Ability : | 7000MT/Month |
Place of Origin: | China | Brand Name: | Torich |
---|---|---|---|
Certification: | ISO 9001:2008 , TS16949 , DNV , GL , PED | Model Number: | DIN 11850 |
Detail Information |
|||
Product Name:: | DIN 11850 X5CrNi1810 Stainless Seamless Steel Pipe For Food Industry | Application:: | For The Food Industry Dimensions,materials |
---|---|---|---|
Standard Materials: | 1.4301 , 1.4571 | Keywords: | Stainless Seamless Steel Pipe |
Type: | Stainless Seamless Steel Pipe | Terms Of Trade: | FOB |
Brand: | Torich | End Protector: | Plain |
Length: | 2-12m | WT: | 0.5-50mm |
High Light: | 304 Seamless Stainless Steel Tubing,Food Industry Stainless Steel Tube 2mm,Plain End Stainless Steel Round Tube |
Product Description

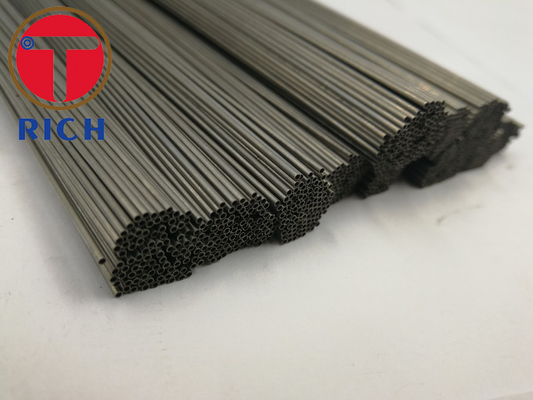

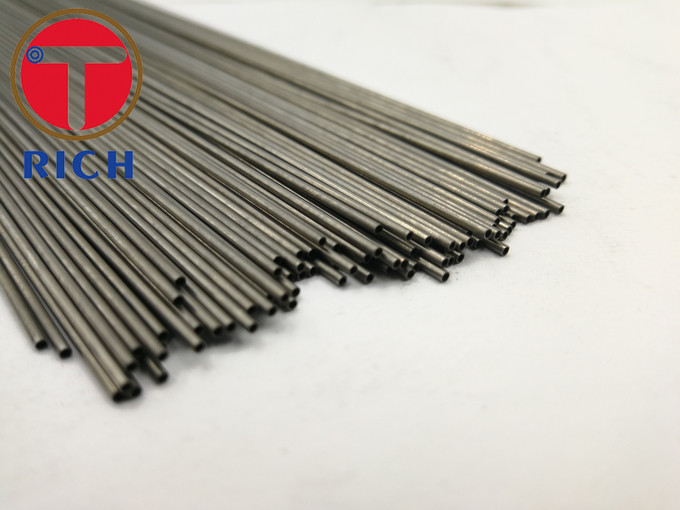

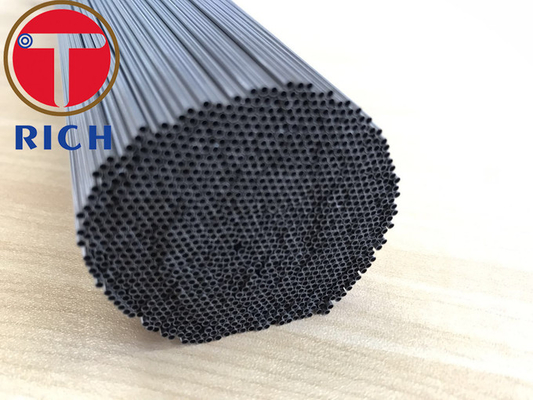

Food Industry 304 Stainless Steel Seamless Tube 2 - 12m X5CrNi1810 X2CrNiMo18143
Materials:
X5CrNi1810 - material number 1.4301
X6CrNiMoTi17122 - material number 1.4571
X6CrNiMo17122 -material number 1.4401
X2CrNiMo18143 -material number 1.4435
X6CrNiTi1810 -material number 1.4541
Minimum Order Quantity: 5MT
Payment Terms: L/C or T/T
Supply Ability: 700MT/Month
Delivery Time: FOB,CFR,CIF are workable
30~60days according detail PO quantity
The dimension and permissible deviations of the pipes:
Nominal |
Series |
Tolerance |
Weight |
remark |
||||
1 |
2 |
3 |
OD.dev |
Wall thickness,dev |
||||
10 |
12 |
|
|
±0.12 |
1.0 |
±10% |
0.27 |
Pipes with greater wall thicknesses than according to series 1 shall be selected from existing pipe standards for this nominal diameter range |
|
13 |
|
±0.3 |
1.5 |
±10% |
0.43 |
||
|
|
14 |
±0.3 |
2.0 |
±10% |
0.60 |
||
15 |
18 |
|
|
±0.12 |
1.0 |
±10% |
0.42 |
|
|
19 |
|
±0.3 |
1.5 |
±10% |
0.66 |
||
|
|
20 |
±0.3 |
2.0 |
±10% |
0.90 |
||
20 |
22 |
|
|
±0.12 |
1.0 |
±10% |
0.51 |
|
|
23 |
|
±0.3 |
1.5 |
±10% |
0.81 |
||
|
|
24 |
±0.3 |
2.0 |
±10% |
1.10 |
||
25 |
28 |
|
|
±0.15 |
1.0 |
±10% |
0.66 |
|
|
29 |
|
±1% |
1.5 |
±10% |
1.03 |
||
|
|
30 |
±0.3 |
2.0 |
±10% |
1.40 |
||
32 |
34 |
|
|
±0.15 |
1.0 |
±10% |
0.82 |
|
|
35 |
|
±1% |
1.5 |
±10% |
1.26 |
||
|
|
36 |
±1% |
2.0 |
±10% |
1.70 |
||
40 |
40 |
|
|
±0.2 |
1.0 |
±10% |
0.97 |
|
|
41 |
|
±1% |
1.5 |
±10% |
1.50 |
||
|
|
42 |
±1% |
2.0 |
±10% |
2.00 |
||
50 |
52 |
|
|
±0.2 |
1.0 |
C10% |
1.26 |
|
|
53 |
|
±1% |
1.5 |
±10% |
1.90 |
||
|
|
54 |
±1% |
2.0 |
±10% |
2.60 |
||
65 |
70 |
|
|
±0.3 |
2.0 |
±10% |
3.43 |
|
80 |
85 |
|
|
±0.3 |
2.0 |
±10% |
4.16 |
|
100 |
104 |
|
|
±0.3 |
2.0 |
±10% |
5.03 |
|
125 |
129 |
|
|
±0.4 |
2.0 |
±10% |
6.36 |
|
150 |
154 |
|
|
±0.4 |
2.0 |
±10% |
7.49 |
Quoted Standards:
DIN 2413 Steel Pipes calculation of the wall thickness to withstand internal pressure
DIN 17456 Seamless circular stainless steel pipes for general requirements technical specifications
DIN 50049 Material test certificates
