S31260 Seamless Welded Stainless Tube For Heat Exchanger
Product Details
Seamless Welded Stainless Tube
,Heat Exchanger Welded Stainless Tube
,S31260 Precision Steel Tube
ASTM A790 S31260 Seamless Welded Stainless Tube for Heat Exchanger
TORICH is a Professional Manufacturer of ASTM A790 S31260 Seamless Welded Stainless Tube, which is for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
We can manacture stainless steel tubes based on the following technical standard:
ASTM A213,ASTM A312,ASTM A511,ASTM A269,ASTM A249,ASTM A358
The Stainless Steel Grade can cover the following:
ASTM A213 TP304 TP304L TP304H TP310S TP316 TP316L TP316H TP317 TP347
ASTM A312 TP304H TP309H TP310H TP316H TP321H TP347H TP348H TP304 TP309S TP310S TP316 TP321 TP347 TP348
ASTM A511 MT304, MT304L, MT309S, MT310S, MT316, MT316L, MT317,MT321, MT347
ASTM A269 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
ASTM A249 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
ASTM A358 TP304
| Producsts Name | ASTM A790 S31260 Seamless Welded Stainless Tube for Heat Exchanger |
| Technical Standard | ASTM A790 S31260 Seamless Welded Stainless Tube |
| Steel Grade/Steel Numbe | S31260 S31200 S31500 S31803 S32001 S32003 S32101 |
| Size Range | OD: 5mm-813mm WT: 0.5-50mm Length: As customer's require Cutting Length: available according to customer's requirement. |
| Delivery Condition | Bright Annealing. Pickling and Solution Heat Treatment. |
| Surface Treatment/Surface Condition | Bright Surface. Dull Surface. Polish Surface. |
| Tube Inspection | 100% Dimensional Check 100% Eddy Current Test (ETD) 100% Ultrasonic Test (UTD Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report. |
| Inspection Istrument | Outside micrometer, wall thickness micrometer, inside dial gauge, vernier caliper, tensile testing machine, hardness tester, eddy current flaw detector, metallographic analyzer, surface roughness meter |
| Tube Application | Fluid and Gas Transport Industry Hydraulic Pressure |
| Production Process | Round steel warehousing → round steel inspection → round steel sawing → central hole drilling → perforation → pickling → cold drawing or cold rolling (finish rolling) → annealing → straightening → head and tail cutting → finished product inspection → packaging → delivery |
Chemical Composition of ASTM A790 S31260 Seamless Welded Stainless Tube
| UNS Designation | C | Mn | P | S | Si | Ni | Cr | Mo |
| S31200 | 0.030 | 2.00 | 0.045 | 0.030 | 1.00 | 5.5-6.5 | 24.0-26.0 | 1.20-2.00 |
| S31260 | 0.030 | 1.00 | 0.030 | 0.030 | 0.75 | 5.5-7.5 | 24.0-26.0 | 2.5-3.5 |
| S31500 | 0.030 | 1.20-2.00 | 0.030 | 0.030 | 1.40-2.00 | 4.3-5.2 | 18.0-19.0 | 2.50-3.00 |
| S31803 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 4.5-6.5 | 21.0-23.0 | 2.5-3.5 |
| S32001 | 0.030 | 4.0-6.0 | 0.040 | 0.030 | 1.00 | 1.0-3.0 | 19.5-21.5 | 0.60 |
| S32003 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 3.0-4.0 | 19.5-22.5 | 1.50-2.00 |
| S32101 | 0.040 | 4.0-6.0 | 0.040 | 0.030 | 1.00 | 1.35-1.70 | 21.0-22.0 | 0.10-0.80 |
| S32202 | 0.030 | 2.00 | 0.040 | 0.010 | 1.00 | 1.00-2.80 | 21.5-24.0 | 0.45 |
| S32205 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| S32304 | 0.030 | 2.50 | 0.040 | 0.040 | 1.00 | 3.0-5.5 | 21.5-24.5 | 3-5 |
| S32506 | 0.030 | 1.00 | 0.040 | 0.015 | 0.90 | 5.5-7.2 | 24.0-26.0 | 2.9-3.9 |
| S32520 | 0.030 | 1.50 | 0.035 | 0.020 | 0.80 | 5.5-8.0 | 23.0-25.0 | 4.0-5.0 |
| S32550 | 0.04 | 1.50 | 0.040 | 0.030 | 1.00 | 4.5-6.5 | 24.0-27.0 | 3.0-5.0 |
| S32707 | 0.030 | 1.50 | 0.035 | 0.010 | 0.50 | 5.5-9.5 | 26.0-29.0 | 3.0-4.0 |
| S32750 | 0.030 | 1.20 | 0.035 | 0.020 | 0.80 | 6.0-8.0 | 24.0-26.0 | 0.80-1.20 |
| S32760 | 0.030 | 1.00 | 0.030 | 0.010 | 1.00 | 6.0-8.0 | 24.0-26.0 | 1.00-2.00 |
| S32808 | 0.030 | 1.10 | 0.030 | 0.010 | 0.50 | 7.0-8.2 | 27.0-27.9 | 0.80-2.00 |
| S32900 | 0.08 | 1.00 | 0.040 | 0.030 | 0.75 | 2.5-5.0 | 23.0-28.0 | 1.00-2.00 |
| S32906 | 0.030 | 0.80-1.50 | 0.030 | 0.030 | 0.80 | 5.8-7.5 | 28.0-30.0 | 1.50-2.60 |
| S32950 | 0.030 | 2.00 | 0.035 | 0.010 | 0.60 | 3.5-5.2 | 26.0-29.0 | 1.00-2.50 |
| S33207 | 0.030 | 1.50 | 0.035 | 0.010 | 0.80 | 6.0-9.0 | 29.0-33.0 | 3.0-5.0 |
| S39274 | 0.030 | 1.00 | 0.030 | 0.020 | 0.80 | 6.0-8.0 | 24.0-26.0 | 2.5-3.5 |
| S39277 | 0.025 | 0.80 | 0.025 | 0.002 | 0.80 | 6.5-8.0 | 24.0-26.0 | 2.00-4.00 |
| S82011 | 0.030 | 2.0-3.0 | 0.040 | 0.020 | 1.00 | 1.00-2.00 | 20.5-23.5 | 0.10-1.00 |
| S82441 | 0.030 | 2.50-4.00 | 0.035 | 0.005 | 0.70 | 3.0-4.5 | 23.0-25.0 | 1.00-2.00 |
Keywords of ASTM A790 S31260 Seamless Welded Stainless Tube
duplex stainless steel
ferritic/austenitic stainless steel
seamless steel tube
stainless steel tube
steel tube
welded steel tube
Workmanship,Finish and Appearance of ASTM A790 S31260 Seamless Welded Stainless Tube
The finished pipes shall be reasonably straight and shall have a workmanlike finish.Imperfections may be removed by grinding,provided the wall thickness are not decreased to less than that permitted,in the Permissible Variations in Wall Thickness Section of Specification A999/A999M.
Materials and Manufacture of ASTM A790 S31260 Seamless Welded Stainless Tube
Manufacture:
The pipe shall be made by the seamless or an automatic welding process,with no addition of filler metal in the welding operation.
At the manufacturer's option,pipe may be either hot-finished or cold-finished.
The pipe shall be pickled free of scale.When bright annealing is used,pickling is not necessary.
Discard-A sufficient discard shall be made from each ignore to secure freedom from injurious piping and undue segregation.
Unless otherwise stated in the order,all pipe shall be furnished in the heat-treated condition.
For seamless pipe,as an alternate to final heat treatment in a continuous furnace or batch-type furnace,immediately following hot forming while the temperature of the pipes is not less than the specified minimum solution treatment temperature,pipes shall be individually quenched in water or rapidly cooled by other means,except for UNS S32950,which shall be air cooled.

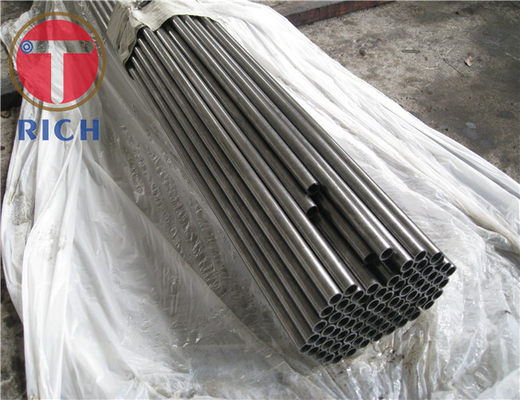

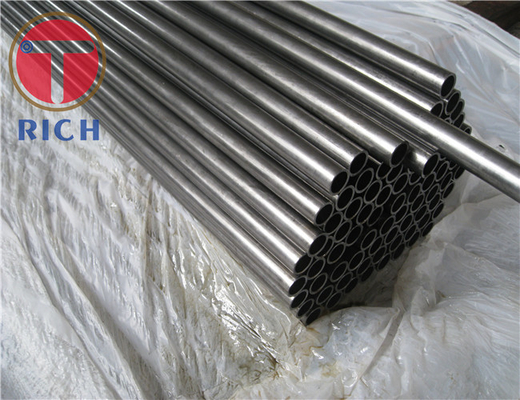

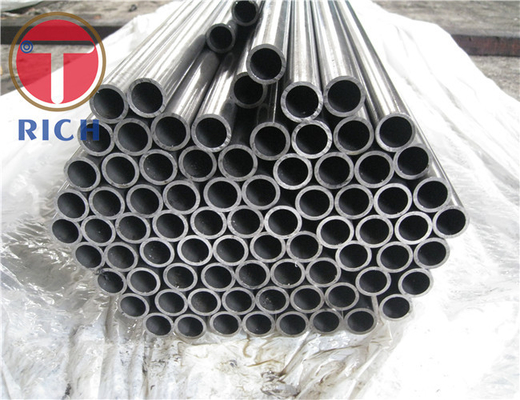

Production Display of ASTM A790 S31260 Seamless Welded Stainless Tube
Products Application of ASTM A790 Seamless Welded Stainless Tube for Heat Exchanger
Production Process of ASTM A790 S31260 Seamless Welded Stainless Tube
Production Workshop of ASTM A790 S31260 Seamless Welded Stainless Tube
Delivery and Packing of ASTM A790 S31260 Seamless Welded Stainless Tube
FAQ of ASTM A790 S31260 Seamless Welded Stainless Tube
1. who are we?
TORICH is not only professional manufacturer and exporter, but also international marketing
and sales company in the field of steel tubes from China. Our factory was established in 1997
with the name of Haiyan Sanxin Steel Pipe Co., Ltd. Our technicians are equipped with great
engineering experience in steel pipe industry for more than 22 years, they have great comma-
nd of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and
inspection. So we have a strong technician team and manufacturing capability.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stainless Steel/Carbon Steel/AlloySteel,Titanium,Copper/Brass,etc.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Deliv-
ery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
-
