ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1ton | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | in bundles or in wooden box | Delivery Time : | 4-8 weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5000Tons per Year |
| Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | ASTM A376 |
|
Detail Information |
|||
| Product Name: | ASTM A376 TP304 Seamless Welded Steel Tube For Nuclear Power Fluctuation And Power Station | Grade: | TP304 TP304N TP304LN TP316 TP316N TP316LN TP321 TP347 TP348 |
|---|---|---|---|
| Surface: | Bright Annealing | Outer Diameter: | 5-813mm |
| Thickness: | 0.5-50mm | Length: | Max12000mm |
| Welding Line Type: | ERW | Application: | Nuclear Power Fluctuation And Power Station |
| High Light: | Seamless Welded Steel Tube,Nuclear Power Station Welded Steel Tube,TP304 Stainless Steel Round Tube |
||
Product Description
ASTM A376 TP304 Seamless Welded Steel Tube for Nuclear Power Fluctuation and Power Station
TORICH is a Professional Manufacturer of ASTM A511 MT304 Seamless Stainless Steel, which is for Seamless and Welded Stainless Steel Tubing for General Service
We can manacture stainless steel tubes based on the following technical standard:
ASTM A213,ASTM A312,ASTM A511,ASTM A269,ASTM A249,ASTM A358
The Stainless Steel Grade can cover the following:
ASTM A213 TP304 TP304L TP304H TP310S TP316 TP316L TP316H TP317 TP347
ASTM A312 TP304H TP309H TP310H TP316H TP321H TP347H TP348H TP304 TP309S TP310S TP316 TP321 TP347 TP348
ASTM A511 MT304, MT304L, MT309S, MT310S, MT316, MT316L, MT317,MT321, MT347
ASTM A269 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
ASTM A249 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
ASTM A358 TP304
| Producsts Name | ASTM A376 TP304 Seamless Welded Steel Tube for Nuclear Power Fluctuation and power station |
| Technical Standard | ASTM A376 TP304 Seamless Welded Steel Tube |
| Steel Grade/Steel Numbe | TP304 TP304LN TP304N TP321 TP347 TP316 TP316LN TP316N TP348 |
| Size Range | OD: 5mm-813mm WT: 0.5-50mm Length: max 12000mm Cutting Length: available according to customer's requirement. |
| Delivery Condition | Bright Annealing. Pickling and Solution Heat Treatment. |
| Surface Treatment/Surface Condition | Bright Surface. Dull Surface. Polish Surface. |
| Tube Inspection | 100% Dimensional Check 100% Eddy Current Test (ETD) 100% Ultrasonic Test (UTD Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report. |
| Inspection Istrument | Outside micrometer, wall thickness micrometer, inside dial gauge, vernier caliper, tensile testing machine, hardness tester, eddy current flaw detector, metallographic analyzer, surface roughness meter |
| Tube Application | Nuclear Power Fluctuation and Power Station |
| Production Process | Round steel warehousing → round steel inspection → round steel sawing → central hole drilling → perforation → pickling → cold drawing or cold rolling (finish rolling) → annealing → straightening → head and tail cutting → finished product inspection → packaging → delivery |
Chemical Composition of ASTM A376 TP304 Seamless Welded Steel Tube
| Material | C≤ | Mn≤ | P≤ | S≤ | Si≤ |
| TP304 | 0.8 | 2.00 | 0.045 | 0.030 | 0.75 |
| TP304N | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 |
| TP304LN | 0.035 | 2.00 | 0.045 | 0.030 | 0.75 |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 |
| TP316N | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 |
| TP316LN | 0.035 | 2.00 | 0.045 | 0.030 | 0.75 |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 |
| TP348 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 |
Tensile Requirements of ASTM A376 TP304 Seamless Welded Steel Tube:
| Grade | Tensile Strength min ksl[Mpa] |
Yield Strength min ksl[Mpa] |
Elongation in 2 in or 50mm(or 4D)min,% Longitudinal |
Transverse |
|
TP304 TP304H TP304LN TP316 TP316H TP316LN TP347 TP347H TP347LN TP348 TP348H 16-8-2H S31725 |
75 [515] |
30 [205] |
35 | 25 |
|
TP304N TP316N S31726 |
80 [550] |
35 [240] |
35 | 25 |
| S34565 |
115 [790] |
60 [415] |
35 | 30 |
|
TP321 321H≤0.375in[9.50mm] S31266 |
75 [515] 70 [480] 109 [750] |
30 [205] 25 [170] 61 [420] |
35 35 35 |
25 25 25 |
Keywords of ASTM A376 TP304 Seamless Welded Steel Tube
austenitic stainless steel
central station service
feed water heater tubes
stainless steel tube
welded steel tube
Materials and Manufacture of ASTM A376 TP304 Seamless Welded Steel Tube
Manufacture-At the manufacturer's option,pipe may be either hot finished or cold finished,with a suitable finishing treatment,where neccessary.
Heat Treatment:
All pipe shall be furnished in the heat-treated condition unless the order specifically states that no final heat treatment shall be applied.When the order is furnished without final heat treatment,each pipe shall be stenciled "HT-O."
As an alternate to final heat treatment in a continuous fumace or batch-type fumace,immediately following hot forming while the temperature of the pipes is not less than the specified minimum solution treatment temperature,pipes may be individually quenched in water or rapidly cooled by other means .

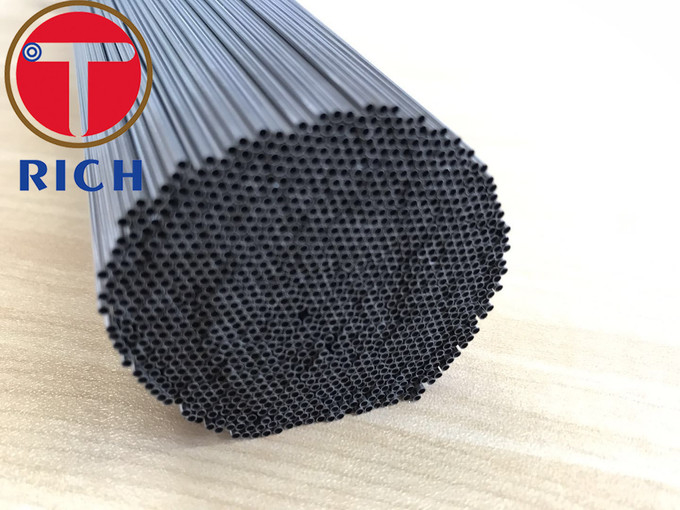

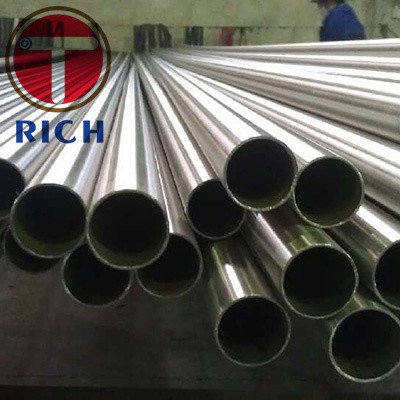

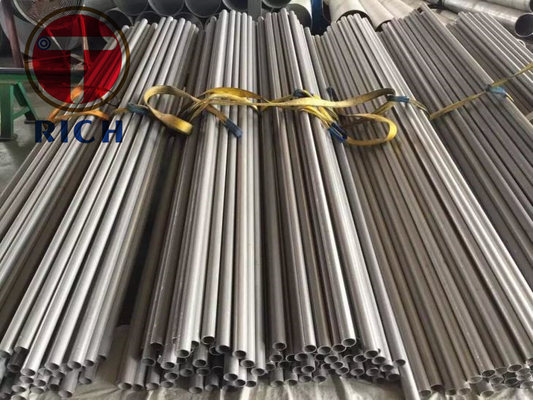

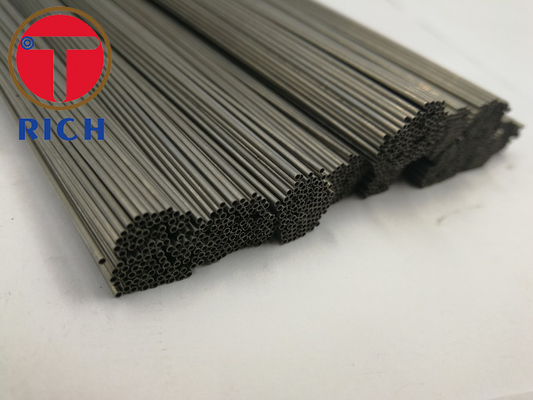

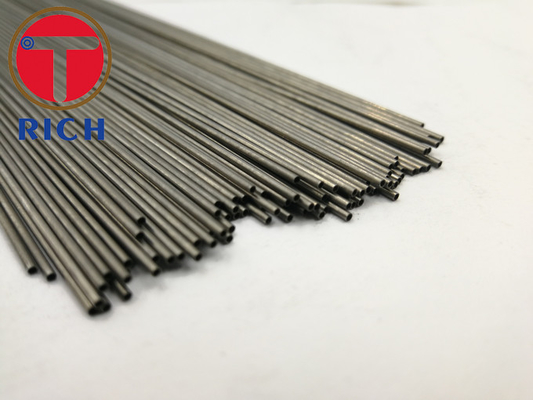

Prodution Pictures for ASTM A376 TP304 Seamless Welded Steel Tube
Products Application of ASTM A376 TP304 Seamless Welded Steel Tube
Production Process for ASTM A376 TP304 Seamless Welded Steel Tube
Production Workshop for ASTM A376 TP304 Seamless Welded Steel Tube
Delivery and Packing of ASTM A376 TP304 Seamless Welded Steel Tube
