ASTM A519 1035 Seamless Carbon And Alloy Steel Mechanical Tubing For Hydraulic
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5Tons | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | in bundles or in wooden box | Delivery Time : | 4-8weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Tons Per year |
| Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | ASTM A213 |
|
Detail Information |
|||
| Standard: | ASTM | Grade: | TP304 TP304L TP304H TP310S TP316 TP316L TP316H TP317L TP347 |
|---|---|---|---|
| OD: | 5mm-813mm | WT: | 0.5mm-100mm |
| Application: | Boiler And Heat Exchanger | Section Shape: | Round |
| Products Name: | SA213 TP304 Steel Seamless Tube For Superheater And Heat Exchanger | Brand: | TORICH |
| High Light: | TP304 Stainless Steel Seamless Tube,Superheater Seamless Steel Pipe,Round Seamless Stainless Tube |
||
Product Description
SA213 TP304 Steel Seamless Tube for Superheater and Heat Exchanger
TORICH is a Professional Manufacturer of ASTM A511 MT304 Seamless Stainless Steel, which is for Seamless and Stainless Steel Tubing for General Service
We can manacture stainless steel tubes based on the following technical standard:
ASTM A213,ASTM A312,ASTM A511,ASTM A269,ASTM A249,ASTM A358
The Stainless Steel Grade can cover the following:
ASTM A213 TP304 TP304L TP304H TP310S TP316 TP316L TP316H TP317 TP347
ASTM A312 TP304H TP309H TP310H TP316H TP321H TP347H TP348H TP304 TP309S TP310S TP316 TP321 TP347 TP348
ASTM A511 MT304, MT304L, MT309S, MT310S, MT316, MT316L, MT317,MT321, MT347
ASTM A269 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
ASTM A249 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
ASTM A358 TP304
| Producsts Name | SA213 TP304 Steel Seamless Tube for Superheater and Heat Exchanger |
| Technical Standard | ASTM A213 TP304 Seamless Tubing |
| Steel Grade/Steel Numbe | TP304 TP304L TP304H TP310S TP316 TP316L TP316H TP317L TP347 |
| Size Range | OD: 5mm-813mm WT: 0.5-100mm Length: max 12000mm Cutting Length: available according to customer's requirement. |
| Delivery Condition | Bright Annealing. Pickling and Solution Heat Treatment. |
| Surface Treatment/Surface Condition | Bright Surface. Dull Surface. Polish Surface. |
| Tube Inspection | 100% Dimensional Check 100% Eddy Current Test (ETD) 100% Ultrasonic Test (UTD Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report. |
| Inspection Istrument | Outside micrometer, wall thickness micrometer, inside dial gauge, vernier caliper, tensile testing machine, hardness tester, eddy current flaw detector, metallographic analyzer, surface roughness meter |
| Tube Application | Boiler and Heat Exchanger |
| Production Process | Round steel warehousing → round steel inspection → round steel sawing → central hole drilling → perforation → pickling → cold drawing or cold rolling (finish rolling) → annealing → straightening → head and tail cutting → finished product inspection → packaging → delivery |
Chemical Composition of SA213 TP304 Steel Seamless Tube
| Material | C | Mn | P | S | Si |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP304H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP201 | 0.15 | 5.5--7.5 | 0.060 | 0.030 | 1.00 |
| TP310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP317L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| Stainless Steel Mechanical Properties | ||||||
| Grade | Tensile Strength | Yide Strength | Elogation | Hardness | Solution | |
| Annealing | ||||||
| kgf/mm²(N/mm²) | kgf/mm²(N/mm²) | % | HRB(HV) | ºC | ||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) | 1040ºC-1150ºC |
| TP 304L | ≥50 (485) | ≥17 (170) | Water Quenching | |||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||
| TP 316L | ≥50 (485) | ≥17 (170) | ||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) | 1010ºC-1150ºC | ||
| SUS 304L | ≥49 (480) | ≥18 (175) | Water Quenching | |||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) | 1010ºC-1150ºC | ||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | Water Quenching | |||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) | ||||
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) | ||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 | 1000ºC-1100ºC | |
| 1.4307 | (470-670) | ≥18 (180) | Water Quenching | |||
| 1.4401 | (510-710) | ≥21 (205) | 1020ºC-1120ºC | |||
| 1.4404 | (490-690) | ≥19 (195) | Water Quenching | |||

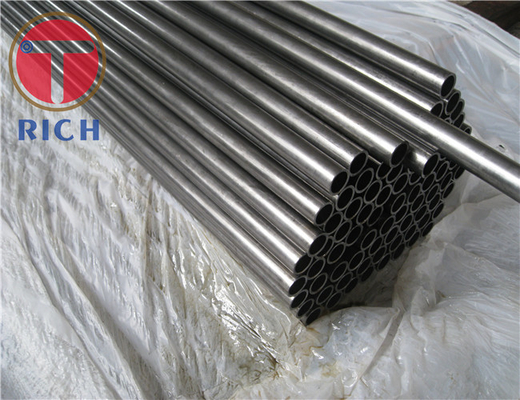

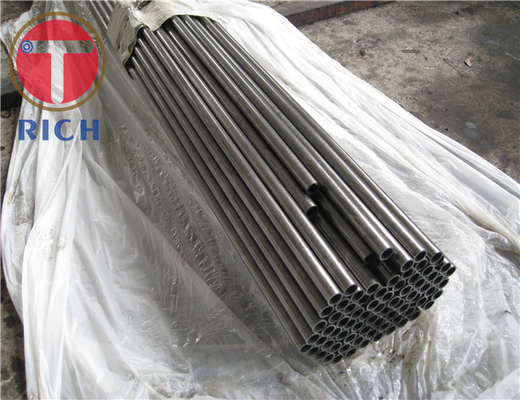

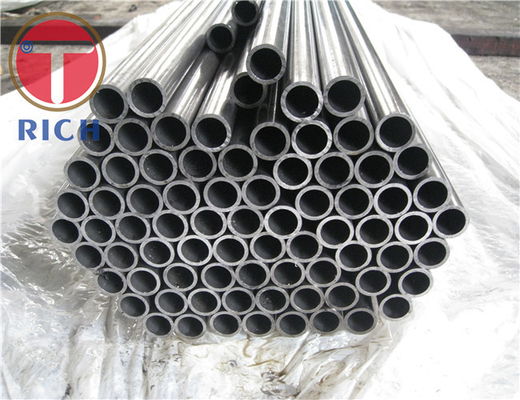

Products Display of SA213 TP304 Steel Seamless Tube
Products Application of Boiler and Heat Exchanger
Production Process of A213 TP304 Steel Seamless Tube
Products Workshop of A213 TP304 Steel Seamless Tube
Delivery and Packing of A213 TP304 Steel Seamless Tube
FAQ of A213 TP304 Steel Seamless Tube
1. who are we?
TORICH is not only professional manufacturer and exporter, but also international marketing and sales company in the field of steel tubes from China. Our factory was established in 1997, with the name of Haiyan Sanxin Steel Pipe Co., Ltd. Our technicians are equipped with great engineering experience in steel pipe industry for more than 22 years, they have great command of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and inspection. So we have a strong technician team and manufacturing capability.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stainless Steel/Carbon Steel/AlloySteel,Titanium,Copper/Brass,etc.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
