15mm 304 316 Stainless Steel Hydraulic Honed Tube Bright Annealed
Product Details
Stainless Steel Hydraulic Honed Tube
,Bright Annealed Hydraulic Honed Tube
,Stainless Steel Tube 15mm

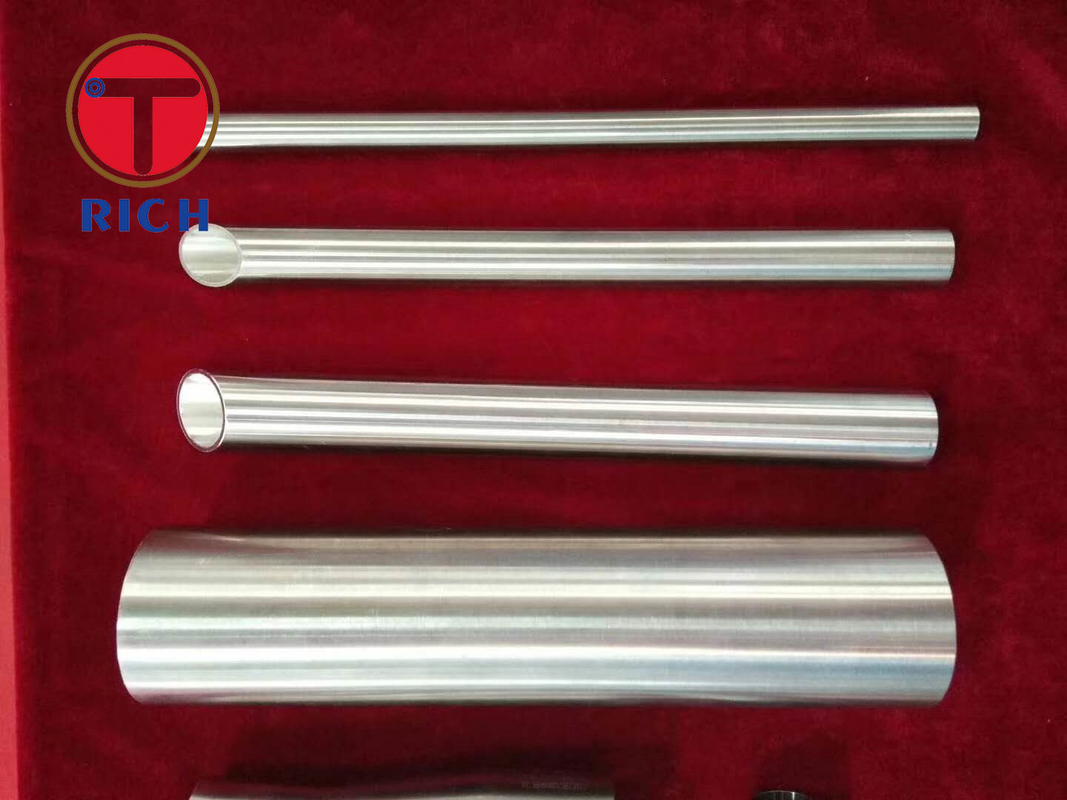

15mm 304 316 Bright Annealed Stainless Steel Tube Hydraulic Honed Tube
Torich produces Bright Annealed Stainless Steel Tubes (shortening to BA tubes ), based on stanadard ASTM A269/ASTM A270/ ASME A270-BPE/EN10216-5/EN10305-1/ISO 1127 ,material 304/304L 316/316L 1.4301/1.4307 1.4404/1.4435.
Quick detail
Size range:
OD : 1/4" -4"
WT:0.035"-0.065"
Length: 6m or as per customer requests.
Material :304 304L 316L 316Ti 321 347H 310S 904L 2205 2507 2520 C276
Shape: Round
Density (g/cm³):
7.93g/cm³ 304 304L 321 7.98g/cm³ 310S 316 316L
Scope of use:

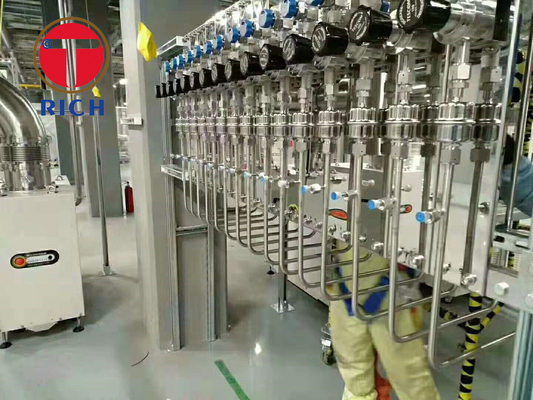

Semiconductor High Purity Gas Pipeline High Pressure Boiler Food Industry Heat Exchange Tube Biomedicine Air Conditioning Equipment Hydraulic Equipment Water Conservancy and Electricity Chemical Equipment Edible Machinery Pressure Vessel Metal Processing Sanitary Ware Automation Industry Rail Transit Ship Industry
Tolerance Accuracy:
Tolerance ±0.05mm (limit tolerance 0.02mm)
Length:
3000mm-12000mm (can be customized)
Surface treatment:
Outer surface Ra0.2μm Inner surface Ra0.3μm
Tensile strength:
≥626
Elongation:
≥40%
Hardness:
HRC≤29.75 HV≤300
Yield Strength (N/mm2):
≥300
Why do you choose to buy BA stainless steel tube from Torich.
1
Selected Raw Materials
316L SS UHP tubes&pipes are manufactued from a specially selected mother pipes, controlled lower content of sulfur levels to promote reliable, consistent welding.
2
Various Material Type And Tube/Pipe Type
Seamless, Semi-Seamless and Welded types are available for wide selection and cost saving options
3
Chemically And Ultra High Purity/UHP Cleaned
BA&EP grade tubes & pipes are chemically cleaned and passivated to keep nonvolatile residue levels to comply with ASTM G93 or SEMI E 49.6. UHP tubes & pipes are rinsed with 18MΩ di water and purged with 99.9995% filtered nitrogen and are packed in an class 10 cleanroom.
4
Traceability And Clean Packaging
Each tube&pipes is marked to identify manufacturer, material type and heat code. BA&EP grade tubes&pipes are packed as following manner:eds are faced and protected with polyamide nylon film and polyethylene caps, packed in single(BA grade) or double(EP grade) polyethylene bags.
5
Professional Inspection Equipment
We have a variety of professional inspection equipment: Scanning Electron Microscope (SEM), Energy Dispersive Spectroscopy (EDS), Surface Roughness Gauge, Particle Counter, Micro Vickers, Moisture Analyzer, Metallography Microscope, Tensile Testing Machined etc.
Chemical Composition
| Material | C | Mn | P | S | Si |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| Stainless Steel Mechanical Properties | ||||||
| Grade | Tensile Strength | Yide Strength | Elogation | Hardness | Solution | |
| Annealing | ||||||
| kgf/mm²(N/mm²) | kgf/mm²(N/mm²) | % | HRB(HV) | ºC | ||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) | 1040ºC-1150ºC |
| TP 304L | ≥50 (485) | ≥17 (170) | Water Quenching | |||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||
| TP 316L | ≥50 (485) | ≥17 (170) | ||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) | 1010ºC-1150ºC | ||
| SUS 304L | ≥49 (480) | ≥18 (175) | Water Quenching | |||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) | 1010ºC-1150ºC | ||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | Water Quenching | |||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) | ||||
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) | ||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 | 1000ºC-1100ºC | |
| 1.4307 | (470-670) | ≥18 (180) | Water Quenching | |||
| 1.4401 | (510-710) | ≥21 (205) | 1020ºC-1120ºC | |||
| 1.4404 | (490-690) | ≥19 (195) | Water Quenching | |||
Size list of Bright annealed stainless steel tubes
| OD 4.76 | WT 0.71 0.89 1.24 |
| OD 6 | WT 1 1.5 |
| OD 6.35 | WT 0.71 0.89 1.24 1.65 |
| OD 7.94 | WT 0.71 0.89 1.24 1.65 |
| OD 9.53 | WT 0.71 0.89 1.24 1.65 |
| OD 10 | WT 1 1.5 |
| OD 12 | WT 1 1.5 2 |
| OD 12.7 | WT 0.71 0.89 1.24 1.65 2.11 |
| OD 14 | WT 1 1.5 2 |
| OD 15.88 | WT 0.89 1.24 1.65 2.11 |
| OD 16 | WT 1 1.5 2 |
| OD 19.05 | WT 0.89 1.24 1.65 2.11 |
| OD 25.4 | WT 0.89 1.24 1.65 2.11 |
-
