Precision Thin Wall Stainless Steel Tube 304 Bright Annealing

Minimum Order Quantity : 500kg Price : negotiable
Packaging Details : wooden box Delivery Time : 30-45 DAYS
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram Supply Ability : 5000TON PER YEAR
Place of Origin: Zhejiang,China Brand Name: TORICH
Certification: ISO9001 ISO14001 TS16949 Model Number: ASTM A249/269/213

Detail Information

Product Name: Precision Thin Wall Stainless Steel Tube 304 Bright Annealing Keyword: Precision Thin Wall Stainless Steel Tube
Usage: For Condenser,Heat Exchanger,Evaporator Use Material: 316L 316 304 201
Type: Seamless Shape: Round
OD: 3-24.5mm WT: 0.3-2.0mm
General Delivery Length: 200-1000mm Brand: TORICH
High Light:

Seamless Stainless Steel Precision Tube

,

Bright Annealed Seamless Precision Tube

,

304 Stainless Steel Precision Tube

Product Description

Precision Thin Wall Stainless Steel Tube 304 Bright Annealing



D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1

304 Stainless Steel Seamless Precision Pipe as per following standard:

ASTM A213 ASTM A269 EN10216-5 TC-1

Tolerance:D4/T3 (±0.5%,±0.1 min)/(±10%,±0.2 min)

NDT Tests:Eddy Current or Hydraulic Test or UT

Heat treatment on tubes: Bright Annealed

stainless seamless tube

Quality Assurance: ISO 9001&PED 97/23/EC certificated with 100% traceability on all instrument tubes and material test reports(EN 10204/3.1B)accompany every shipment upon request.



Application for Precision Thin Wall Stainless Steel Tube:
Instrument Tubing
Chromatography tubing
Hydraulic Tubing
High Pressure Tubing
Cleaned Tubing
Multi Core Tubing

Stainless Steel Mechanical Properties
Grade Tensile Strength Yide Strength Elogation Hardness Solution
Annealing
kgf/mm²(N/mm²) kgf/mm²(N/mm²) % HRB(HV) ºC
ASTM TP 304 ≥53 (515) ≥21 (205) ≥35 ≤90 (200) 1040ºC-1150ºC
TP 304L ≥50 (485) ≥17 (170) Water Quenching
TP 316 ≥53 (515) ≥21 (205)
TP 316L ≥50 (485) ≥17 (170)
JIS SUS 304 ≥53 (520) ≥21 (205) 1010ºC-1150ºC
SUS 304L ≥49 (480) ≥18 (175) Water Quenching
SUS 316 ≥53 (520) ≥21 (205)
SUS 316L ≥49 (480) ≥18 (175)
GB 06Cr19Ni10 ≥53 (520) ≥21 (210) 1010ºC-1150ºC
022Cr19Ni10 ≥49 (480) ≥18 (180) Water Quenching
06Cr17Ni12Mo2 ≥53 (520) ≥21 (210)
022Cr17Ni12Mo2 ≥59 (480) ≥18 (180)
EN 1.4301 (500-700) ≥20 (195) ≥40 1000ºC-1100ºC
1.4307 (470-670) ≥18 (180) Water Quenching
1.4401 (510-710) ≥21 (205) 1020ºC-1120ºC
1.4404 (490-690) ≥19 (195) Water Quenching

Why choose bright annealed tube?

1.Superior Surface Finish
The traditional annealing :Open furnace---Oxygen atmosphere---form Scale, tarnish the material,For more than 12m tubes this method is hard to clean inner surface.

A special bright annealing:Closed furnace---Intert atmosphere use noble gases(Nitrogen and argon)Preventing Oxygen to contact with marterial ---Surface finish is clean,bright and precision,which is an excellent starting point for further process,like electro-polishing and mechanical polishing. For more than 12m tubes,this method is much cleaner smoother on both inner and outer surface.



2.Better Mechanical Property

The temperature of furnace can reach more than 1350℃,and the tolerance for setting and real temperature can be controlled whithin +/-2℃,which is impossible for the traditional annealing.



3.Perfect Inspection Method And Inspection Equipment
100%PMI test
100%Hydraulic test
100%Inner cleaned by sponge
100%Dimension test
100%Surface test

Quality of precision drawn tubing is same to precision rolling.



4.More Precision Dimension
Advanced cold drawn technology from Japan and Korean,Making the close dimension controls.

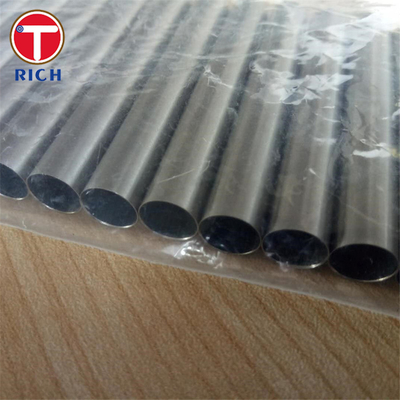

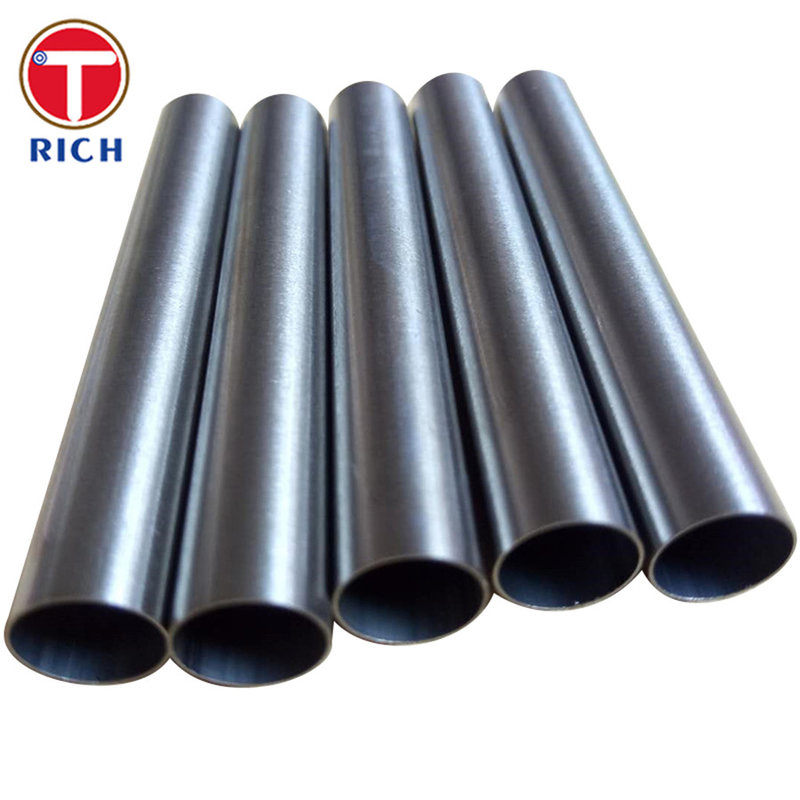

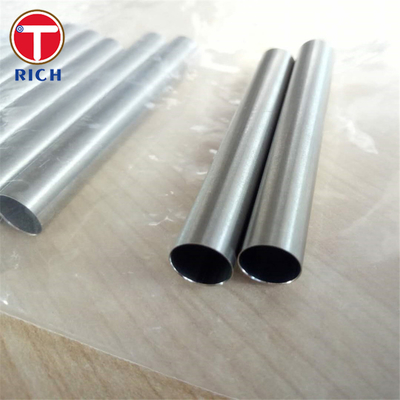

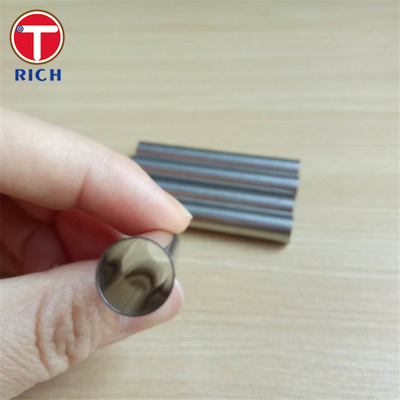

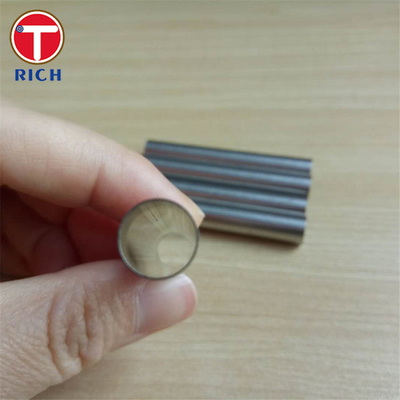

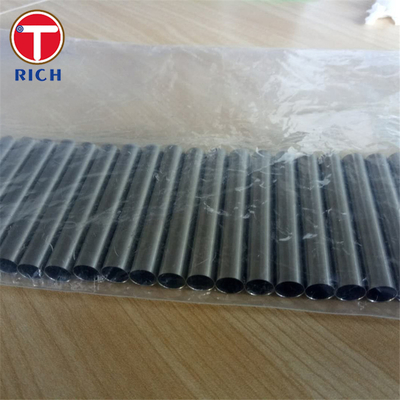

Precision Thin Wall Stainless Steel Tube 304 Bright Annealing 0

Precision Thin Wall Stainless Steel Tube 304 Bright Annealing 1Precision Thin Wall Stainless Steel Tube 304 Bright Annealing 2

Precision Thin Wall Stainless Steel Tube

Precision Thin Wall Stainless Steel Tube

Precision Thin Wall Stainless Steel Tube 304 Bright Annealing 5

Precision Thin Wall Stainless Steel Tube 304 Bright Annealing 6





FAQ

------------------------------------------------------------------------------------------------------------------------------------------------------

1. Can you provide free samples?
A: Yes, we can provide you the samples in store for free, but the freight shall be paid by your side.
2. How do you control quality ?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
3. What are the advantages of your company ?
A: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
5.Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
6. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
7.Which price terms could accepted?
A: FOB,CRF,CIF,EXW all acceptable.
8.What is your terms of payment ?
A: Usually 30% deposit by TT in advance and balance against copy of BL or L/C at sight.
9. How long is your delivery time?
A: For Stocks, we can send the goods to loading port within 7-15 days after receiving the deposit;For production period, it usually needs about 30 days after receiving the deposit.
