OD 0.035″ – 0.065″ WT High Purity Systems Sanitary Pipe For Gas
Product Details
High Purity Systems Sanitary Pipe 0.035″
,Gas Sanitary Tube
,High Purity Stainless Steel Tube
1/4″ – 4″ OD 0.035″ – 0.065″ WT High Purity Systems (HPS) Sanitary Pipe And Tube For Gas
Quick detail
Size range:
OD : 1/4" -4"
WT:0.035"-0.065"
Length: 6m or as per customer requests.
Material : 304 ,304L 316 316L
Torich producing High Purity System HPS pipes is also called Bright Annealing Tubes,Gas linepipes,
clean pipes.At the same time, it is the base material of EP pipe. Mostly used in biopharmaceuticals,
clean workshops,
high-purity gases, clean laboratories.
Torance of precision stainless steel pipes:
±0.02mm
The surface HPS tubes is bright as a mirror,surface roughness is 0,4μm.
The Tolerance of ID of EP pipe:
±0.05mm
Why do you choose to buy High Purity Systems Precision Stainless Steel Tubes from Torich.
1.R L The service life of the polymer densification process is extended by 3 times
2.35 national standard craftsmanship processes to ensure the quality of coffins
3. 1250 reading high temperature vacuum solid solution, bending does not crack
4.820 kinds in stock, 100 tons in stock, and delivery in 3-10 days
What we make the higher quality of EP pipes from other supplier.
1.21 cycle testing and strict quality control
2.Degreasing clean
3.Dust-free and oil-free
4.Acid degreasing time 21H+ clean, dust-free and oil-free
5.Branch water pressure test
6.Eddy current inspection, dark damage and cracks cannot escape
Chemical Composition
| Material | C | Mn | P | S | Si |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| Stainless Steel Mechanical Properties | ||||||
| Grade | Tensile Strength | Yide Strength | Elogation | Hardness | Solution | |
| Annealing | ||||||
| kgf/mm²(N/mm²) | kgf/mm²(N/mm²) | % | HRB(HV) | ºC | ||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) | 1040ºC-1150ºC |
| TP 304L | ≥50 (485) | ≥17 (170) | Water Quenching | |||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||
| TP 316L | ≥50 (485) | ≥17 (170) | ||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) | 1010ºC-1150ºC | ||
| SUS 304L | ≥49 (480) | ≥18 (175) | Water Quenching | |||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) | 1010ºC-1150ºC | ||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | Water Quenching | |||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) | ||||
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) | ||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 | 1000ºC-1100ºC | |
| 1.4307 | (470-670) | ≥18 (180) | Water Quenching | |||
| 1.4401 | (510-710) | ≥21 (205) | 1020ºC-1120ºC | |||
| 1.4404 | (490-690) | ≥19 (195) | Water Quenching | |||

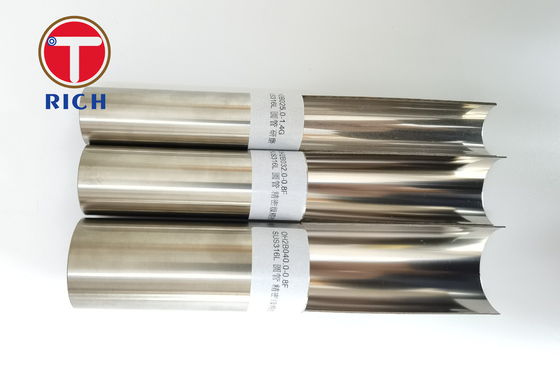

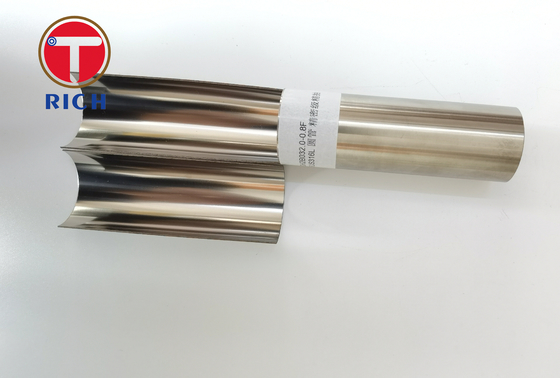

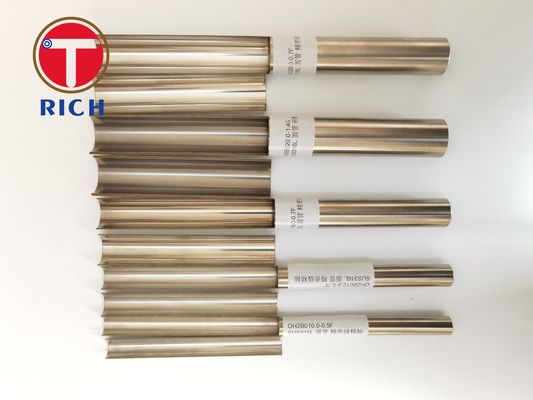

High Purity Systems (HPS) Stianless steel tubes photos show:
Application
semiconductor
medical catheter
food and drink
Pharmaceutical
Ultra-high tube heat exchanger

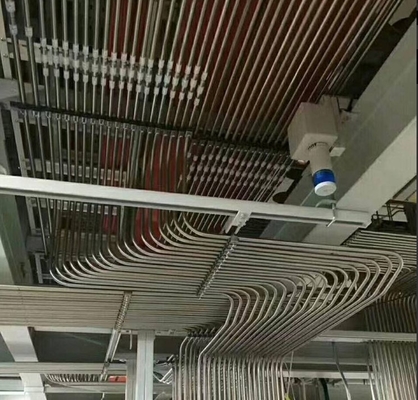

High Purity Gas and Fluid Piping Systems
-
