SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure
Product Details
SA269 Seamless Stainless Steel Tube
,Hydraulic Pressure Fluid Precision Steel Pipe
,Gas Seamless Steel Pipe
SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure
TORICH is a Professional Manufacturer of ASTM A511 MT304 Seamless Stainless Steel, which is for Seamless and Welded Stainless Steel Tubing for General Service
We can manacture stainless steel tubes based on the following technical standard:
ASTM A213,ASTM A312,ASTM A511,ASTM A269,ASTM A249,ASTM A358
The Stainless Steel Grade can cover the following:
ASTM A213 TP304 TP304L TP304H TP310S TP316 TP316L TP316H TP317 TP347
ASTM A312 TP304H TP309H TP310H TP316H TP321H TP347H TP348H TP304 TP309S TP310S TP316 TP321 TP347 TP348
ASTM A511 MT304, MT304L, MT309S, MT310S, MT316, MT316L, MT317,MT321, MT347
ASTM A269 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
ASTM A249 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
ASTM A358 TP304
| Producsts Name | SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure |
| Technical Standard | SA269 AISI321 Seamless Welded Steel Tube |
| Steel Grade/Steel Numbe | TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317 |
| Size Range | OD: 6mm-219mm WT: 1-35mm Length: max 12000mm Cutting Length: available according to customer's requirement. |
| Delivery Condition | Bright Annealing. Pickling and Solution Heat Treatment. |
| Surface Treatment/Surface Condition | Bright Surface. Dull Surface. Polish Surface. |
| Tube Inspection | 100% Dimensional Check 100% Eddy Current Test (ETD) 100% Ultrasonic Test (UTD Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report. |
| Inspection Istrument | Outside micrometer, wall thickness micrometer, inside dial gauge, vernier caliper, tensile testing machine, hardness tester, eddy current flaw detector, metallographic analyzer, surface roughness meter |
| Tube Application | Fluid and Gas Transport Industry Hydraulic Pressure |
| Production Process | Round steel warehousing → round steel inspection → round steel sawing → central hole drilling → perforation → pickling → cold drawing or cold rolling (finish rolling) → annealing → straightening → head and tail cutting → finished product inspection → packaging → delivery |
SA269 Chemical composition for SA269 TP321 Seamless Welded Steel Tube
| Material | C | Mn | P | S | Si |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP348 | 0.15 | 5.5--7.5 | 0.060 | 0.030 | 1.00 |
Example of physical Properties of SA269 TP321 Seamless Welded Steel Tube under Bright Annealing Condition:
Elongation Percentage: >55%
Surface Hardness: <170HV
Tensile Strength :>550N/MM2
Yield Strength :>195N/NM2

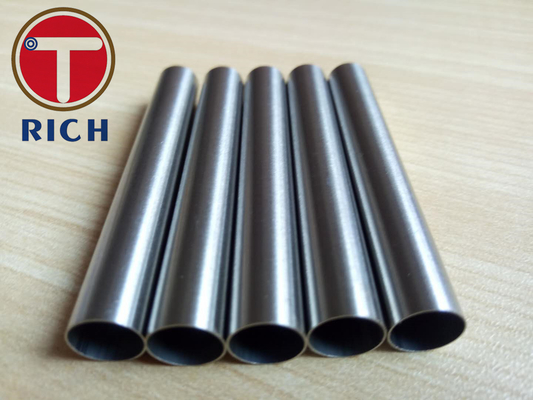

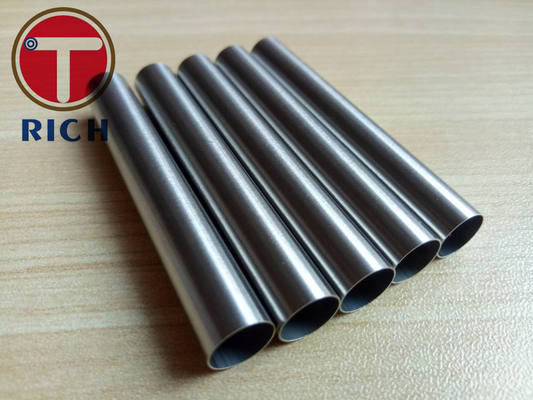

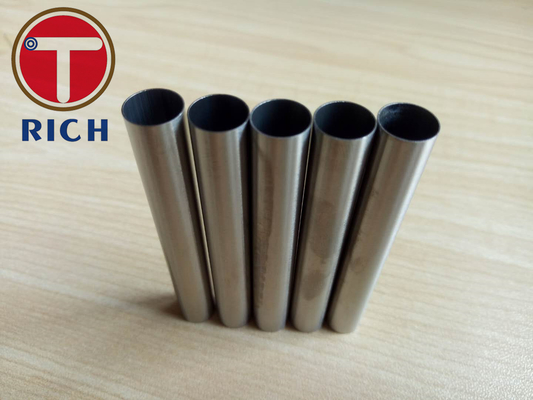

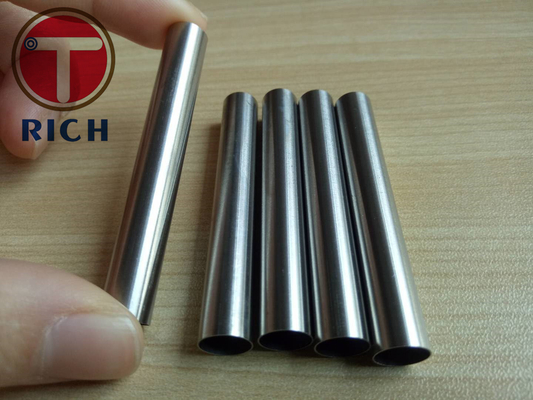

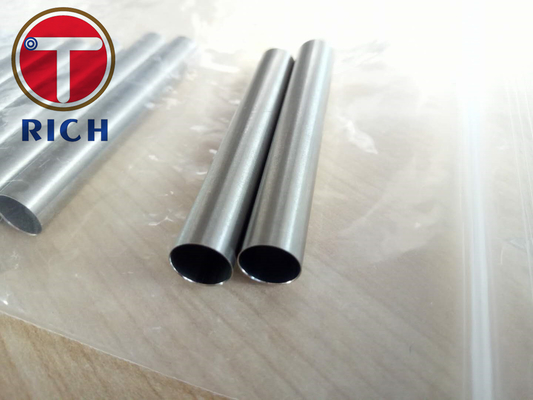

Prodution Pictures for SA269 TP321 Seamless Welded Steel Tube
Products Application of Fluid and Gas Transport Industry Hydraulic Pressure
Production Process for SA269 TP321 Seamless Welded Steel Tube
Production Workshop for SA269 TP321 Seamless Welded Steel Tube

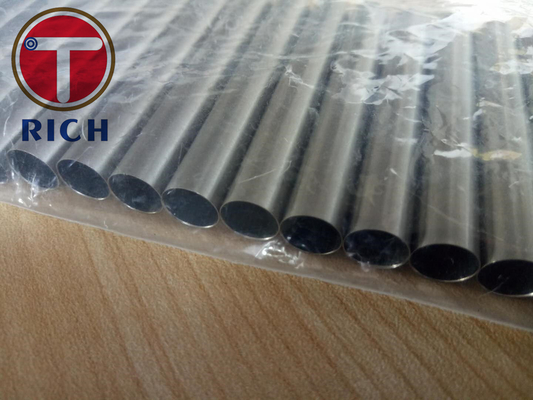

Delivery and Packing of SA269 TP321 Seamless Welded Steel Tube
FAQ
1. who are we?
TORICH is not only professional manufacturer and exporter, but also international marketing
and sales company in the field of steel tubes from China. Our factory was established in 1997
with the name of Haiyan Sanxin Steel Pipe Co., Ltd. Our technicians are equipped with great
engineering experience in steel pipe industry for more than 22 years, they have great comma-
nd of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and
inspection. So we have a strong technician team and manufacturing capability.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stainless Steel/Carbon Steel/AlloySteel,Titanium,Copper/Brass,etc.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Deliv-
ery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
-
