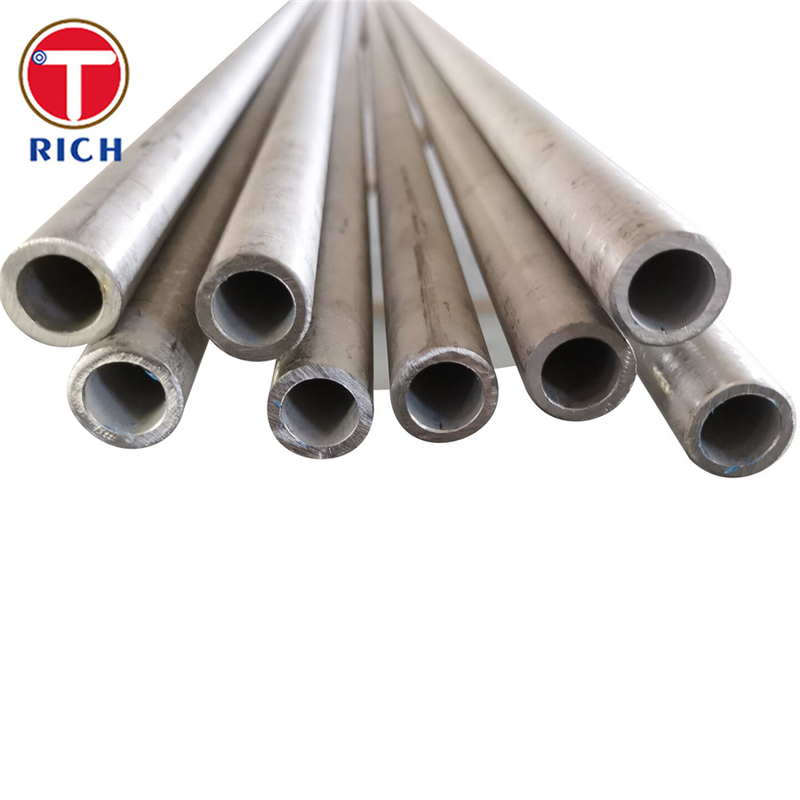

ASTM A213 Seamless Heat Exchanger Tubes Ferritic Austenitic Superheater
Product Details
Ferritic Austenitic Heat Exchanger Tubes
,Seamless Heat Exchanger Tubes A213
,Superheater Seamless Steel Tube
ASTM A213 Seamless Feritic Austenitic Alloy-Steel Boiler,Superheater, Heat Exhchanger Tubes
Product Discription
| Producsts Name | ASTM A213 Seamless Feritic Austenitic Alloy-Steel Boiler,Superheater, Heat Exhchanger Tubes |
| Technical Standard | TP304 TP304L TP201 TP310S TP316 TP316L |
| Size Range | OD: 3.2-127mm WT: 0.4-12.7mm Length: 6m-12m Cutting Length: according to customers PO. |
| Surface Treatment/Surface Condition | Pickling,Polishing |

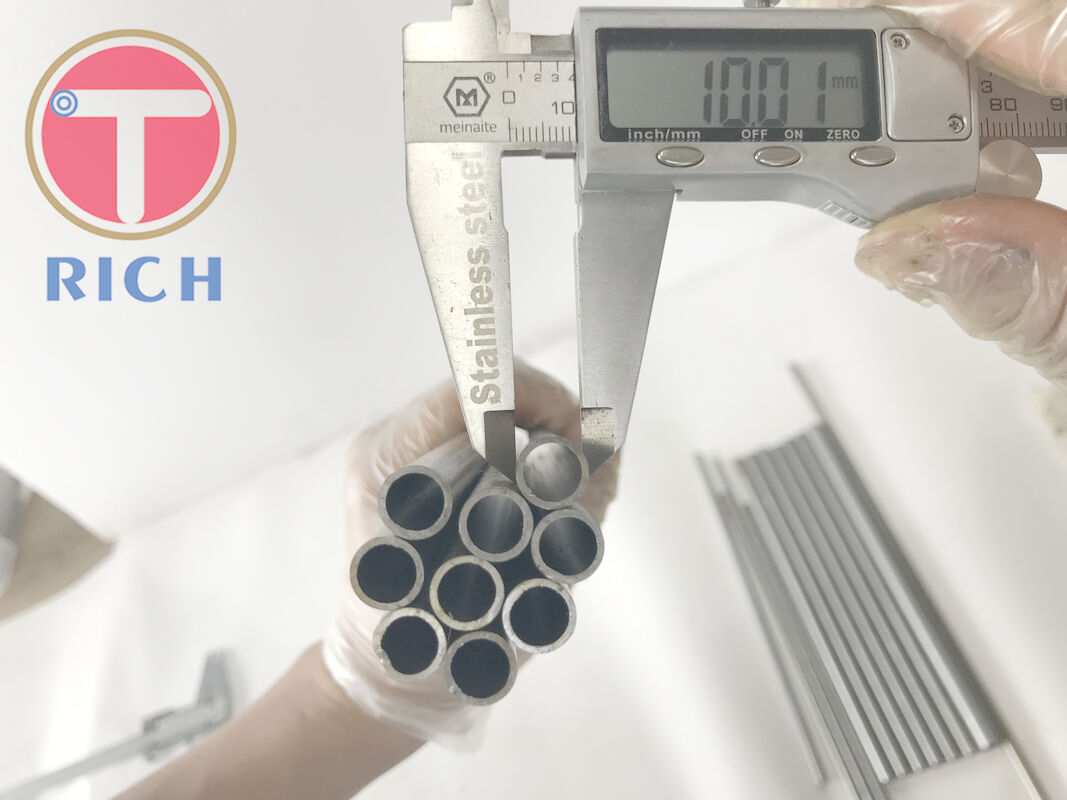

| Tube Inspection | Tensile Requirement Hardness Requirement Flattening Test Flaring Test |
Chemical Composition
| Material | C | Mn | P | S | Si |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 |
| TP201 | 0.15 | 5.5--7.5 | 0.060 | 0.030 | 1.00 |
| TP310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 |
| Stainless Steel Mechanical Properties | ||||||
| Grade | Tensile Strength | Yide Strength | Elogation | Hardness | Solution | |
| Annealing | ||||||
| kgf/mm²(N/mm²) | kgf/mm²(N/mm²) | % | HRB(HV) | ºC | ||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) | 1040ºC-1150ºC |
| TP 304L | ≥50 (485) | ≥17 (170) | Water Quenching | |||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||
| TP 316L | ≥50 (485) | ≥17 (170) | ||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) | 1010ºC-1150ºC | ||
| SUS 304L | ≥49 (480) | ≥18 (175) | Water Quenching | |||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) | 1010ºC-1150ºC | ||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | Water Quenching | |||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) | ||||
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) | ||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 | 1000ºC-1100ºC | |
| 1.4307 | (470-670) | ≥18 (180) | Water Quenching | |||
| 1.4401 | (510-710) | ≥21 (205) | 1020ºC-1120ºC | |||
| 1.4404 | (490-690) | ≥19 (195) | Water Quenching | |||
Surface Condition
Ferritic Alloy cold-finished steel tubes are free of scale and suitable for inspection
Ferritic alloy hot-finished steel tubes are free of loose scale and suitbale for inspection.
Prodution Discription
Prodution Process

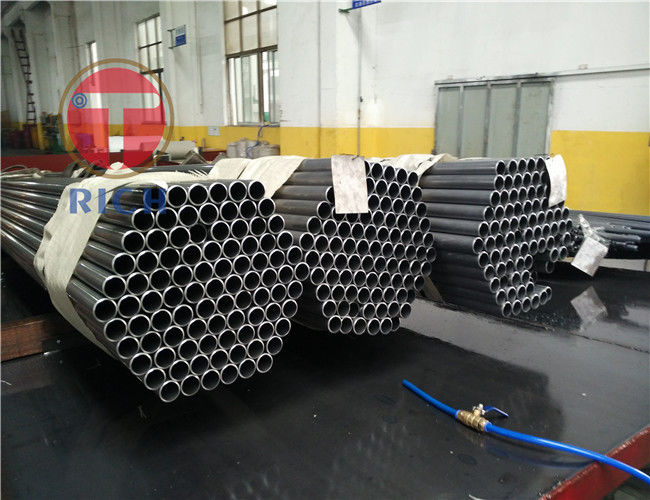

Production Workshop
Our Certificate
Company Introduction
FCA
1. who are we?
TORICH is not only professional manufacturer and exporter, but also international marketing and sales company in the field of steel tubes from China. Our factory was established in 1997, with the name of Haiyan Sanxin Steel Pipe Co., Ltd. Our technicians are equipped with great engineering experience in steel pipe industry for more than 22 years, they have great command of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and inspection. So we have a strong technician team and manufacturing capability.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stainless Steel/Carbon Steel/AlloySteel,Titanium,Copper/Brass,etc.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
-
