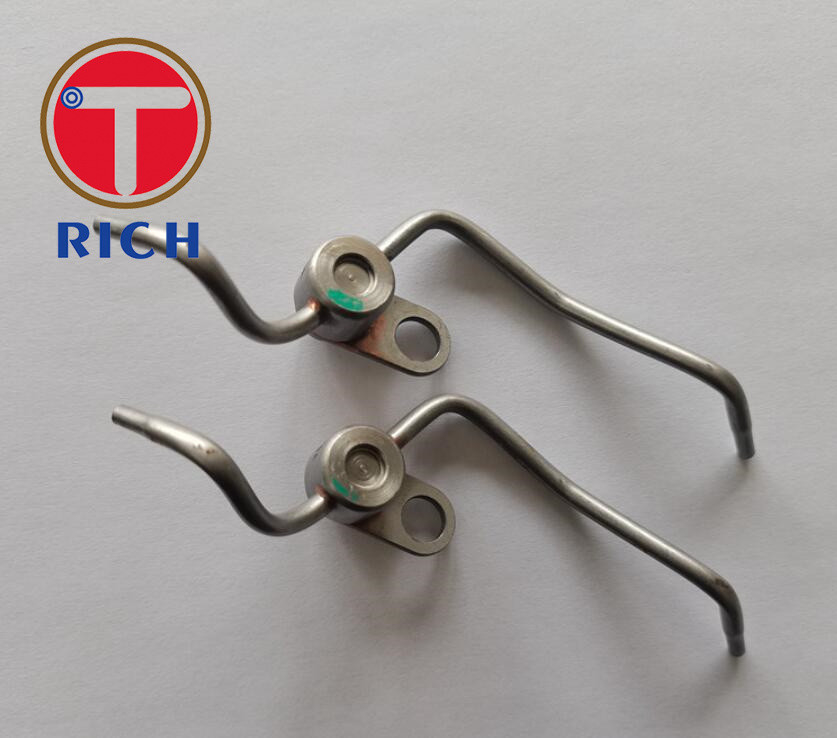

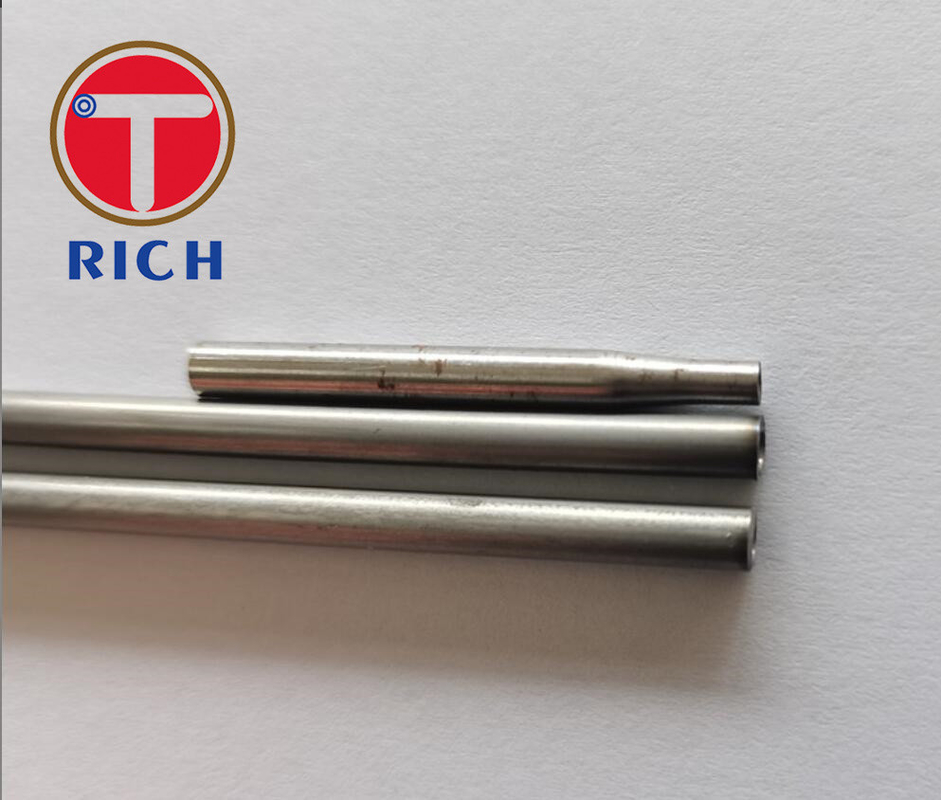

EN10305 - 1 DIN2391 Precision Steel Pipe For Engine Fuel Injector
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
IS09001 ISO14001 TS16949
Model Number:
EN10305-1
Trading Properties
Minimum Order Quantity:
1 tons
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
5000tons per year
Product Summary
EN10305-1 DIN2391 4*0.9 4*0.6 4*1.1 Precision Steel Pipe Engine Fuel Injector The products are made of Baosteel steel billet raw materials and manufactured by German production technology. The products meet the German DIN2391 and European EN10305-1/4 standards. Product features: high dimensional ...
Product Details
Highlight:
Precision Steel Pipe DIN2391
,Engine Fuel Injector Precision Steel Pipe
,Precision Hydraulic Seamless Pipe
Section Shape:
Round
Alloy Or Not:
Non-alloy
Technique:
Cold Drawn
Thickness:
0.1 - 10 Mm
Standard:
DIN,ASTM
Outer Diameter(Round):
4 - 50 Mm
Application:
Hydraulic Pipe
standard2:
DIN 2391
Special Pipe:
Seamless Tube
Product Name:
EN10305-1 DIN2391 4*0.9 4*0.6 4*1.1 Precision Steel Pipe Engine Fuel Injector
Product Description
EN10305-1 DIN2391 4*0.9 4*0.6 4*1.1 Precision Steel Pipe Engine Fuel Injector
The products are made of Baosteel steel billet raw materials and manufactured by German production technology.
The products meet the German DIN2391 and European EN10305-1/4 standards. Product features: high dimensional
accuracy, good internal and external surface finish, high-gloss surface, no oxide layer on the inner and outer walls of
the steel pipe after NBK normalizing heat treatment, good inner wall cleanliness, high pressure steel pipe, no
deformation after cold bending, no flaring, flattening Cracks can be processed for various complex deformations
and mechanical processing.
Precision Steel Pipe Engine Fuel Injector as per standard EN 10305 or DIN 2391
Chemical composition of EN 10305-1
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel name | Steel number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
Mechanical and techological properties of EN 10305-1
| Mechanical properties at room temperature | |||||||||||||
| Steel grade | Minimum values for the delivery condition | ||||||||||||
| Steel name | steel nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450f | 10 | 450 | 22 | 490-630 | 355 | 22 |
- Heat Treatment: +C, +LC, +N, +SR
- Delivery: 60-70 days after receiving 30% T/T in advance
- Payment terms: 30% T/T in advance, the balance 70% paid before shipment.
- Packaging: antirust protection, In hexagon bundles
- Marks on pipes(tubes): Standard,Steel Grade, Size, Heat No.( or at the buyer's option).
- Mill Test Certificate:EN10204 3.1
Our products are widely used in:
Injection molding machine Heavy machinery Compressor Shipbuilding industry
Railway locomotive Diesel engine Utility boiler
Railway locomotive Diesel engine Utility boiler
Power equipment Heavy duty automobile Forging and stamping machine
Engineering machinery Machine tool industry Hydraulic industry Special vehicle
Automobile pipeline
Automobile pipeline
Main Characteristics of Precision Steel Pipe Engine Fuel Injector :
No Oxidation Layer on the Outer and Inner Walls
No Crack under Flaring and Flattening
No Leakage under High Pressure
No Distortion after Cold Bending
High Precision High Cleanness Excellent Brightness
