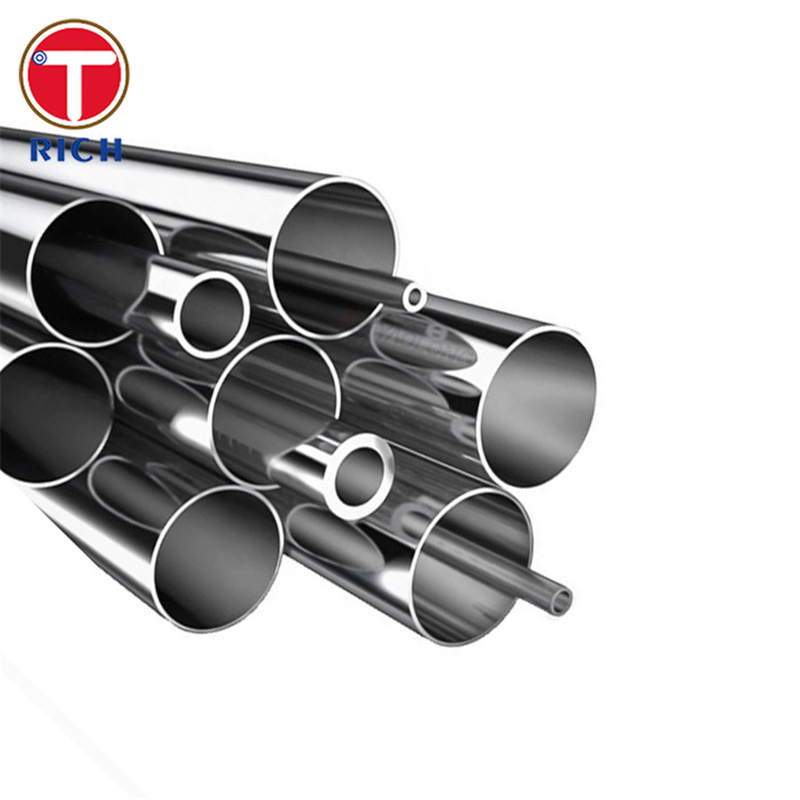

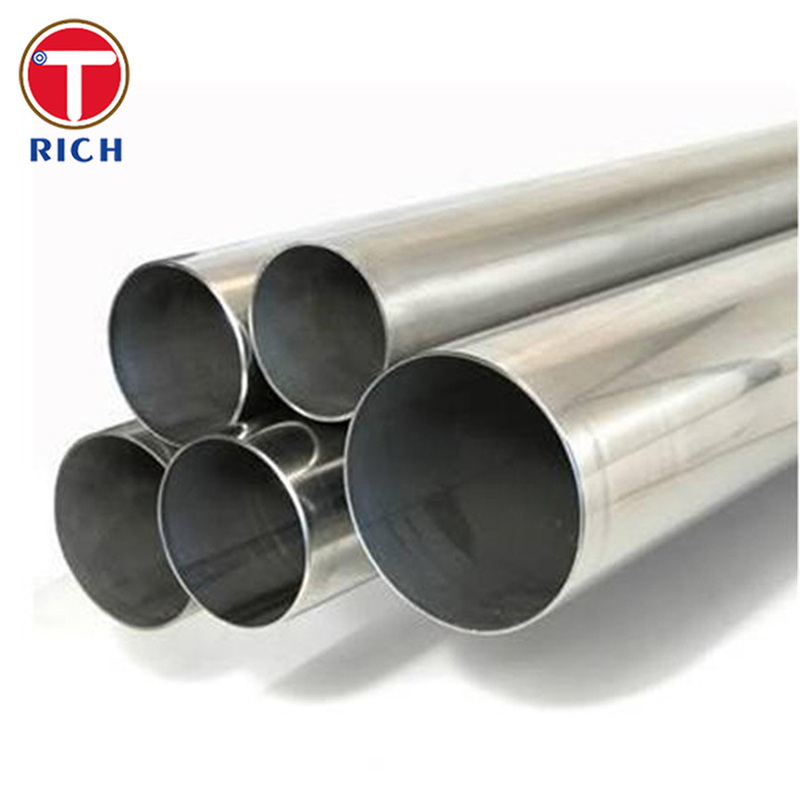

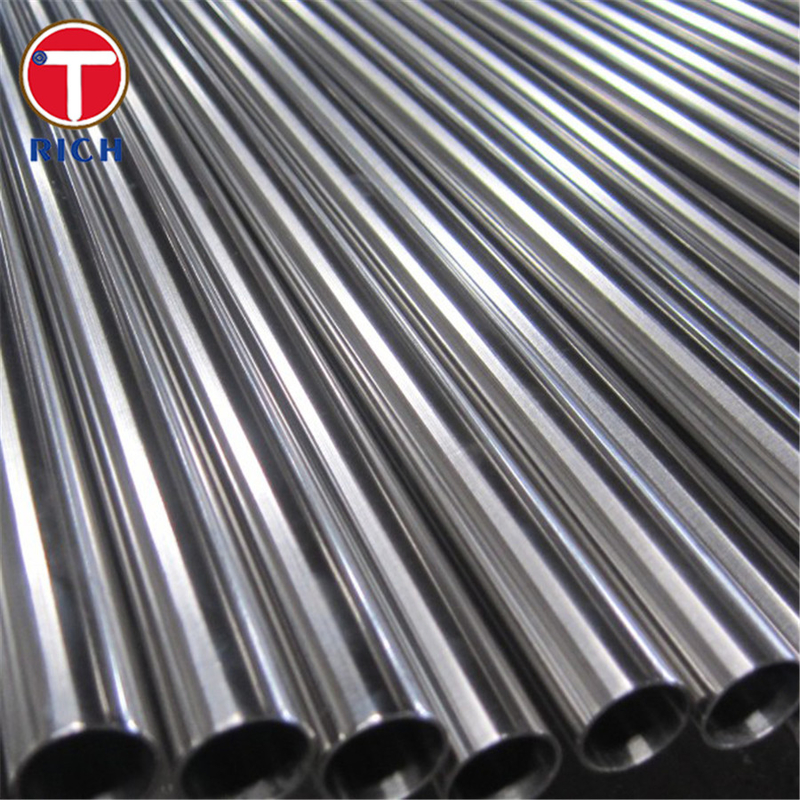

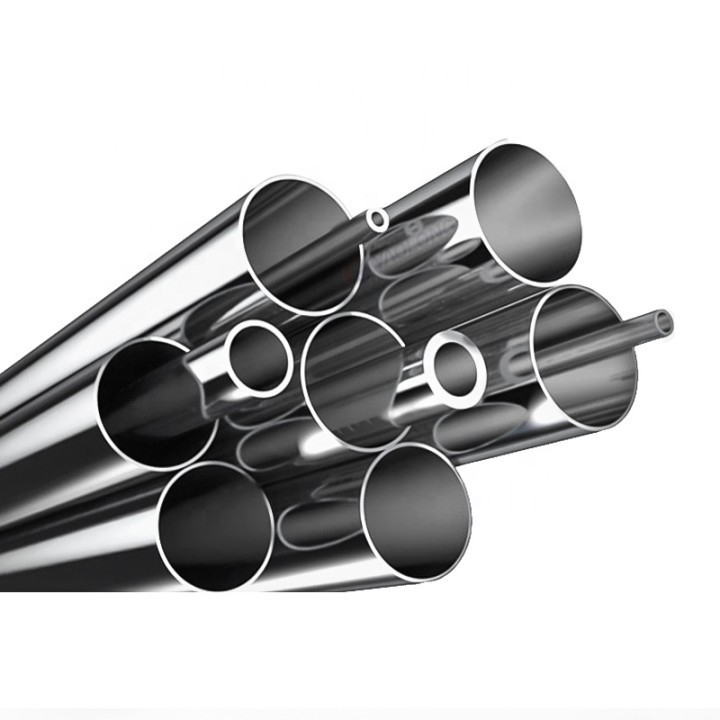

Astm A249 Boiler Tubes 304 316 304l 316l Stainless Steel
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
3Ton
Price:
USD800-900 Per Ton
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
500000 Ton per years
Product Summary
Astm A249 Boiler Tubes 304 Stainless Pipe Origin ZHEJIANG CHINA Brand TORICH Product name Astm A249 Boiler Tubes 304 Stainless Pipe Material 304 316 304l 316l ect Certification ISO9001 OD 10-610mm WT 0.5-50mm Length 6-12m Packing Woven bag or wooden case or Requirement Grade and Applications: GRADE ...
Product Details
Highlight:
Astm A249 Boiler Tubes
,304 Stainless Boiler Tubes
,304 Stainless Precision Steel Tube
Product Name:
Astm A249 Boiler Tubes 304 Stainless Pipe
Material:
304 316 304l 316l Ect
Length:
6-12m
Certification:
ISO9001
OD:
10-610mm
WT:
0.5-50mm
Product Description
Astm A249 Boiler Tubes 304 Stainless Pipe
| Origin | ZHEJIANG CHINA |
| Brand | TORICH |
| Product name | Astm A249 Boiler Tubes 304 Stainless Pipe |
| Material | 304 316 304l 316l ect |
| Certification | ISO9001 |
| OD | 10-610mm |
| WT | 0.5-50mm |
| Length | 6-12m |
| Packing | Woven bag or wooden case or Requirement |
Grade and Applications:
| GRADE | APPLICATIONS |
| TP304 | Traffic barriers, water pipes |
| TP304H | Higher carbon content than 304L,for increased strength,particularly at elevated temperatures |
| TP304L | Chemical plant and food processing equipment |
| TP316H | Hear exchangers , furnaces ,chemical and Petrochemical plant |
| TP347/310H | Boiler super-heater heat-exchanger tubes |
| TP321H | heat exchangers,furnaces in chemical |
| TP316Ti | Good resistance to intergranular corrosion and high temperature strength is required |
| TP317/L | Chemical processing tubings,dyeing equipment ,ink manufacturing equipment |
Manufacture of ASTM A249 Boiler Tube :
Uncoiling of raw materials - leveling - end shearing and welding - looper - forming - Welding
- internaland external weld bead removal - pre correction - induction heat treatment - sizing
and straightening- eddy current testing - cutting - hydraulic inspection - Pickling - final inspection
(strict control) - Packaging - shipment.
