4140 42CrMo 1045 Octagon Seamless Steel Pipe Cold Drawing
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001 TS16949
Model Number:
SA213
Trading Properties
Minimum Order Quantity:
2tons
Price:
negotiation
Payment Terms:
L/C, T/T
Supply Ability:
5000tons per year
Product Summary
4140 42CrMo 1045 Octagon Seamless Steel Pipe Quick detail :OriginChinaBrand nameTorichCertificateISO9001 TS16949Material 4140 42CrMo 1045Product name4140 42CrMo 1045 Octagon Seamless Steel PipeCapacityCutting and custom made as per customer Basic introduction: Production method:Seamless Cold ...
Product Details
Highlight:
42CrMo Seamless Steel Pipe
,Octagon Seamless Steel Pipe
,Seamless Cold Drawing Special Steel Pipe
Type:
Seamless
Application:
Heat Exchanger
Certification:
ISO,BV,CE,ROHS,UL
Standard:
ASTM
Technique:
Cold Rolled Hot Rolled,Cold Drawn
Warranty:
1 Year
Product Description

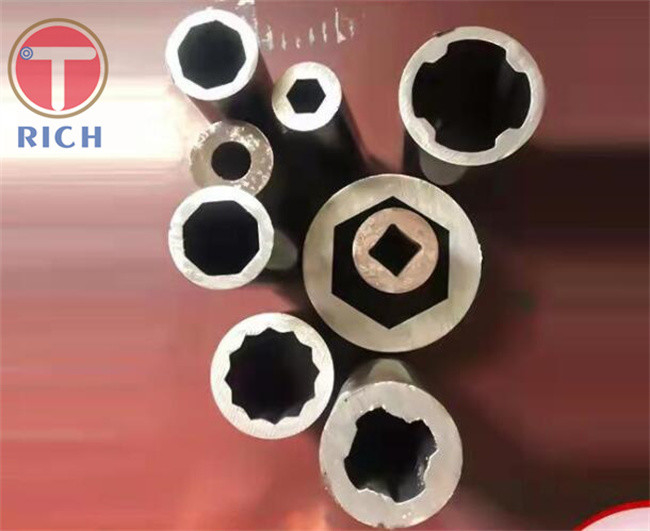

4140 42CrMo 1045 Octagon Seamless Steel Pipe
Quick detail :
| Origin | China |
| Brand name | Torich |
| Certificate | ISO9001 TS16949 |
| Material | 4140 42CrMo 1045 |
| Product name | 4140 42CrMo 1045 Octagon Seamless Steel Pipe |
| Capacity | Cutting and custom made as per customer |
Basic introduction:
Production method:Seamless Cold drawning
Size range:
OD: 5-420mm
Thickness : 0.5-50mm
DIN GB ISO JIS BA ANSI
Grade: 1020,1045,4140 42CrMo 1045 20G,20MnG,15CrMoG,SA210Gr.A1, SA210Gr.C, SA213T12, ASTM A335P11 P91,P22,16Mo3.......
Length: 5.8/6/11.8/12mtr as required or random length
Place Of Origin: Zhejiang, China (Mainland)
Material :
| Steel grade | C | Si | Mn | S | P | Cr | Mo |
| 1020 | 0.18～0.23 | 0.15～0.35 | 0.30～0.60 | ≤0.050 | ≤0.040 | ||
| 1045 | 0.43～0.50 | 0.17～0.37 | 0.60～0.90 | ≤0.050 | ≤0.040 | ||
| 35CrMo | 0.38～0.45 | 0.17～0.37 | 0.50～0.80 | 0.035 | 0.035 | 0.9～1.20 | 0.15～0.25 |
What we can do :
Cutting and custom made as per customer
Application:
Shaft
Feature:
Quality assurance can withstand greater pressure
Excellent material, good processing performance
Support cutting customization, various specifications
Packaging:Wooden cases or according to client’s requirements
Shipping: Land transportation/Ocean transportation
