Air Conditioning Evaporator Condenser Tube Copper 12.7mm C1100 C11000
Product Details
Copper Heat Exchanger Tubes
,12.7mm Condenser Tube
,Heat Exchanger Tubes Seamless

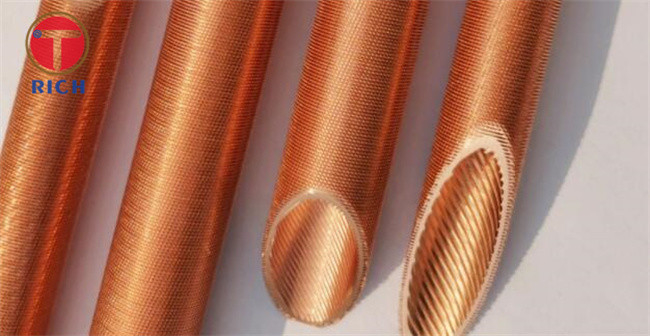

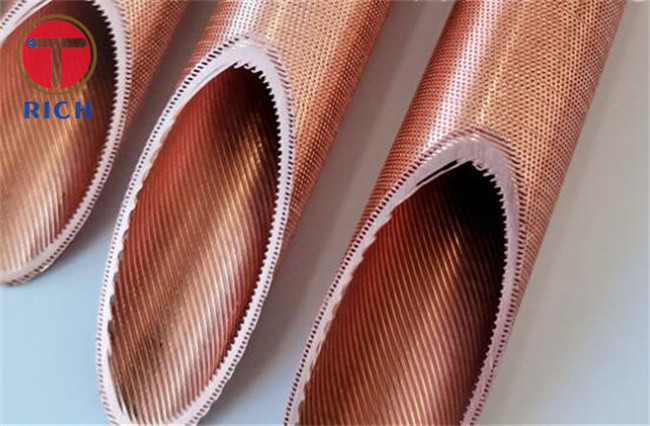

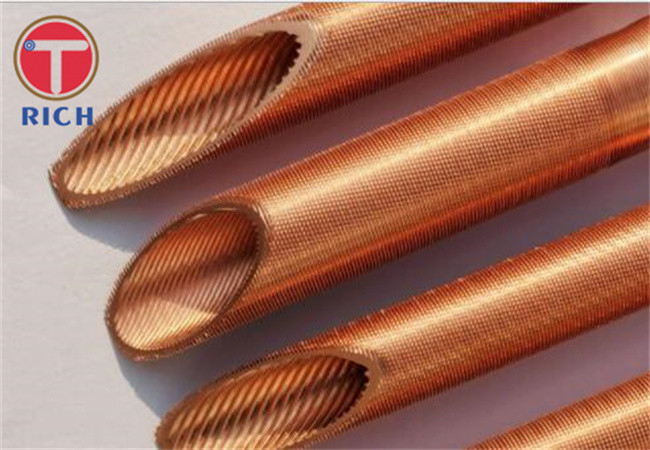

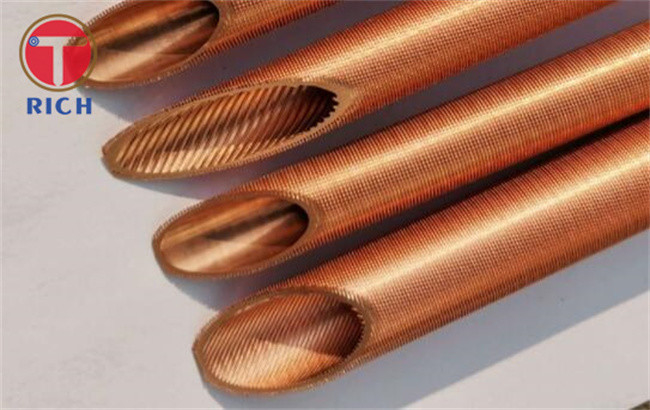

12.7mm T2 TP1 TP2 C1100 C11000 Air Conditioning & Evaporator Condenser Copper Tube Outer Inner Fin Thread Copper Tube
Quick detail :
| Origin | China |
| Brand name | Torich |
| Certificate | ISO9001 TS16949 |
| Material | T2 TP1 TP2 C1100 C11000 |
| Product name | 12.7mm T2 TP1 TP2 C1100 C11000 Air Conditioning & Evaporator Condenser Copper Tube Outer Inner Fin Thread Copper Tube |
| Capacity | Small quantity is also available. |
Basic introduction:
Production method:Seamless Cold drawning
outer diameter 12.7mm～28mm, wall thickness 0.635mm～
1.8mm, length 0.5m ~ 8.5m can be customized
Place Of Origin: Zhejiang, China (Mainland)
Material :
| Cu+Ag | Bi | Sb | As | Fe | Pb | S | |
| 99.90 | 0.001 | 0.002 | 0.002 | 0.005 | 0.005 | 0.005 |
| Steel grade | Tensile strength/Mpa | Yield strength | Enlongation | Hardness |
| T2 | ≥295 | ≥3 | (HRF)≥65 |
What we have :
Stock is available.
Advanced outer fin precision rolling mill, fixed-length sawing machine, automatic end face grinding machine, copper tube leak detection machine, automatic steam dryer, mesh chain bright annealing furnace and other industry-leading processing and testing equipment, for product quality Production efficiency and quality provide a strong guarantee.
Customers provide all kinds of high-efficiency heat exchange tubes for central air conditioners, high-efficiency tanks and casing heat exchangers: including GDHT-B series evaporating tubes and GDHT-C series condenser tubes for centrifugal, screw, and piston electric refrigeration units, and lithium bromide units. GDHT-BrB series evaporation tubes, GDHT-BrC series condenser tubes, thick-walled and high-efficiency external finned copper tubes for high-efficiency tanks and other products, product specifications: Φ7.94mm～Φ28mm; reticulated toothed tubes for casing heat exchangers: Φ22mm～Φ51mm.
Feature:
★ Fifteen years of experience in high-efficiency copper tube production
Thermal performance is fully utilized!
★ All our finned tubes are processed with high-purity TP2 copper with a copper content of more than 99.99% to ensure that the copper material is quality!
Packaging:Wooden cases or according to client’s requirements
Shipping: Land transportation/Ocean transportation
-
