304 316 Stainless Steel Piston Rod For Hydraulic / Pneumatic Cylinders
Product Details

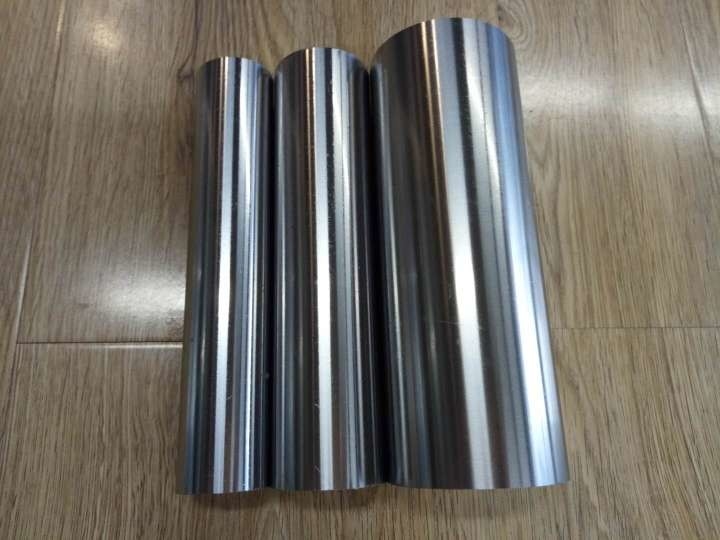

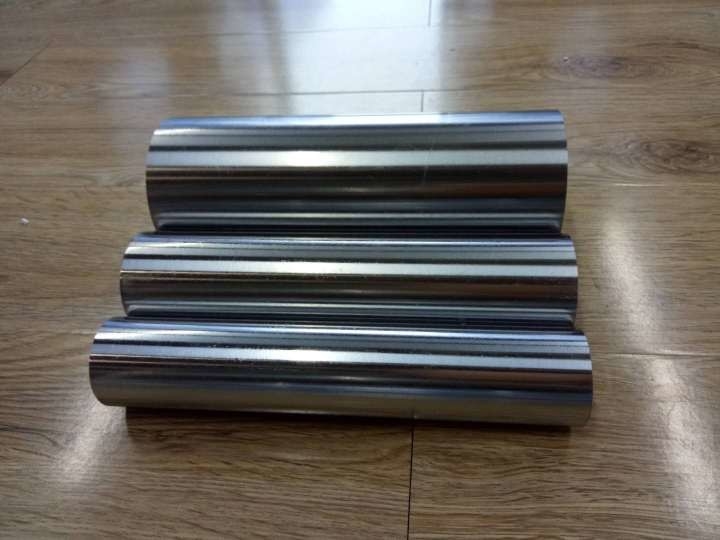

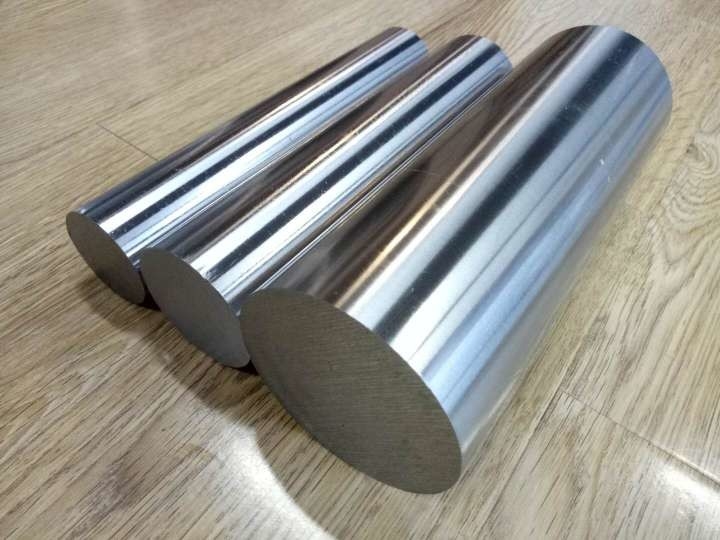

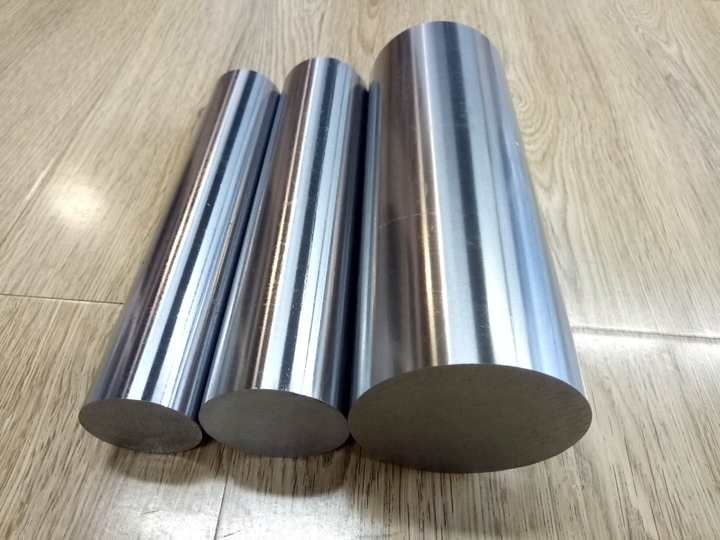

304 Stainless Steel Piston Rod
,316 Stainless Steel Piston Rod
304 316 Stainless Steel Piston Rod For Hydraulic Cylinders And Pneumatic Cylinders
Stainless steel piston rod is mainly used for hydraulic and pneumatic, engineering machinery
and automobile manufacturing. The piston rod is processed by rolling. Due to the residual compressive
stress on the surface layer, it is helpful to close the small cracks on the surface and hinder the expansion
of erosion. So as to improve the corrosion resistance of the surface, delay the generation or expansion
of fatigue cracks, and improve the fatigue strength of the oil cylinder rod. Through rolling forming, a cold
work hardening layer is formed on the rolling surface, which reduces the elastic and plastic deformation
of the contact surface of the grinding pair, improves the wear resistance of the surface of the oil cylinder
rod, and avoids the burn caused by grinding. After rolling, the reduction of surface roughness can improve
the matching properties. At the same time, the friction damage to the seal ring or seal during the movement
of the oil cylinder rod piston is reduced, and the overall service life of the oil cylinder is improved.
| Product Name | Piston Rod For Hydraulic Cylinders And Pneumatic Cylinders |
| Material | 300Series 316,304 or According to user requirements
|
| Delivery Condition | Hard Chrome Piston Rod ( HRC 15-20) Quenched & Tempered (Q+T) Rod (HRC 28-32) Induction Hardened Rod (HRC 55-62) Q+T Induction Hardened Rod (HRC 60-65) |
| Straightness: | 0.15/1000mm |
| Axis of hardness | HB220-280 |
| specifications | φ6-φ50 |
| Diameter | as customer’s needs |
| Length | 200-5000 or as customer’s needs |
| Tolerance | ISO f7/h8/g6 |
| Shape | Round |
| Protection: | anti-rust oil on outside surface,hard cardboard sleeve protection |
| Used | Hydraulic Cylinders |
| Packing: | Wooden case |
Main Process:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
-
