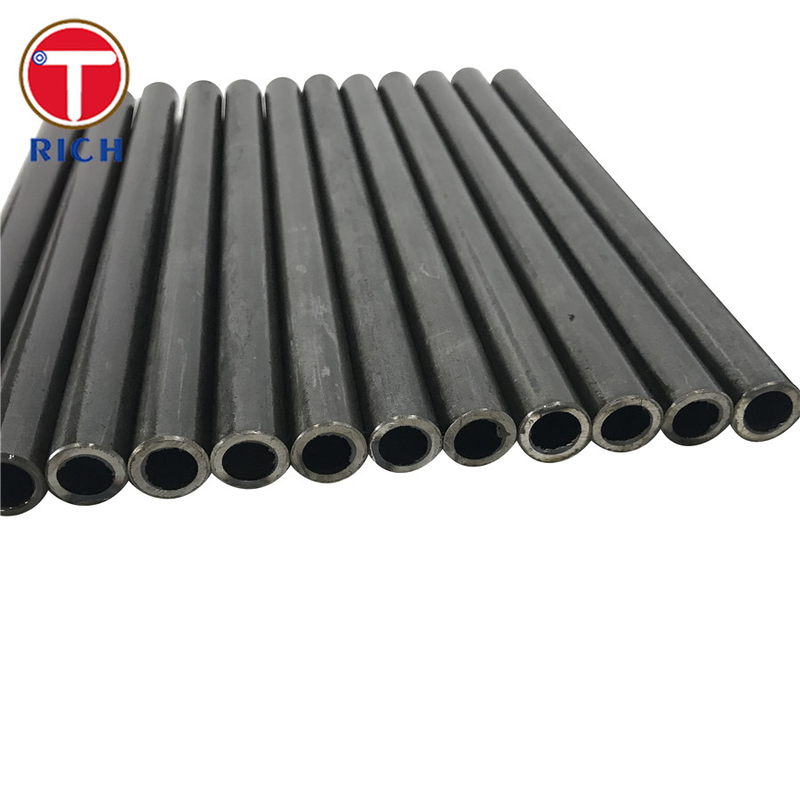

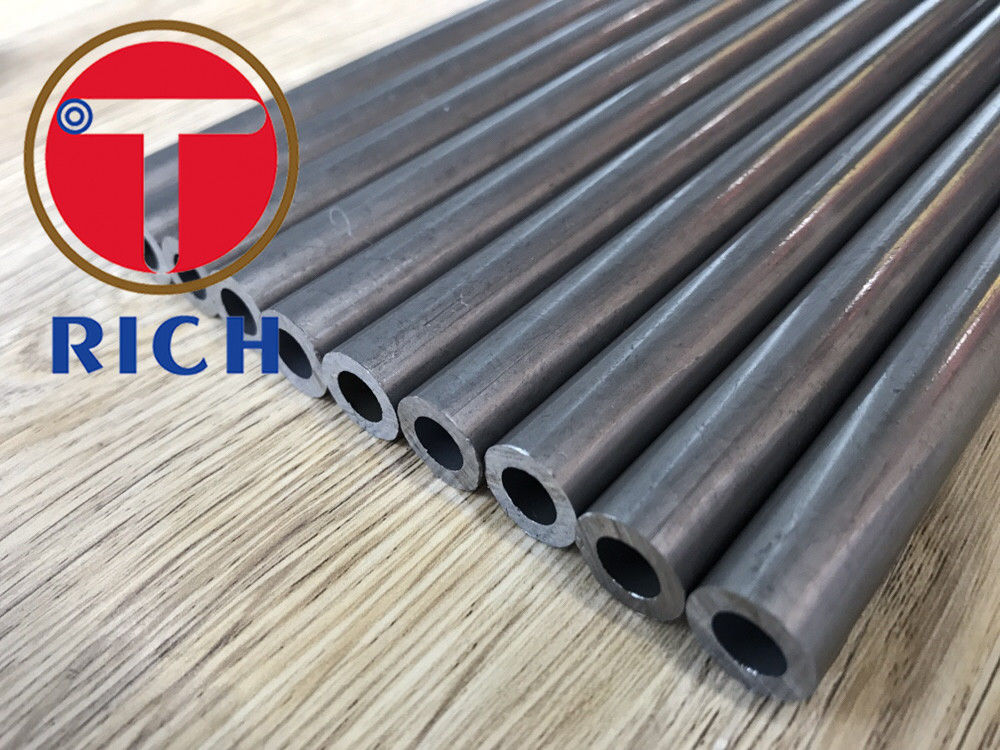

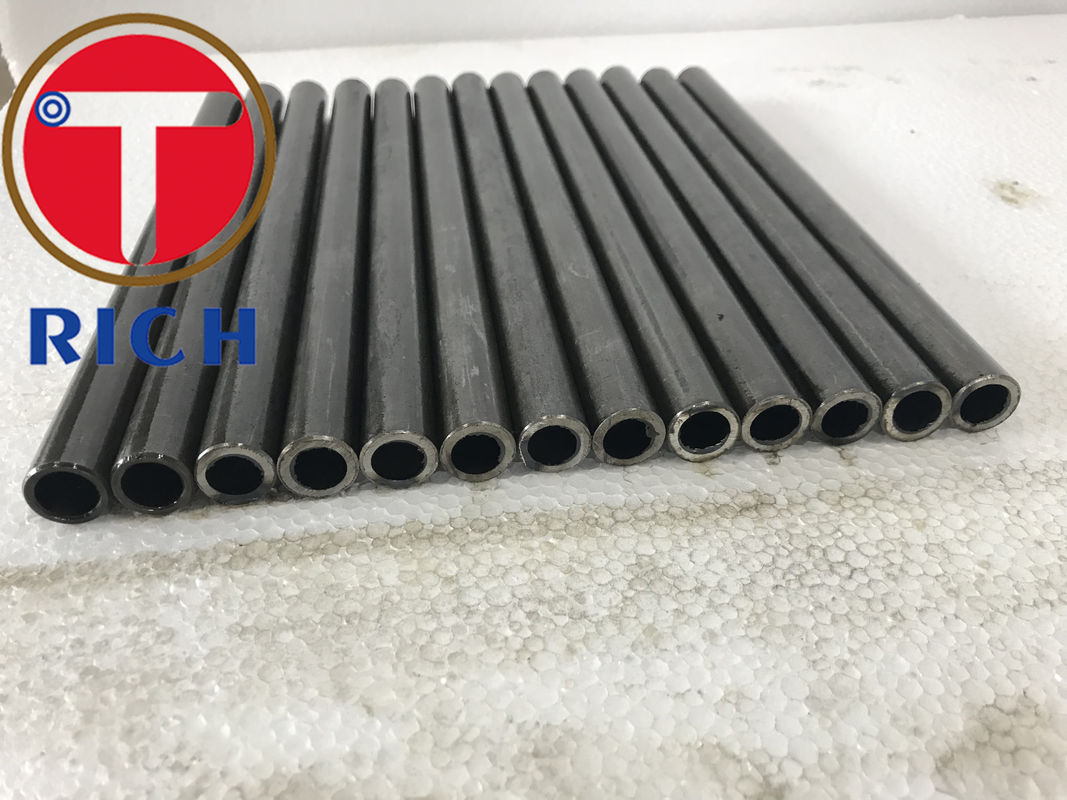

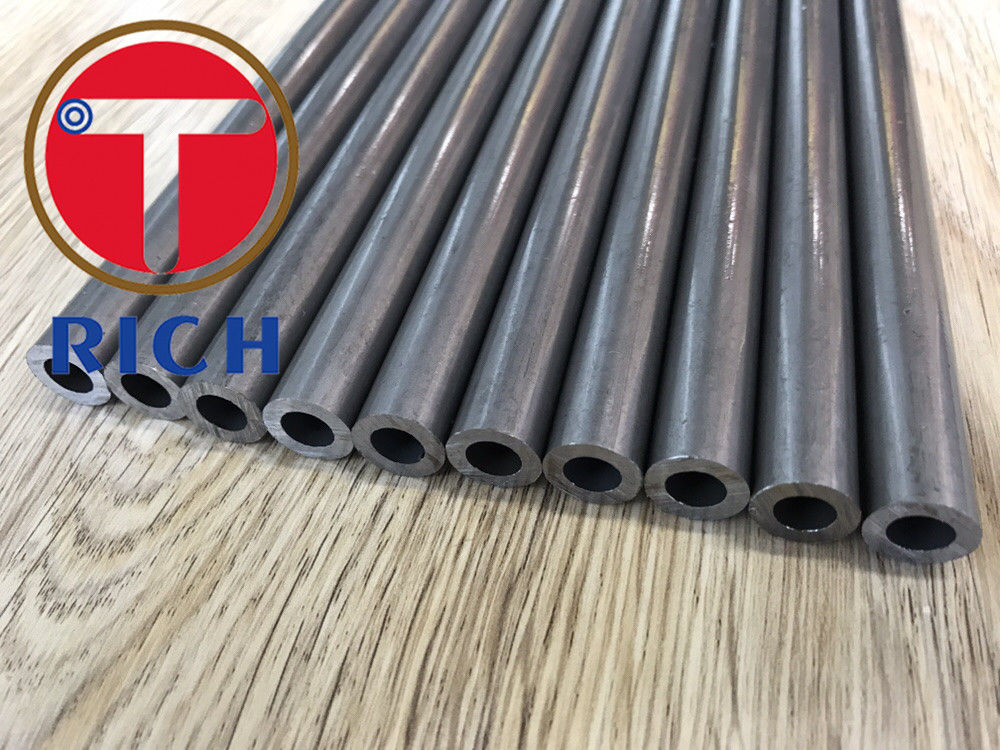

Carbon Precision Seamless Steel Tube For Shock Absorbers
Product Details
Shock Absorbers Precision Steel Tube
,Carbon Precision Steel Tube
,Round Precision Seamless Steel Tube
Carbon Precision Seamless Steel Tube Steel Tube for Shock Absorbers
Cold-rolled (dial) seamless steel pipe is divided into general steel pipe, low and medium pressure boiler
steel pipe, high pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe,
other steel pipes, and also includes carbon thin-walled steel pipe and alloy thin-walled steel pipe. Stainless
steel thin-walled steel pipe and special-shaped steel pipe. The outer diameter of hot-rolled seamless pipe
is generally larger than 32mm, the wall thickness is 2.5-75mm, the outer diameter of cold-rolled seamless
steel pipe can be up to 6mm, the wall thickness can be up to 0.25mm, the outer diameter of thin-walled pipe
can be 5mm, and the wall thickness is less than 0.25mm. Cold rolling has higher dimensional accuracy than hot rolling.
| Origin | ZHEJIANG,CHINA |
| Brand | |
| Standard | ASTM A519,JIS G3445,DIN 2391,EN 10297-1 |
| Material | MT1010, MT1020, 1008, 1010, STKM11A STKM12A STKM12B STKM12C ,St 35, St45, St52,E235, E275, E315, E355, E470 |
| OD | 6-325mm (-0.035 -- +0.045mm) |
| WT | 1-32mm |
| Length | Random or fixed length +0-3.5mm |
| Application | Shock absorber, Motorcycle accessories, Drill pipe, Excavator accessories, Auto part, Hight pressure boiler tube, Honed tube, Transmission shaftetc |
Chemical Composition:
|
Standard
|
Steel Grade
| C(%) | Si(%) | Mn(%) | S(%) | P(%) |
| A519 | 1010 | 0.05-0.15 | 0.15-0.35 | 0.3-0.6 | ≤0.050 | ≤0.040 |
| 1020 | 0.15-0.25 | 0.15-0.35 | 0.3-0.6 | ≤0.050 | ≤0.040 | |
| 1045 | 0.43-0.50 | 0.15-0.35 | 0.6-0.9 | ≤0.050 | ≤0.040 | |
| 4130 | 0.28-0.33 | 0.15-0.35 | 0.4-0.6 | ≤0.040 | ≤0.040 | |
| 4135 | 0.32-0.39 | 0.15-0.35 | 0.6-0.9 | ≤0.040 | ≤0.040 | |
| 4140 | 0.38-0.42 | 0.15-0.35 | 0.7-1.0 | ≤0.040 | ≤0.040 |
-
Auto Parts ASTM A513 Cold Rolling Welded Steel Tubes with DOM Production
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
25mm Diameter Bright Annealing Seamless Steel Tube for Hydraulic Systems
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Precision Seamless Black Phosphating Steel Tube for Hydraulic Systems
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
