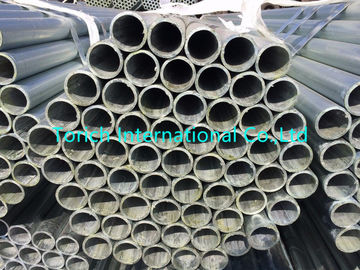

Galvanized Erw Round Carbon Steel Tube Od 21mm
Product Details
od 21mm round carbon steel tube
,erw round carbon steel tube
,od 21mm galvanized carbon steel tube
Round Pipe Tube Carbon Steel Tube Gi Galvanized Steel Pipe
Hot dip galvanized pipe:
It is to make the molten metal react with the iron matrix to produce an alloy layer, so as to combine the matrix
and the coating. Hot dip galvanizing is to pickle the steel pipe first. In order to remove iron oxide on the surface
of the steel pipe, after pickling, it is cleaned in ammonium chloride or zinc chloride aqueous solution or ammonium
chloride and zinc chloride mixed aqueous solution tank, and then sent to the hot dip galvanizing tank. Hot dip galvanizing
has the advantages of uniform coating, strong adhesion and long service life. Most of the processes in the North adopt
the process of directly rolling pipe with galvanized strip for zinc supplement.
Production process:
Black parts inspection → hanging → degreasing → rinsing → pickling → cleaning → dipping plating aid
→ hot air drying → hot dip galvanizing → internal and external blowing → cooling → passivation and rinsing
→ unloading → inspection and finishing → typing identification → packaging, warehousing and transportation.
Galvanized strip → uncoiling → stretching → rolling pipe → welding → scarring → passivation and rinsing
→ zinc supplement → setting → typing identification → cutting → packaging → drying → weighing.
-
Auto Parts ASTM A513 Cold Rolling Welded Steel Tubes with DOM Production
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
25mm Diameter Bright Annealing Seamless Steel Tube for Hydraulic Systems
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Precision Seamless Black Phosphating Steel Tube for Hydraulic Systems
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
