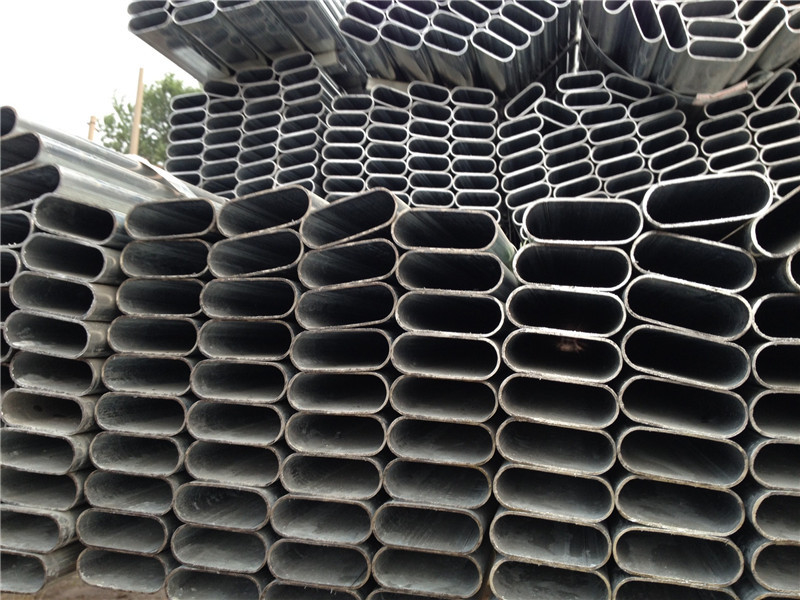

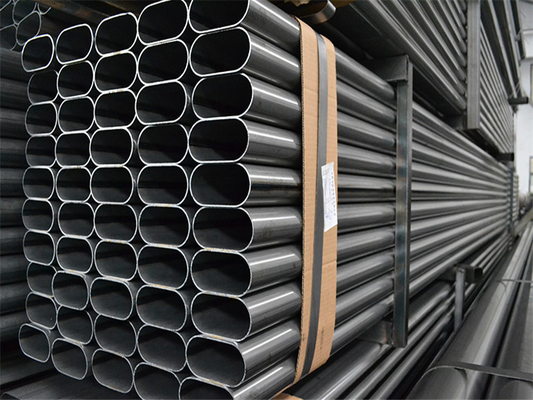

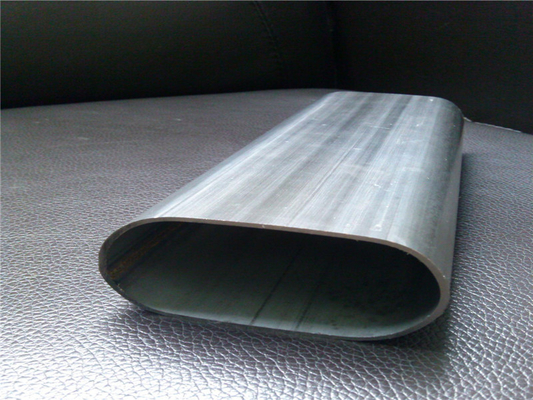

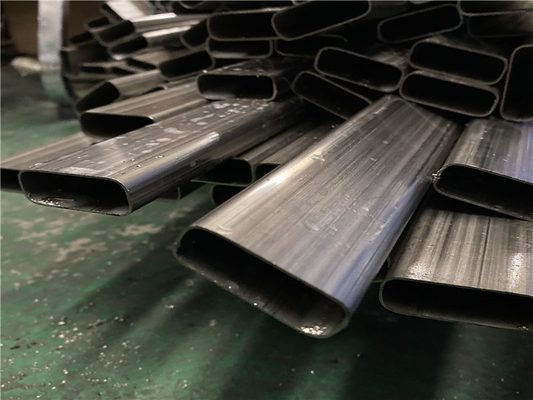

304 304l 316 316l Oval Steel Pipe 25mm Diameter
Product Details
25mm diameter oval steel pipe
,304l oval steel pipe
,304 stainless steel oval pipe
304 304L 316 316L 25mm Diameter Shaped Stainless Steel Pipe
Special shaped seamless steel pipe is the general name of seamless steel pipe with other section shapes
except circular pipe. According to the different shape and size of steel pipe section, it can be divided into equal
wall thickness special-shaped seamless steel pipe (code D), unequal wall thickness special-shaped seamless
steel pipe (code BD) and variable diameter special-shaped seamless steel pipe (code BJ).
Main products:
304 stainless steel round tube, square tube, elliptical tube, flat ellipse, groove, triangle, arch, conical tube, flagpole tube
Chemical composition of 304 Stainless Steel:
| Cr% | Ni% | C% | P% | Si% | Mn% | S% |
| 18-19 | 8-9 | 0.03-0.07 | ≤0.035 | ≤1 | ≤2 | ≤0.03 |
Steel Oval Tube Tolerance:
|
Squareness and roundness: | the dimension error of the main beam caliber is ± 0.02mm, and the diagonal of the square tube is less than 0.3mm
|
|
Curvature:
| the inner diameter of 1m round pipe is less than 3mm, and the butt joint of 6m two square pipes is less than 5mm
|
|
Flatness:
| ± 0.02mm, the surface shall be free of unevenness, distortion and deformation
|
|
Thickness:
| less than 2mm, tolerance ± 0.02mm, more than 2mm, tolerance 0.05mm
|
Oval Shaped Tubes Advantages:
1.The pipe finish reaches 6K.
2.The surface is uniform, smooth and bright.
3.The drawing surface can achieve 120 molybdenum to 420 molybdenum, and the drawing guidance is consistent and uniform.
-
