ASTM A519 1035 Seamless Carbon And Alloy Steel Mechanical Tubing For Hydraulic
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1Ton | Packaging Details : | PACKING WOODEN CASE |
|---|---|---|---|
| Delivery Time : | 20-30 | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Place of Origin: | China | Brand Name: | Torich |
|---|---|---|---|
| Certification: | ISO9001 |
|
Detail Information |
|||
| Steel Grade: | 316L, 316, 321, 410S, 304, 304l | Tolerance: | ±1% |
|---|---|---|---|
| Type: | Plate | MOQ: | 1Ton |
| Grade: | 300 Series | Length: | 2000--8000mm |
| Width: | 600-2000mm | Thickness: | 0.2--5mm |
| High Light: | cold rolled 316 stainless steel sheet,papermaking 316 stainless steel sheet,hot rolled 316 stainless sheet |
||
Product Description

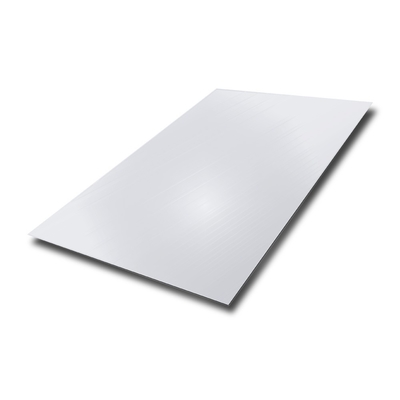

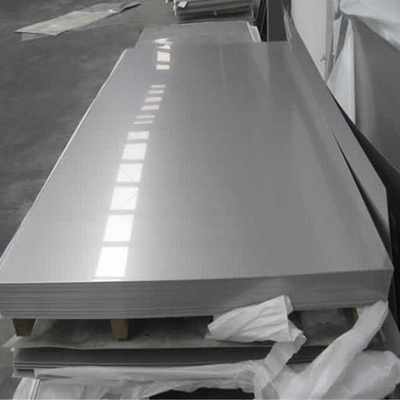

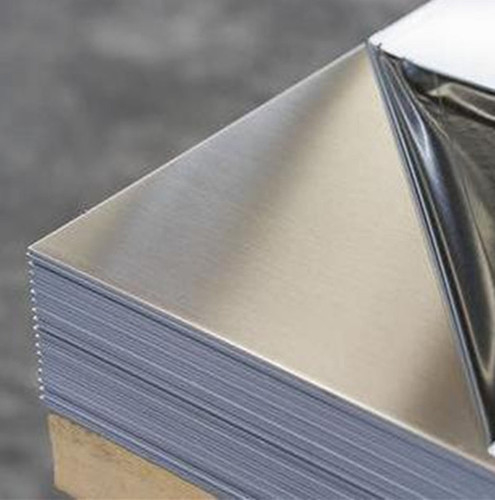

Hot/Cold Rolled 316 stainless steel sheet
| Name | 316 stainless steel sheet |
| Type | Plate/Sheet |
| Thickness | 0.2--5mm |
| Width | 600-2000mm |
| Length | 2000--8000mm |
| Grade(ASTM/UNS) |
201,304,304L,321,316,316L,317L,347H,309S,310S,904L,S32205,2507, 254SMOS,32760,253MA,N08926 |
| Grade(EN) |
1.4301,1.4307,1.4541,1.4401,1.4404,1.4571,1.4438,1.4539,1.4547,1.4529, 1.4562,1.4410,1.4878,1.4845,1.4828,1.4876,2.4858,2.4819 |
Chemical Compositions
| No | Grade(EN) |
Grade (ASTM/UNS) |
C | N | Cr | Ni | Mo | Others |
| 1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
| 2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
| 3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
| 4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
| 5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
| 6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
| 7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
| 8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
| 9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
| 10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
| 11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
| 12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
| 13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
| 14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
| 15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
| 16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
| 17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
| 18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
| 19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
| 20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
| 21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
| 22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
| 23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
| 24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
| 25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
| 26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
| 27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
| 28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
| 29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
| 30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
| 31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
Application:
used for filter element, medicine, papermaking, filtration, breeding, battery net, packaging
net, mechanical facility protection, handicraft manufacturing, high-grade speaker net cover
decoration, children's seat, basket basket and road protection, oil tank car pedal net
working platform, escalator and walkway of heavy machinery boiler, oil mine well
locomotive and 10000 ton ship, as well as construction industry, highway Bridge as reinforcement
