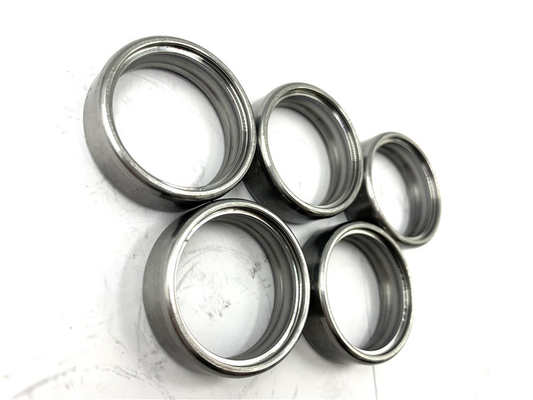

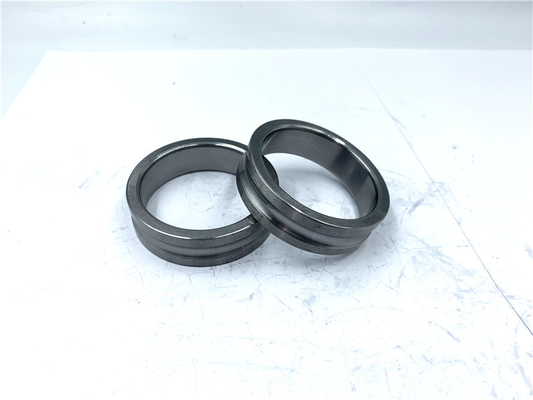

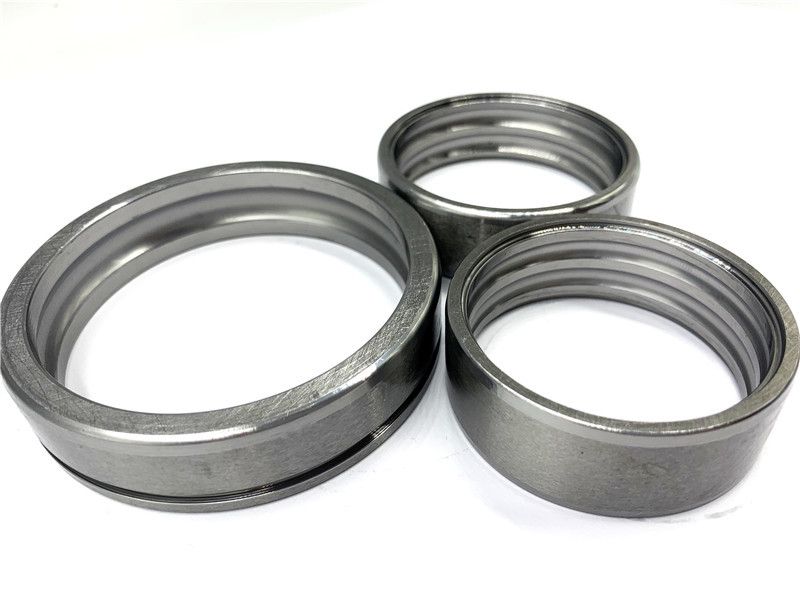

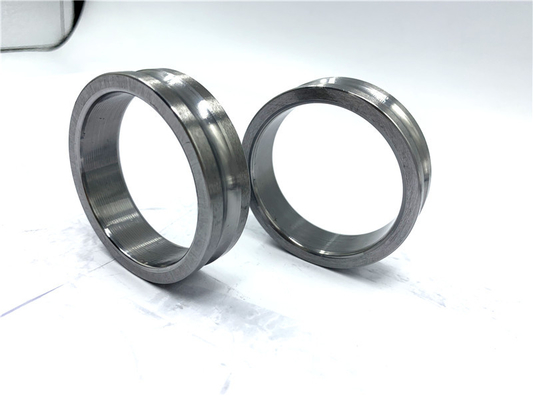

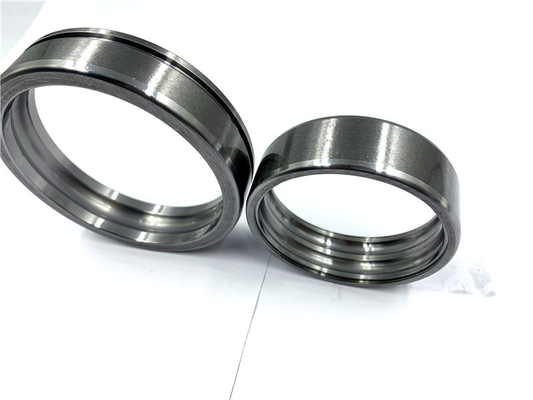

5 Axis CNC Machining Parts used in Machining Acrylic Solid Block and CNC Hose Nipple Machining Parts
The CNC milling machine is connected to the frame to provide movement in each direction. Since the machine is controlled by a computer, it is programmed. It can also be done manually. A normal CNC is called a 3-axis CNC. And can move in three directions. The components which are connected to the CNC shaft include motors, various modes, worktables, limit switches and lead screws. Typically, shafts move in the XY and Z directions, but sometimes an optional 4th axis is required, and it is kept in the attachment list. Five axis milling (5 axis cnc machining parts) is also visible, but not very common. The motor can offer motion for the table in a way that provides smooth sliding motion. Swallowtail and straight line are often used in shaft assembly. The lead screw provides linear motion when extracting the rotating motion of the motor.
CNC milling machine processing productsusually have the following advantages:
1. Flexible processing, strong versatility.
The biggest feature of CNC milling machine is high flexibility, that is, flexible, universal, can process different shapes of work. In CNC milling machine, it can complete drilling, hole calibration, milling plane, milling groove and other processing. In general, all work can be done in one clamping.
2. High machining accuracy.
Now, the pulse equivalent of the numerical control device is usually 0.001mm. The high-precision numerical control system can reach 0.1um, which can ensure the working accuracy under normal circumstances. In addition, the numerical control machining avoids the operator's operation mistakes, the size of the same batch of machining parts is good, which greatly improves the product quality. CNC milling machine has a high processing accuracy, can process many common milling machine difficult to process or simply can not process the complex surface, so in the processing of various complex mold, it can highlight its advantages.
3. High production efficiency.
CNC milling machine usually does not use special process equipment such as special clamps. When replacing workpieces, only the processing devices stored in the NC milling machine need to be used, so the production cycle is greatly shortened. Secondly, the CNC milling machine has many functions, which can make the working procedure highly centralized, greatly improve the production efficiency and reduce the working error.
