Sa-556 Grade C2 U Bend Tube / Bent For Heat Exchanger
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001 ISO14001 TS16949
Model Number:
ASTM A213
Trading Properties
Minimum Order Quantity:
1tons
Price:
negotiation
Payment Terms:
L/C, T/T
Supply Ability:
5000tons per year
Product Summary
SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger Origin China Brand name Torich Certificate ISO9001 TS16949 Material Carbon steel Stainless steel Product name SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger Capacity U bending Basic introduction Production method:Cold drawing and Bending ...
Product Details
Highlight:
grade c2 u bend tube
,sa-556 u bend tube
Thickness:
0.6 - 50.0 Mm
Standard:
ASTM
Alloy Or Not:
Is Alloy
Section Shape:
Round
Secondary Or Not:
Non-secondary
Material:
Carbon Steel
Warranty:
12 Months
Application:
Heat Exchanger
Product Name:
SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger
Product Description
SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger
| Origin | China |
| Brand name | Torich |
| Certificate | ISO9001 TS16949 |
| Material | Carbon steel Stainless steel |
| Product name | SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger |
| Capacity | U bending |
Basic introduction
Production method:Cold drawing and Bending
Material of U Bend Tube:
Carbon steel:SA179,SA192,SA334 Gr3 Gr6,SA178 GrA ,A210 Gr1 etc
Stainless steel:SA213 TP304, TP304L, TP316, TP316L, T5, T9, T11, T22, etc.
Size :
OD :6.0-60.3mm
WT:0.6-6.0mm
Shape of U Bend Tube:Round and U shape.
Application: Heat exchanger.
Quality requirement:MTC EN 10204.3.1 or 3.2
Bending radii 1.25 x OD up to 1700mm
Production Description
What we can do :
Additional Testing:
PMI testing
Heat treatment
Measuring ,Cutting,Deburring and Cleaning
Heat treatment of the bend
U-bends with a bending radius up to maximum of 1500mm can be heat treated on request
| Grade(UNS): | Austenitic Stainless Steel: 304/304L/304H(1.4301/1.4306/1.4948); 316/316L(1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 309S(1.4833); 310S(1.4845); 317L(1.4438)321H(1.4878); 347H (1.4550); Duplex Stainless Steel: S32001, S32003, S31500, 2205(1.4462); S32304,(1.4362);S31803,2507 (S32750),S32760(1.4501);S32101(1.4162); Super Austenitic Stainless Steel: 904L, S30432, S31042, 6Mo (S31254, N08367) Nickel Base Alloys: Alloy 20 (UNS N08020), Monel 200 (UNS 02200), Monel 400 (UNS N04400), Incoloy 800 (UNS N08800), Incoloy 800H (UNS N08810), Incoloy 800HT (UNS N08811), Incoloy 825 (UNS N08825),Inconel 600 (UNS N06600), 4J29, 4J36, GH3030, GH3039, C276 (UNS N10276) Martensitic Stainless Steel:410(1.4006), 410S(1.4000), 420(1.4021) Ferritic Stainless Steel:405(1.4002), 430(1.4016) |
| Outside Diameter: | 6 - 830mm |
| Wall Thickness: | 0.50 - 60mm |
| Standards(Norm): | EN 10216-5; DIN 17456, DIN 17458, DIN 2462, DIN 17455 |
| GB/T14975; T14976; T13296; GB5310; | |
| ASTM A213, A269, A312, A511, A789, A790, A928, A999, A1016, ASTM B161, ASTM B163, ASTM B165, ASTM B167, ASTM B338, ASTM B407, ASTM B423, ASTM B444,ASTM B619, ASTM B622, ASTM B626, ASTM B668, ASTM B677, ASTM B829 | |
| JIS G3459, JIS G3463, JIS G3446, JIS G3447, JIS G3448, JIS G3468 | |
| GOST 9940;GOST 9941; |
Application:
Exchanger
Feature:
1.Quick delivery time
2.High previous
3.Good Mechanical Properties
4.100%HT,ECT testing
5.Third party inspection is available.

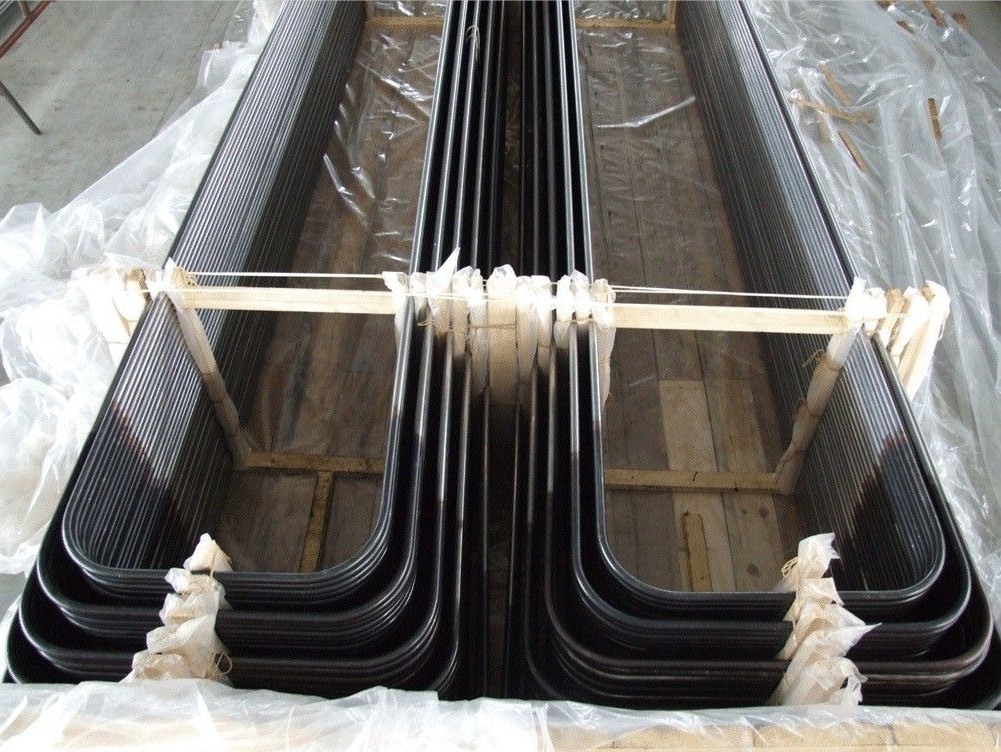

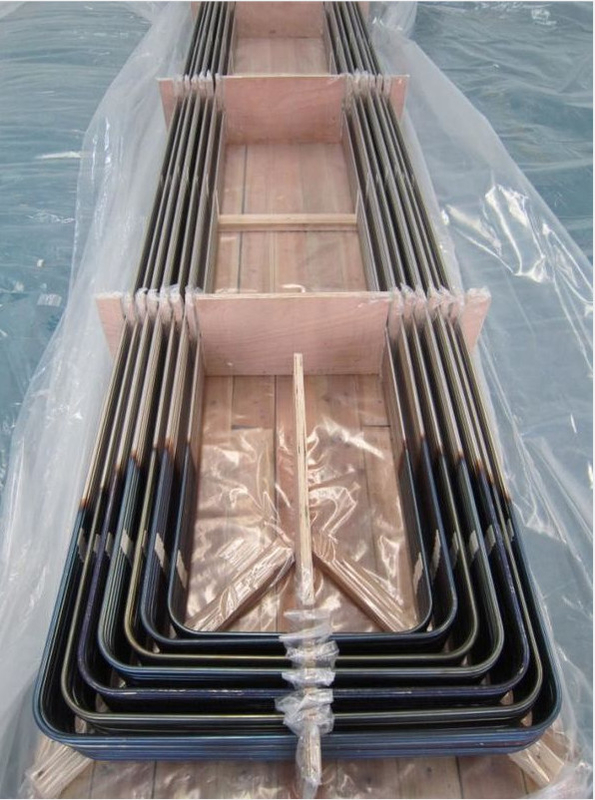

Product show:

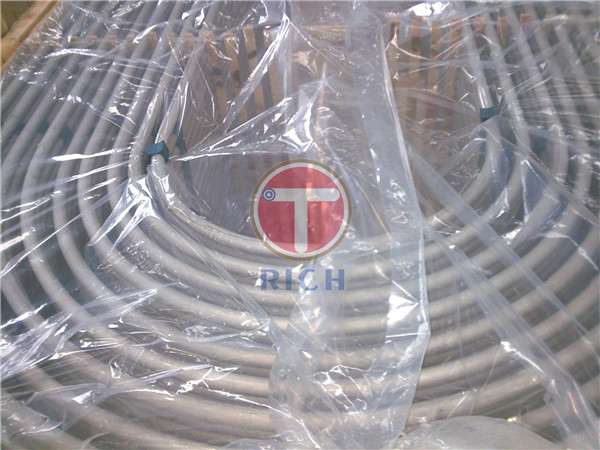

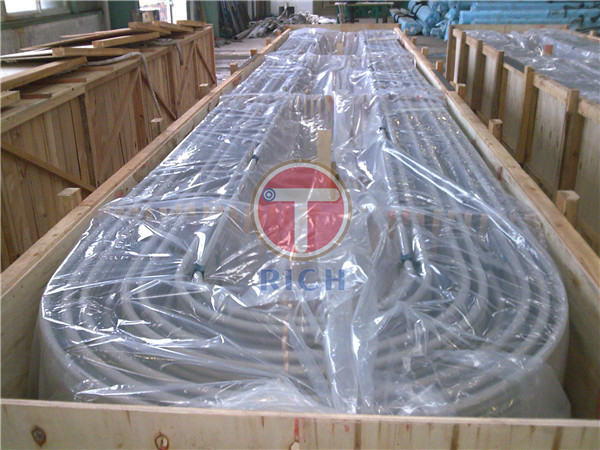

Packaging:Woven bags,Wooden cases or according to client’s requirements
Shipping: Land transportation/Ocean transportation
Equipments:
