Od 63.5mm X Wt 13.5mm Rifled Heat Exchanger Tubes
Od 63.5mm X Wt 13.5mm Rifled Heat Exchanger Tubes
Contact Now

Od 63.5mm X Wt 13.5mm Rifled Heat Exchanger Tubes

Minimum Order Quantity : 3 tons Price : negotiable
Packaging Details : packing in wooden box or customized Delivery Time : 20-45 DAYS
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram Supply Ability : 50000 TONS PER YEAR
Place of Origin: Zhejiang,CN Brand Name: TORICH
Certification: ISO 9001,ISO14001,TS16949 Model Number: ASTM A210 GRADE C

Detail Information
Product Name: OD63.5XWT13.5 Rifled Pipe Heat Exchanger Tubes Keyword: Rifled Pipe
Shape: Round Application: For Boiler And Heat Exchanger
Material: ASTM A210 GRADE C Surface: CUSTOMIZED
Length: Max 12000mm Tube OD: 8-400mm
Fin Thickness: 5-100mm Brand: TORICH
High Light:

rifled heat exchanger tubes

,

od 63.5mm heat exchanger tubes

,

13.5mm thickness heat exchanger tubes

Product Description

OD63.5XWT13.5 Rifled Pipe Heat Exchanger Tubes



Product Name:OD63.5XWT13.5 Rifled Pipe Heat Exchanger Tubes

Material Carbon steel,Alloy steel
Od: 21.3-762mm: Standard
DIN GB ISO JIS BA ANSI
Grade: 20G,20MnG,15CrMoG,SA210Gr.A1, SA210Gr.C, SA213T12, ASTM A335P11 P91,P22,16Mo3.......
Wall thickness: 2.77-25.4mm
Length: 5.8/6/11.8/12mtr as required or random length
Thread No.: 4ribs/6ribs/8ribs/12ribs......

Surface treatment: Black painting, oiled or galvanized
Payment term; 30% TT advance
Price term: Fob,Cif, Cnf,Cfr
Delivery time: As order qty

Internal Thread High pressure boiler Rifled tube is one kind of endophragm processes the spiral line the seamless steel pipe. Main application in on capacity utility boiler's water cooling wall. Usually with the fluorescent tube which uses compares, it can maintain the nuclear ebullition condition under the high fever load operating condition, thus avoids sending the filming condition ebullition, prevents the pipe to burn out, lengthens the pipe service life.


Chemical&Mechanical parameters

Grade C Mn Si Cr Mo S P
20G 0.17~0.23 0.35~0.65 0.17~0.37 --- --- ≤0.020 ≤0.025
20MnG 0.17~0.23 0.70~1.00 0.17~0.37 --- --- ≤0.020 ≤0.025
25MnG 0.22~0.29 0.70~1.00 0.17~0.37 --- --- ≤0.020 ≤0.025
12CrMoG 0.08~0.15 0.40~0.70 0.17~0.37 0.40~0.70 0.40~0.55 ≤0.020 ≤0.025
15CrMoG 0.12~0.18 0.40~0.70 0.17~0.37 0.80~1.10 0.40~0.55 ≤0.020 ≤0.025
SA-210A1 ≤0.27 ≤0.93 ≥0.10 --- --- ≤0.035 ≤0.035
SA-210C ≤0.35 0.29~1.06 ≥0.10 --- --- ≤0.035 ≤0.035
SA-213T2 0.10~0.20 0.30~0.61 0.10~0.30 0.50~0.81 0.44~0.65 ≤0.025 ≤0.025
SA-213T12 0.05~0.15 0.30~0.61 ≤0.50 0.80~1.25 0.44~0.65 ≤0.025 ≤0.025



Grade T(MPa) Y(MPa) E(%) Hardness
20G 410~550 245 ≥24 ---
20MnG ≥415 ≥240 ≥22 ---
25MnG ≥485 ≥275 ≥20 ---
12CrMoG 410~560 ≥205 ≥21 ---
15CrMoG 440~640 ≥235 ≥21 ---
SA-210C ≥415 ≥255 ≥30 ≤143HBW
SA-210A1 ≥485 ≥275 ≥30 ≤179HBW
SA-213T2 ≥415 ≥205 ≥30 ≤163HBW
SA-213T12 ≥415 ≥220 ≥30 ≤163HBW

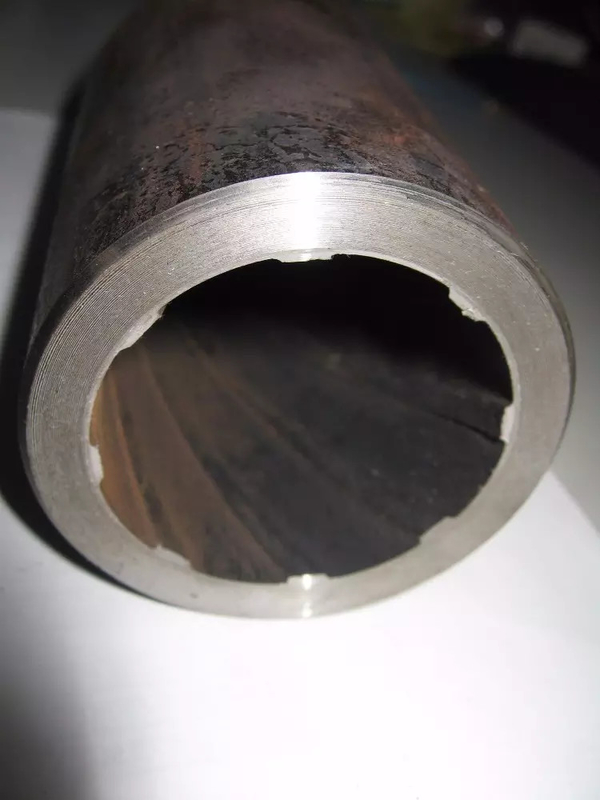

Od 63.5mm X Wt 13.5mm Rifled Heat Exchanger Tubes 0

Od 63.5mm X Wt 13.5mm Rifled Heat Exchanger Tubes 1
