High Pressure Cds Heat Exchanger Tubes Seamless Rifled 8mm Od
Basic Properties
Place of Origin:
Zhejiang,CN
Brand Name:
TORICH
Certification:
ISO 9001,ISO14001,TS16949
Model Number:
ASTM A210 GRADE C
Trading Properties
Minimum Order Quantity:
3 tons
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
50000 TONS PER YEAR
Product Summary
High Pressure Seamless Rifled Pipe Heat Exchanger Tubes Product Name: High Pressure Seamless Rifled Boiler Pipe/Ribbed Boiler Tube Material Carbon steel,Alloy steel Od: 21.3-762mm: Standard DIN GB ISO JIS BA ANSI Grade: 20G,20MnG,15CrMoG,SA210Gr.A1, SA210Gr.C, SA213T12, ASTM A335P11 P91,P22,16Mo3......
Product Details
Highlight:
8mm od heat exchanger tubes
,cds heat exchanger tubes
,8mm od cds tubing
Product Name:
High Pressure Seamless Rifled Pipe Heat Exchanger Tubes
Keyword:
Rifled Pipe
Shape:
Round
Application:
For Boiler And Heat Exchanger
Material:
ASTM A210 GRADE C
Surface:
CUSTOMIZED
Length:
Max 12000mm
Tube OD:
8-400mm
Fin Thickness:
5-100mm
Brand:
TORICH
Product Description
High Pressure Seamless Rifled Pipe Heat Exchanger Tubes
Product Name: High Pressure Seamless Rifled Boiler Pipe/Ribbed Boiler Tube
Material Carbon steel,Alloy steel
Od: 21.3-762mm: Standard
DIN GB ISO JIS BA ANSI
Grade: 20G,20MnG,15CrMoG,SA210Gr.A1, SA210Gr.C, SA213T12, ASTM A335P11 P91,P22,16Mo3.......
Wall thickness: 2.77-25.4mm
Length: 5.8/6/11.8/12mtr as required or random length
Thread No.: 4ribs/6ribs/8ribs/12ribs......
Surface treatment: Black painting, oiled or galvanized
Payment term; 30% TT advance
Price term: Fob,Cif, Cnf,Cfr
Delivery time: As order qty

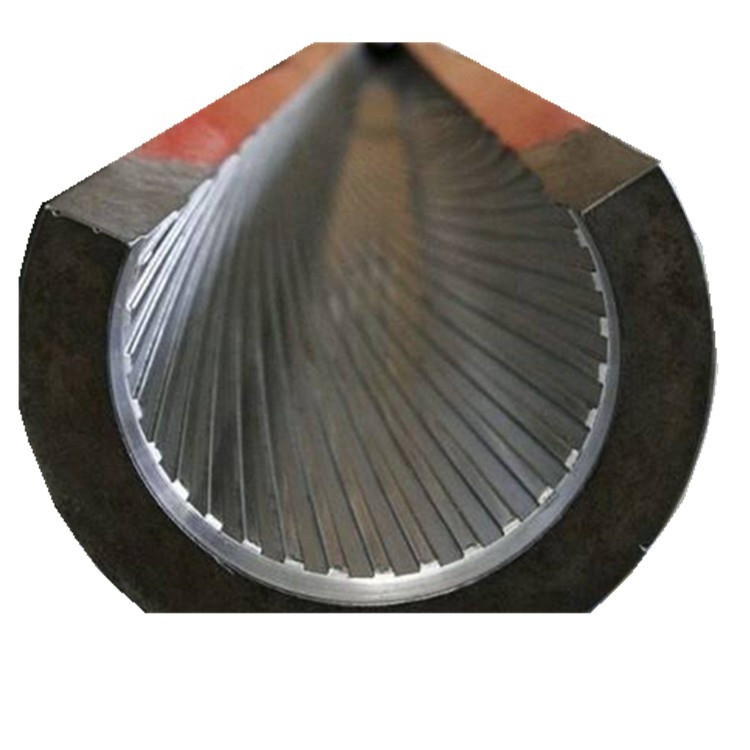

Internal Thread High pressure boiler Rifled tube is one kind of endophragm processes the spiral line the seamless steel pipe. Main application in on capacity utility boiler's water cooling wall. Usually with the fluorescent tube which uses compares, it can maintain the nuclear ebullition condition under the high fever load operating condition, thus avoids sending the filming condition ebullition, prevents the pipe to burn out, lengthens the pipe service life.
Chemical&Mechanical parameters
| Grade | C | Mn | Si | Cr | Mo | S | P |
| 20G | 0.17~0.23 | 0.35~0.65 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 20MnG | 0.17~0.23 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 25MnG | 0.22~0.29 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 12CrMoG | 0.08~0.15 | 0.40~0.70 | 0.17~0.37 | 0.40~0.70 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| 15CrMoG | 0.12~0.18 | 0.40~0.70 | 0.17~0.37 | 0.80~1.10 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| SA-210A1 | ≤0.27 | ≤0.93 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-210C | ≤0.35 | 0.29~1.06 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-213T2 | 0.10~0.20 | 0.30~0.61 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| SA-213T12 | 0.05~0.15 | 0.30~0.61 | ≤0.50 | 0.80~1.25 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| Grade | T(MPa) | Y(MPa) | E(%) | Hardness |
| 20G | 410~550 | 245 | ≥24 | --- |
| 20MnG | ≥415 | ≥240 | ≥22 | --- |
| 25MnG | ≥485 | ≥275 | ≥20 | --- |
| 12CrMoG | 410~560 | ≥205 | ≥21 | --- |
| 15CrMoG | 440~640 | ≥235 | ≥21 | --- |
| SA-210C | ≥415 | ≥255 | ≥30 | ≤143HBW |
| SA-210A1 | ≥485 | ≥275 | ≥30 | ≤179HBW |
| SA-213T2 | ≥415 | ≥205 | ≥30 | ≤163HBW |
| SA-213T12 | ≥415 | ≥220 | ≥30 | ≤163HBW |
