Torich Cold Drawn Tube Astm A179 / Asme Sa179 Sa192
Product Details
astm a179 cold drawn tube
,torich cold drawn tube
,asme sa179 cold drawn pipe
ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes
Quick detail :
| Origin | China |
| Brand name | Torich |
| Certificate | ISO9001 TS16949 |
| Material | ASTM A179 ASME SA179 SA192 ST52.3 St37..4 etc |
| Product name | ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes |
| Capacity | Bending |
Basic introduction
Size of sa 179 Heat Exchanger/Condenser Tubes:OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)
Production method of ASTM A179 Heat Exchanger Tubing:Cold drawing
Material :ASTM A179 ASME SA179 SA192 ST52.3 St37..4 etc
Shape :Round Omega etc
Production Description
ASTM A179 / ASME SA179 SA 192 Chemical composition as below:
Steel Grade and Chemical Compositions:
| C | 0.06-0.18 |
| Mn | 0.27-0.63 |
| P | ≤0.035 |
| S | ≤0.035 |
| Si | ≤0.25 |
ASTM A179 / ASME SA179 SA192 Exchanger steel tubes Mechanical Properties
Tensil Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%
Boiler
Pressure Vessel
Economizer
Superheater
Heat-Exchanger
Condenser
Feature:
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)

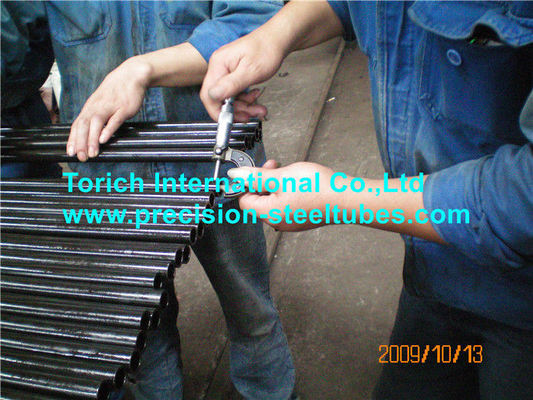

Product show:
Packaging:Wooden cases or according to client’s requirements
Shipping: Land transportation/Ocean transportation
