Erw Automotive Steel Tubes JIS-G 3445 EN 10305-3 STKM11 STKM12 Supporting Auto Seat Headrest
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001
Model Number:
STKM11,STKM12
Trading Properties
Minimum Order Quantity:
5tons
Price:
negotiation
Payment Terms:
L/C, T/T
Supply Ability:
2000tons per year
Product Summary
JIS-G 3445,EN 10305-3 STKM11,STKM12 Supporting Auto Seat Headrest Pipe Quick detail : Origin China Brand name Torich Certificate ISO9001 TS16949 Material STKM11,STKM12,STKM13, E195,E235,E355,etc. Product name JIS-G 3445,EN 10305-3 STKM11,STKM12 Supporting Auto Seat Headrest Pipe Capacity Bending, ...
Product Details
Highlight:
erw automotive steel tubes
,supporting seat headrest automotive steel tubes
Alloy Or Not:
Non-alloy
Technique:
ERW
Thickness:
1-2mm
Standard:
ASTM
Surface Treatment:
Oiled
Section Shape:
Square And Rectangular,Round
Secondary Or Not:
Non-secondary
Usage:
Auto Parts
Product Description
JIS-G 3445,EN 10305-3 STKM11,STKM12 Supporting Auto Seat Headrest Pipe
Quick detail :
| Origin | China |
| Brand name | Torich |
| Certificate | ISO9001 TS16949 |
| Material | STKM11,STKM12,STKM13, E195,E235,E355,etc. |
| Product name | JIS-G 3445,EN 10305-3 STKM11,STKM12 Supporting Auto Seat Headrest Pipe |
| Capacity | Bending, Holing,Charmfering |
Basic introduction
Production method:ERW ,Bending
Material of auto seat headrest pipe:
STKM11,STKM12,STKM13, E195,E235,E355,St37.2etc.
Shape of auto seat headrest pipe :Round Square,Rectangle etc
Size :12.7±0.1
Thickness/mm:1.5
Yield Strength:≥215Mpa
Tensile Strength:360-510Mpa
EL:≥20%
Premium Brand :General Motors, Volkswagen, BMW, Hyundai, Chevrolet, Buick, Daewoo, also
Chinese brand Changchun FAW, great wall, Geely, Chang'an
What we can do :
Bending ,Digging hole,CNC machinging.
Application:
Auto Seat Headrest Pipe
Feature:
1.High precision steel tubes
2.Quick delivery time
3.Machinng service
4.Price is nice

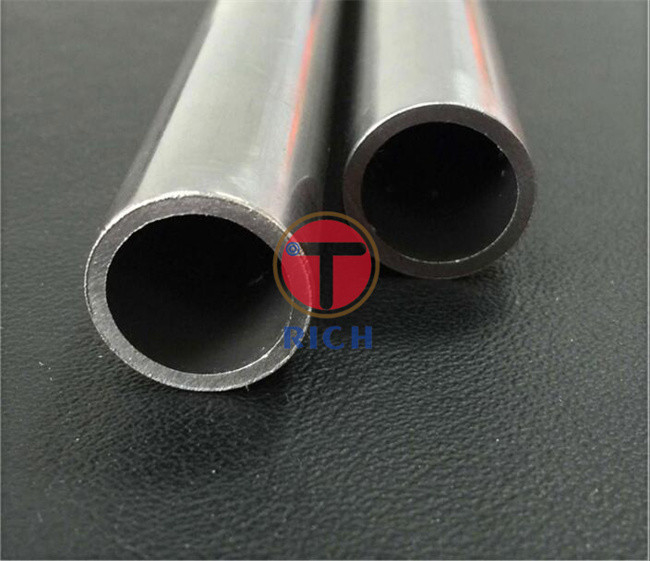

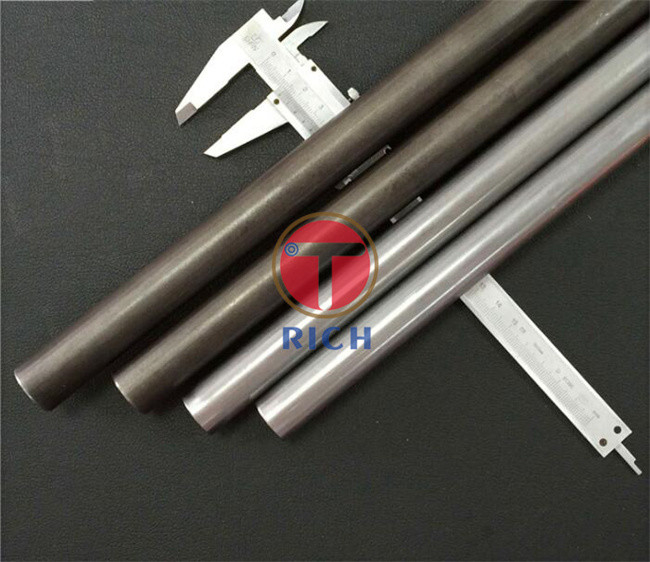

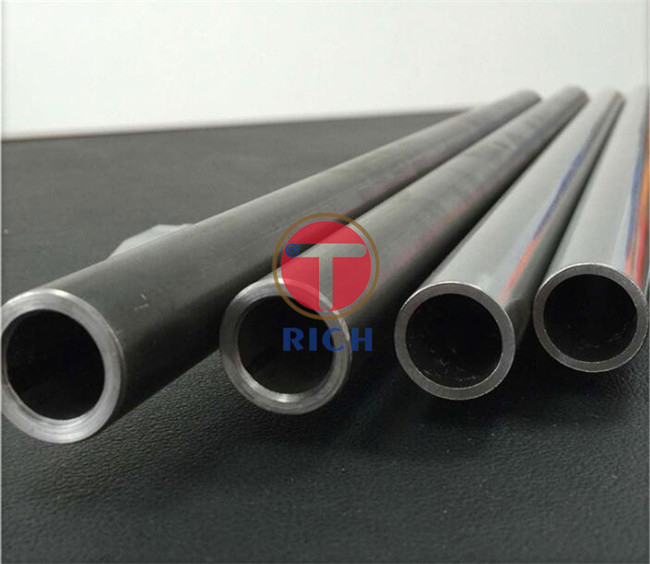

Product show:
Packaging:Wooden cases or according to client’s requirements
Shipping: Land transportation/Ocean transportation
Equipments:
