EN 10305-2 34MnB5 ERW Welded Cold Drawn Precision steel Tubes For Automotive Industry
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 2Ton | Packaging Details : | PACKING WOODEN CASE |
|---|---|---|---|
| Delivery Time : | 30-45 | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 500000Ton per years |
| Place of Origin: | China | Brand Name: | Torich |
|---|---|---|---|
| Certification: | ISO9001 |
|
Detail Information |
|||
| Application: | Boiler | Outer Diameter: | 10 - 610 Mm |
|---|---|---|---|
| Surface Treatment: | Oiled,as Specail Requirements | Thickness: | 0.5 - 50 Mm |
| High Light: | t11 precision steel tube,sa213 precision steel tube,cold drawn seamless steel boiler pipe |
||
Product Description
SA213 T11 Cold Drawn Seamless Heat Exchanger Boiler Tube
Production Method:
Carbon Steel Seamless Heat Exchanger Boiler Tubeis a kind of boiler pipe, which belongs
to the category of seamless steel pipe. The
manufacturing method is the same as that of seamless pipe, but there are strict requirements
for the steel Grade
used in the manufacture of steel pipe. pressure cooker
Furnace seamless tubes are often in high temperature and high pressure conditions when
used. The tubes will ndergo oxidation and corrosion under the action of high temperature
flue gas and steam. The steel pipe is required to have high lasting strength, high anti-oxidation
and corrosion performance and good structural stability. High pressure
boiler tubes are mainly used to manufacture superheater tubes, reheater tubes, air ducts,
main steam tubes, etc.of high-pressure and ultra-high-pressure boilers.
1.Chemical components:
| C | Mn | P≤ | S≤ | Si | Cr | Mo | |
| T5 | ≤0.15 | 0.3-0.6 | 0.025 | 0.025 | ≤0.5 | 4-6 | 0.45-0.65 |
| T11 | 0.05-0.15 | 0.3-0.6 | 0.025 | 0.025 | 0.5-1 | 1-1.5 | 0.44-0.65 |
| T12 | 0.05-0.15 | 0.3-0.61 | 0.025 | 0.025 | ≤0.5 | 0.8-1.25 | 0.44-0.65 |
| T22 | 0.05-0.15 | 0.3-0.6 | 0.025 | 0.025 | ≤0.5 | 1.9-2.6 | 0.87-1.13 |
2.Mechanical Properties:
| Tensile Strength | Yield Strength | Elongnation | |
| T12 | 415 MPa | 220 MPa | 30% |
| T5 | 415 MPa | 205 MPa | 30% |
| T11 | 415 MPa | 205 MPa | 30% |
| T22 | 415 MPa | 205 MPa | 30% |
Production Process for Carbon Steel Seamless Heat Exchanger Boiler Tube:
Round Steel Billet →
Hot Piercing →
Hollow Section Tubes →
Pickling/Lubrication →
Cold Drawing/Cold Rolling →
Heat Treatment Annealing/Bright Annealing → (Repeat)
Cold Drawing/Cold Rolling → (Repeat) to final dimension and tolerances
Final Heat Treatment of Annealing/Bright Annealing
Main Features for TORICH Carbon Steel Seamless Heat Exchanger Boiler Tube
1. Seamless steel pipe is light and its weight is only 1 / 5 of that of square steel.
2. Seamless steel pipe has corrosion resistance, acid, alkali, salt and atmospheric corrosion resistance
high temperature resistance, good impact and fatigue resistance, no regular maintenance, and the
effective service life can reach more than 15 years.

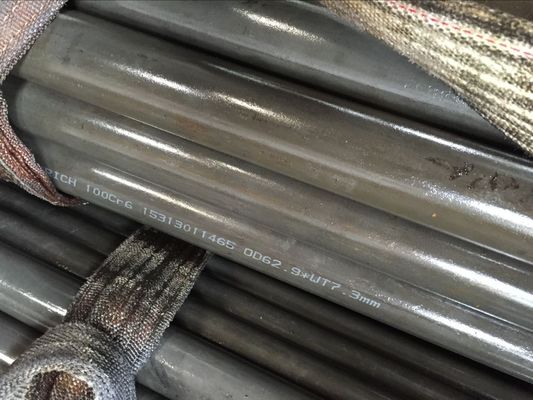

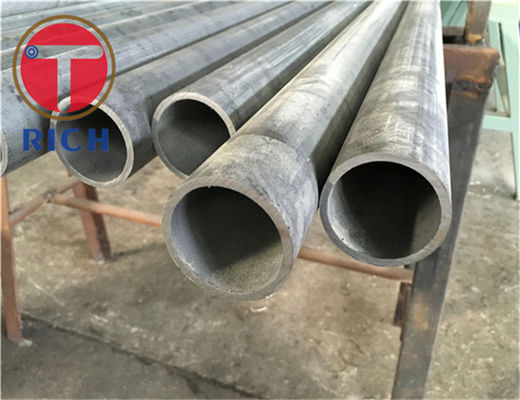

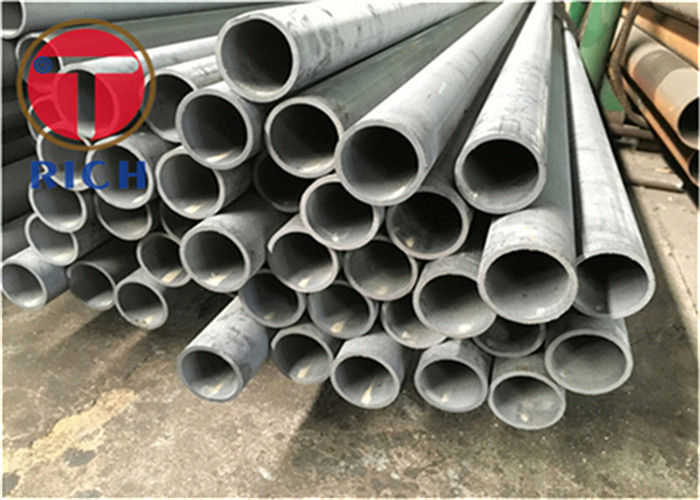

Products Show from mass production:
