Cold Drawn 20# Precision Steel Tube Seamless

Contact Now

Cold Drawn 20# Precision Steel Tube Seamless

Minimum Order Quantity :	2Ton	Packaging Details :	PACKING WOODEN CASE
Payment Terms :	D/A, D/P, Western Union, MoneyGram

Place of Origin:	China	Brand Name:	Torich
Certification:	ISO9001

Detail Information
Application:	Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OI	Section Shape:	Round
Outer Diameter:	20mm, 13.7mm-1219.2 Mm	Thickness:	2.24 - 45.24 Mm
High Light:	20# precision steel tube , cold drawn precision steel tube , cold drawn seamless precision tube

Product Description

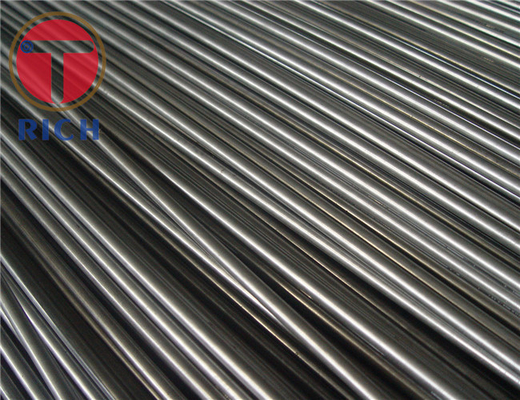

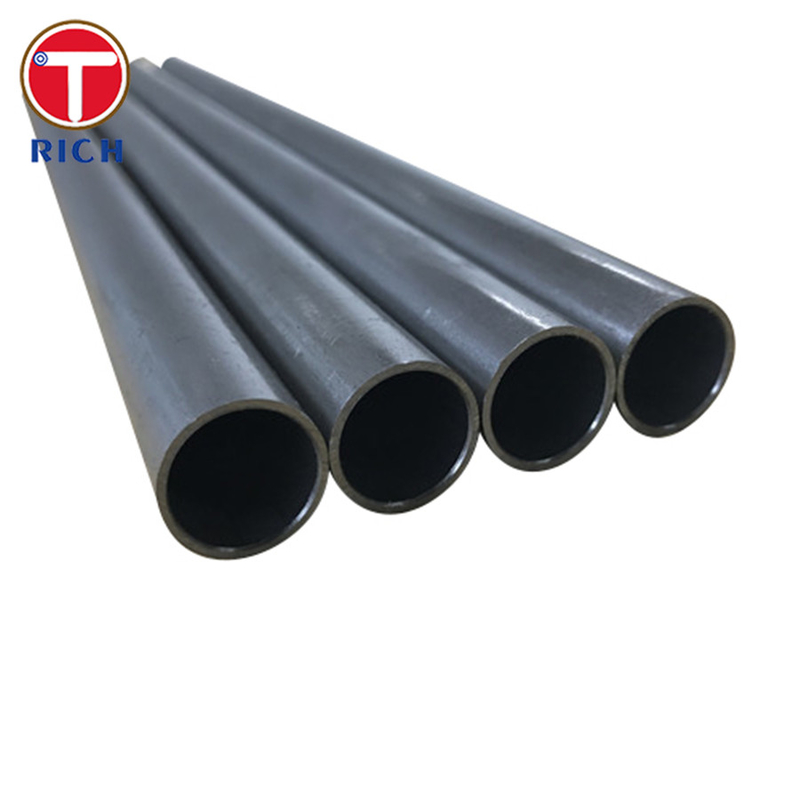

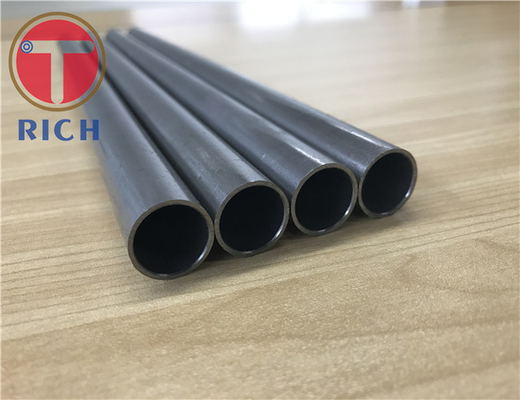

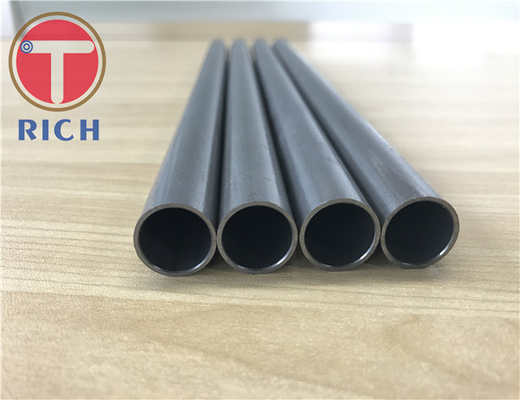

Cold Drawn 20# carbon small diameter precision seamless steel tube

Precision seamless steel pipe is a kind of high-precision steel pipe

processed by cold rolling or cold drawing; full name: cold-rolled precision

seamless steel pipe Since the inner and outer walls of precision seamless

steel pipes have no oxide layer, bear high pressure without leakage, high

precision, high smoothness, cold bending without deformation, flaring,

flattening without cracks, etc., they are mainly used to produce pneumatic

or hydraulic components, such as Cylinders or oil cylinders are made of

seamless pipes

Product name	Material	Standard	Size(mm)	Application
Low temperature tube	16MnDG 10MnDG 09DG 09Mn2VDG 06Ni3MoDG ASTM A333	GB/T18984- 2003 ASTM A333	OD:8-1240* WT:1-200	Apply to - 45 ℃ ~ 195 ℃ low temperature pressure vessel and low temperature heat exchanger pipe
High-pressure boiler tube	20G ASTMA106B ASTMA210A ST45.8-III	GB5310-1995 ASTM SA106 ASTM SA210 DIN17175-79	OD:8-1240* WT:1-200	Suitable for manufacturing high pressure boiler tube, header, steam pipe, etc
Petroleum cracking tube	10 20	GB9948-2006	OD: 8-630* WT:1-60	Used in oil refinery furnace tube, heat exchanger tube
Low medium pressure boiler tube	10# 20# 16Mn,Q345	GB3087-2008	OD:8-1240* WT:1-200	Suitable for manufacturing various structure of low and medium pressure boiler and locomotive boiler
General structure of the tube	10#,20#,45#,27SiMn ASTM A53A,B 16Mn,Q345	GB/T8162- 2008 GB/T17396- 1998 ASTM A53	OD:8-1240* WT:1-200	Apply to the general structure, engineering support, mechanical processing, etc
Oil casing	J55,K55,N80,L80 C90,C95,P110	API SPEC 5CT ISO11960	OD:60-508* WT:4.24-16.13	Used for extraction of oil or gas in oil Wells casing, used in oil and gas well sidewall

Chemical Composition(%):
Standard	Steel Grade	C	Si	Mn	P	S
BS6323-4	CFS3	≤0.20	≤0.35	≤0.9	≤0.050	≤0.050
	CFS4	≤0.25	≤0.35	≤1.20	≤0.050	≤0.050
	CFS5	≤0.23	≤0.50	≤1.50	≤0.050	≤0.050
	CFS8	0.40-0.55	≤0.35	0.50-0.90	≤0.050	≤0.050
ASTM A519	SAE 1010	0.08-0.13	/	0.30-0.60	≤0.04	≤0.05
	SAE 1020	0.18-0.23	/	0.30-0.60	≤0.04	≤0.05
	SAE1045	0.43-0.50	/	0.60-0.90	≤0.04	≤0.05
JIS G3445	STKM11A	≤0.12	≤0.35	≤0.60	≤0.040	≤0.040
JIS G3445	STKM13A	≤0.25	≤0.35	0.30-0.90	≤0.040	≤0.040
