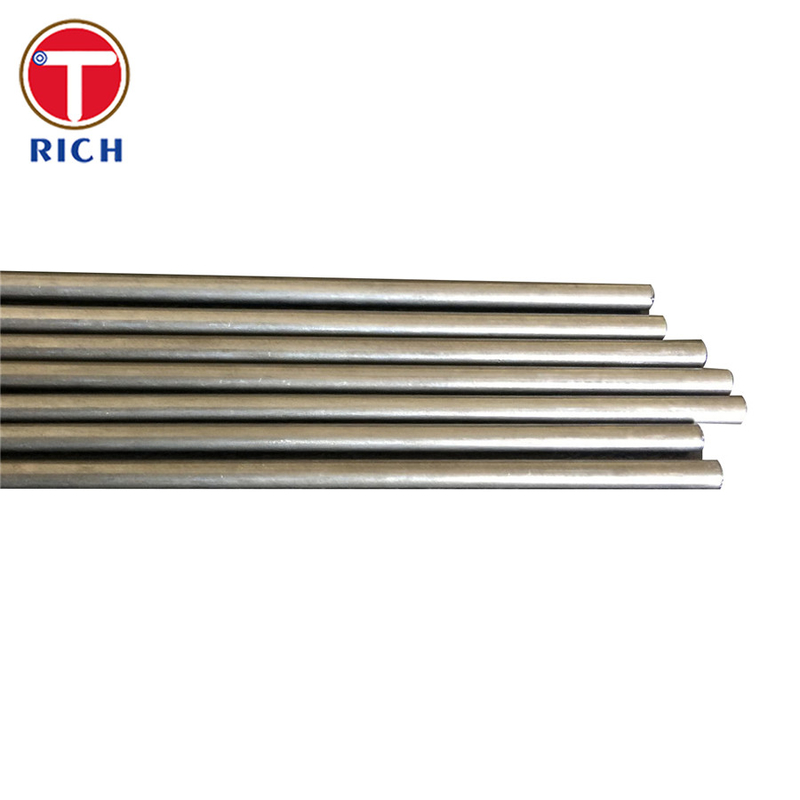

En 10305 4.0X0.7 Small Diameter CDW Precision Steel Tube Plain End For Fuel Injection Nozzle

En 10305 4.0X0.7 Small Diameter CDW Precision Steel Tube Plain End For Fuel Injection Nozzle

Brand Name:	Torich
Model Number:	EN 10305-1
MOQ:	1 tons
Price:	Negotiation
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	60000tons per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

IS09001 ISO14001 TS16949

Material:

Carbon Steel

Size:

3-400mm

End:

Plain

Origin:

China

Certification:

ISO9001-2008

Technique:

Cold Drawn,Hot Rolled,Cold Rolled

Application:

Hydraulic Pipe

Grade:

10#

Alloy Or Not:

Non-alloy

Packaging Details:

In bundles

Supply Ability:

60000tons per year

Highlight:

cdw precision steel tube

small precision steel tube

en 10305 precision steel tube

Product Description

En 10305 4.0X0.7 Small Diameter CDW Precision Steel Tube Plain End For Fuel Injection Nozzle

Quick detail :

Origin	China
Brand name	Torich
Certificate	ISO9001 TS16949
Material	Carbon steel 1020,1010,1045,4130,4140,38CrMoAl,20Cr etc
Product name	EN 10305 Small Cdw Tube Cold Draw Seamless Welded Diameter Steel Tube For Precision Applications
Capacity	Cold drawing,Cold rolled

Basic introduction

Size range of CDW Tube :3-400mm

Production method: Cold drawing,Cold rolled

Steel Grade and Chemical Compositions:

Steel Grade		C	Si	Mn	P	S	Al
Steel Name	Steel Number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-
St 30Si		0.10	0.30	0.55	0.04	0.04
St30Al		0.10	0.05	0.55	0.04	0.04
St35		0.17	0.35	0.4	0.05	0.05
St45		0.21	0.35	0.4	0.05	0.05
St52		0.22	0.55	1.6	0.05	0.05

Delivery condition of CDW Precision Steel Tube :

NBK (+N) Normalized. (Mainly focus on) After the final cold forming process the tubes are annealed above the upper

transformation point in a controlled atmosphere

Other conditions as per standard En10305.

BK (+C) Cold finished/hard (cold finished as drawn) No heat treatment after the last cold forming process.

BKW (+LC) Cold finished/soft (lightly cold worked)

After the last heat treatment there is a light finishing pass (cold drawing).

BKS (+SR) Cold finished/stress relieve annealed. After the final cold forming process the tubes are stress relieve

annealed.

GBK (+A) Annealed After the final cold forming process the tubes are annealed in a controlled atmosphere

Test of EN 10305 Small Diameter Steel Tube:

Chemical Composition Testing

Impact Testing

Hardness Testing

Tensile Strength Testing

ET & UT testing

Application of seamless precision tube:

Hydraulic System

Fuel Injection Nozzle

Feature:

1. High precision tolerance of outer diameter and inner diameter
2. Good concentricity
3. Good mechanical properties
4. Machining of cutting, threading and chamfering can be provided

What we do on production.

1.We adopt special techniques and special skills in the acid cleaning process to deal with the place where

it is easy to form fold crevice;

2.Well organized process,especially annealing treatment in a severely technical manner;

3.In respect with lubrication, we adopt the international advanced level treating process in the world, and put

the surface quality of our products under strict control in order to prevent causing surface crack.

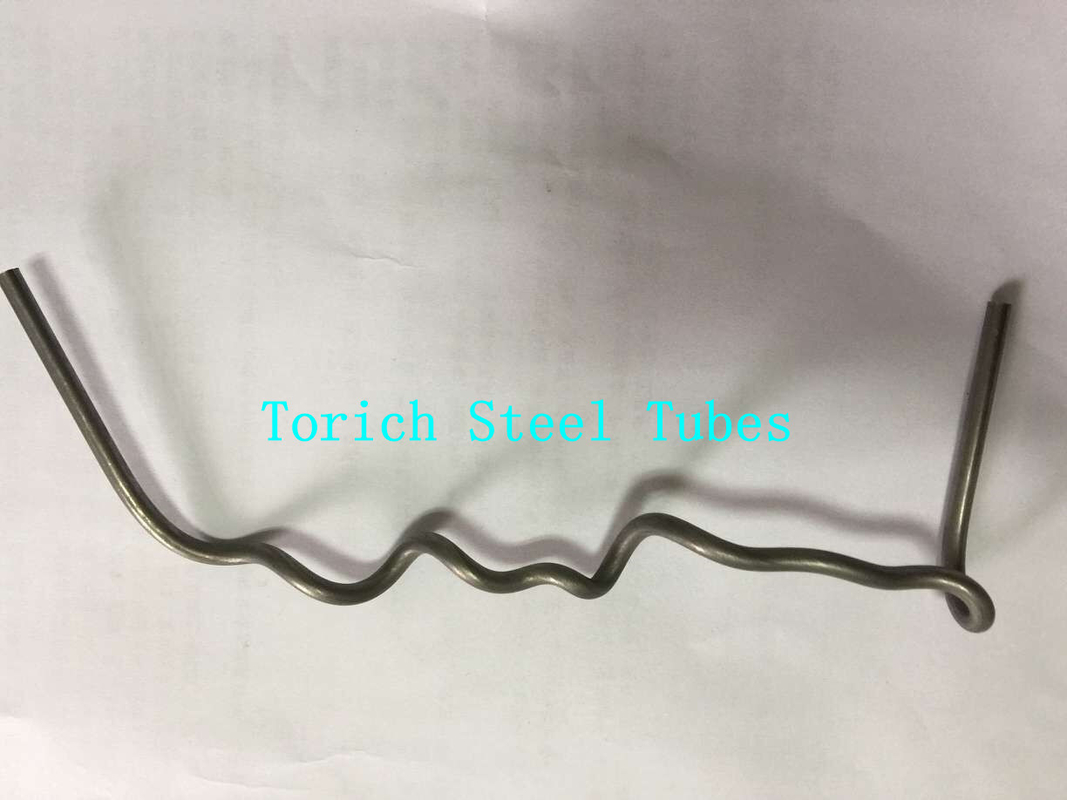

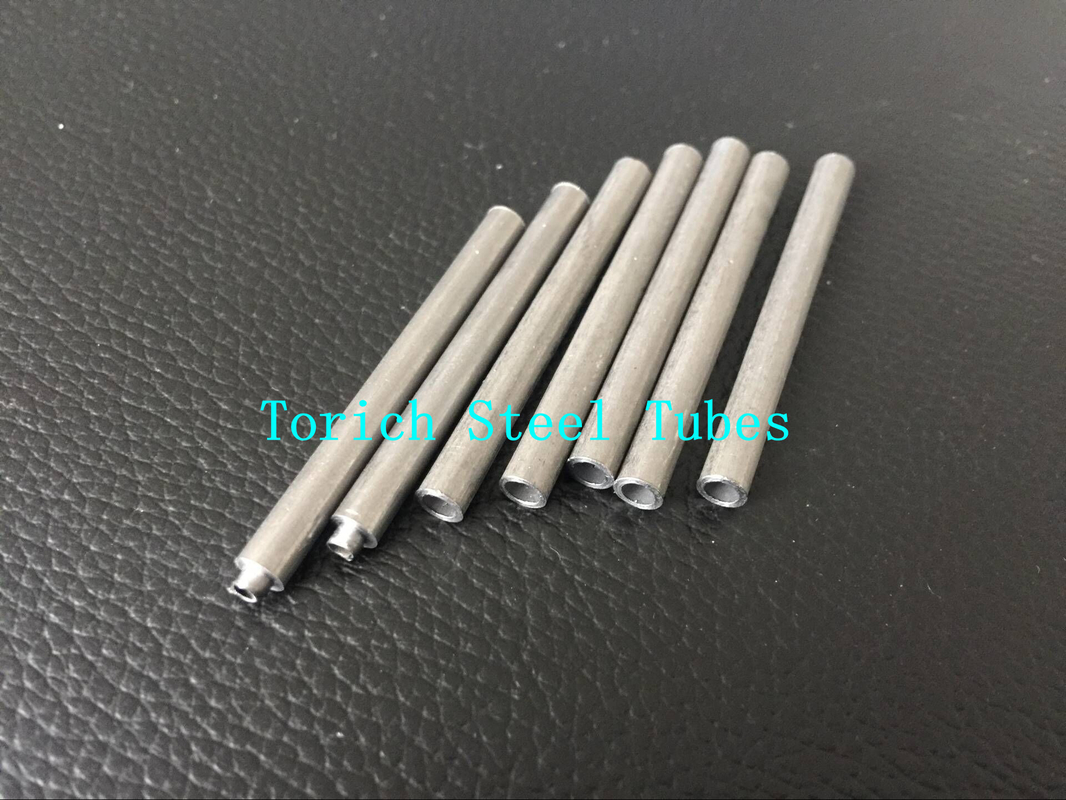

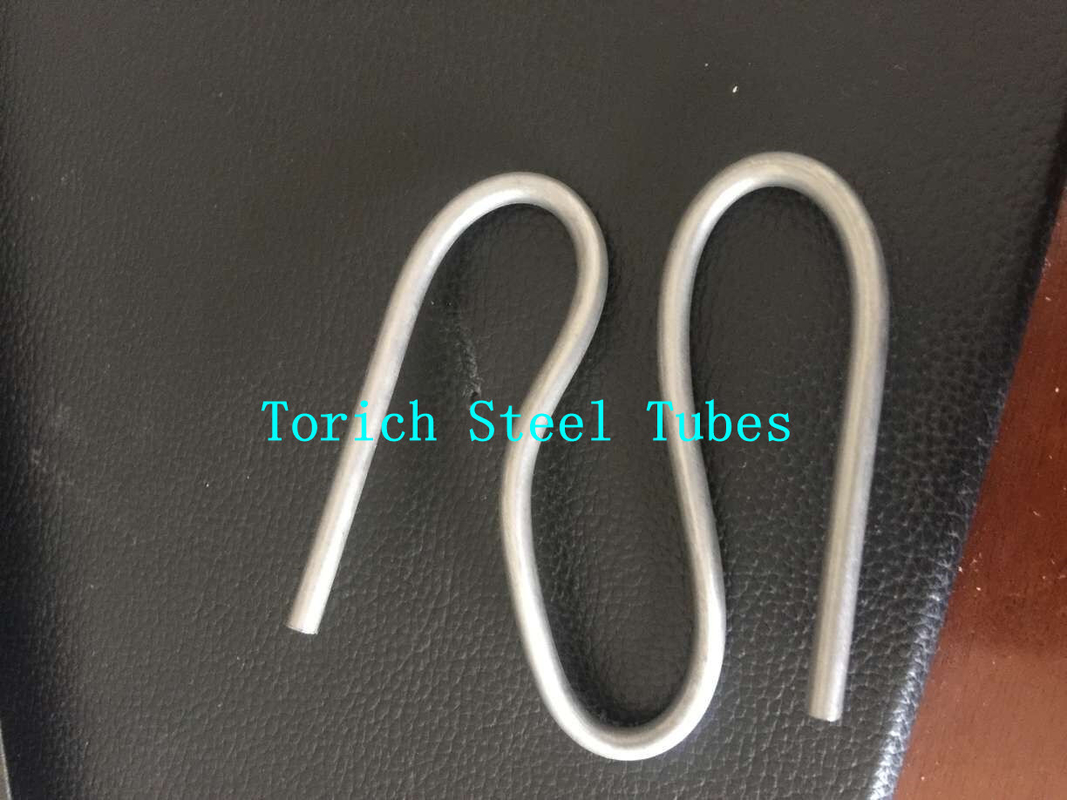

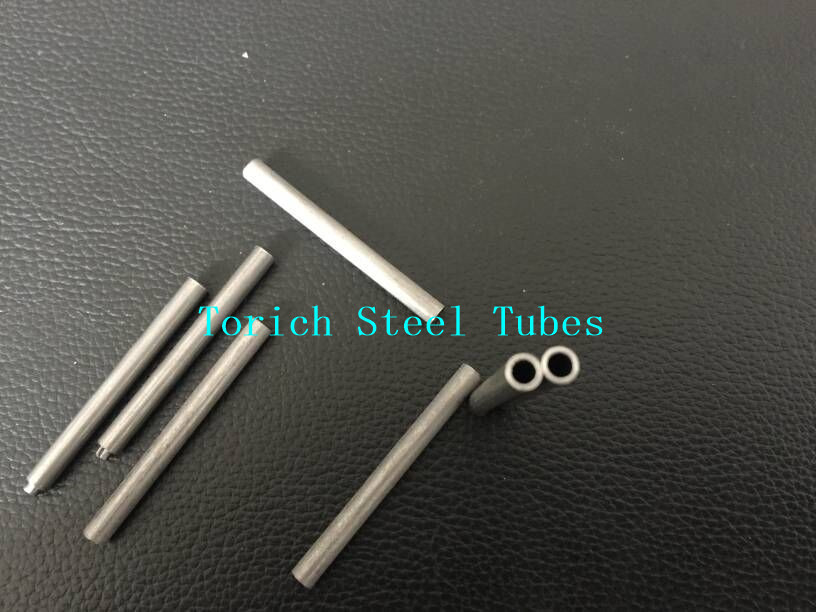

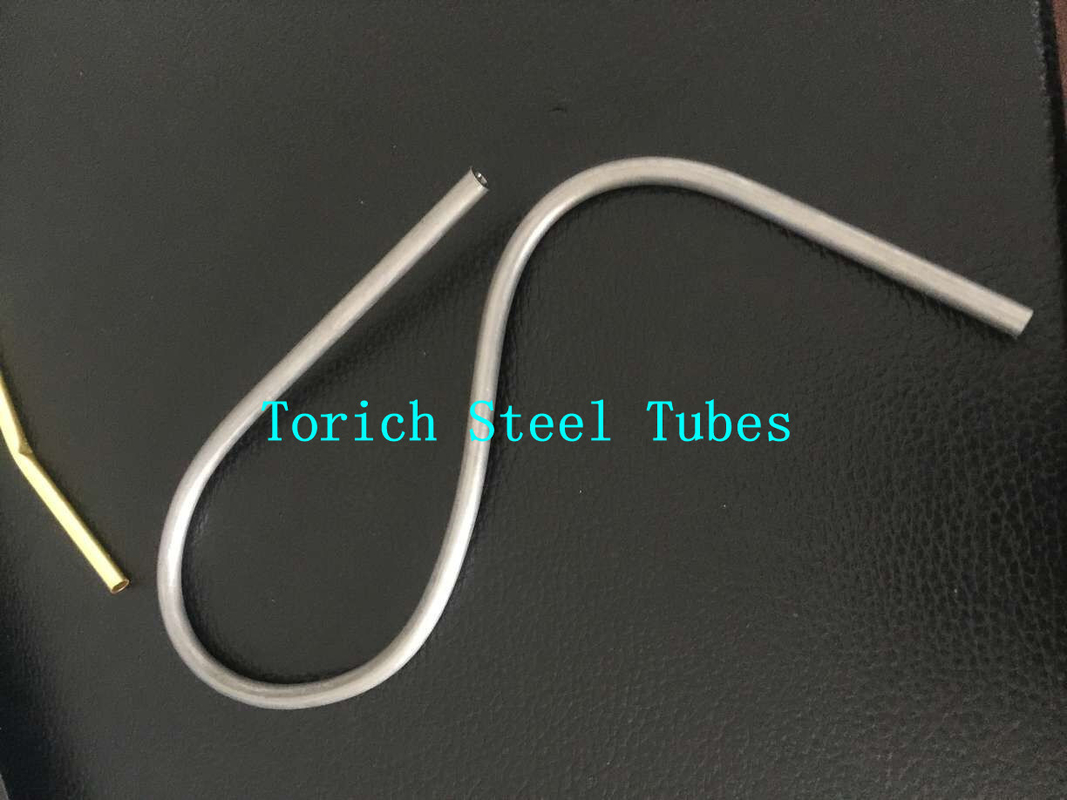

Product show:

En 10305 4.0X0.7 Small Diameter CDW Precision Steel Tube Plain End For Fuel Injection Nozzle 0

Packaging:Bundles or according to client’s requirements

Shipping: Land transportation/Ocean transportation

Equipments:

En 10305 4.0X0.7 Small Diameter CDW Precision Steel Tube Plain End For Fuel Injection Nozzle 2
