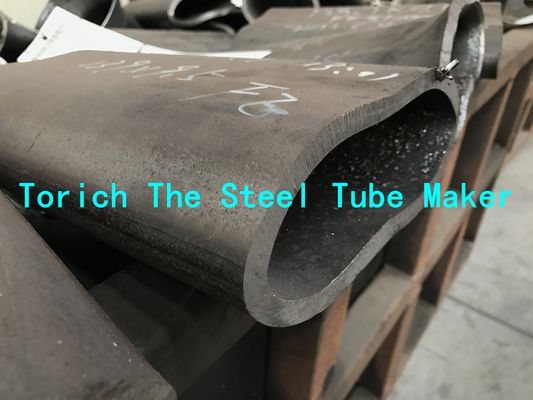

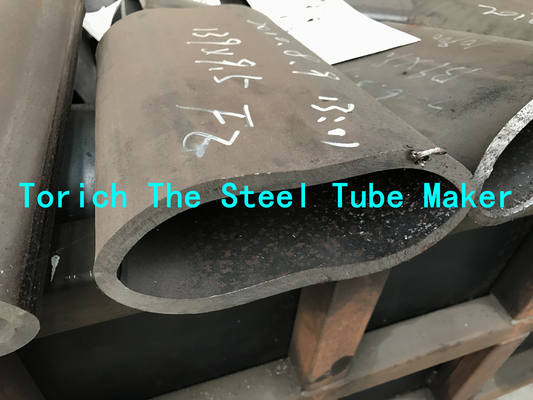

61X50 DIN2393 ST52-3 DOM Steel Tube For Hydraulic Telescobic Cylinder
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001 TS 16949
Model Number:
DIN2393
Trading Properties
Minimum Order Quantity:
2tons
Price:
negotiation
Payment Terms:
L/C, T/T
Supply Ability:
5000tons per year
Product Summary
61X50 DIN2393 ST52-3 DOM steel tubes for hydraulic telescobic cylinder Quick detail Material :1020 St52-3 Q345B Size : 63*52 80*68 98*85 116*103 135*121 154.5*140 175*159.5 197*180 220*202mm Tolerance of OD: (+1.2/1.8mm) Tolerance of ID:(0,-0.2mm) Length :as per your requests. Straightness ≤0.3...
Product Details
Highlight:
Hydraulic Telescobic Cylinder DOM Steel Tube
,ST52-3 DOM Steel Tube
,Precision Dom Mechanical Tubing
Technique:
Cold Drawn
Thickness:
1 - 60 Mm
Application:
Hydraulic Pipe
Standard:
ASTM
Section Shape:
Round
Alloy Or Not:
Non-alloy
Secondary Or Not:
Non-secondary
Outer Diameter(Round):
30 - 250 Mm
Length:
According To Customers' Requests
Shape:
Round
Product Description
61X50 DIN2393 ST52-3 DOM steel tubes for hydraulic telescobic cylinder
Quick detail
Material :1020 St52-3 Q345B
Size :
63*52
80*68
98*85
116*103
135*121
154.5*140
175*159.5
197*180
220*202mm
Tolerance of OD: (+1.2/1.8mm)
Tolerance of ID:(0,-0.2mm)
Length :as per your requests.
Straightness ≤0.3/1000mm
oval tube ≤0.1
Tensile resistance ≥640MPa
Yield ≥550Mpa
Elongation ≥12%
Hardness 80-100HRB -20℃ 27J 100% Ultrasonic flaw detection
St52-3 steel plate Chemical analysis
| Chemical elements | C≤ 16mm max | C>16mm max | Si max | Mn max | P max. | S max. |
| %,by mass | 0.24 | 0.24 | 0.55 | 1.60 | 0.045 | 0.045 |
Feature:
High tolerance
Good surface
High performance on Mechanical properties
Quick delivery time
